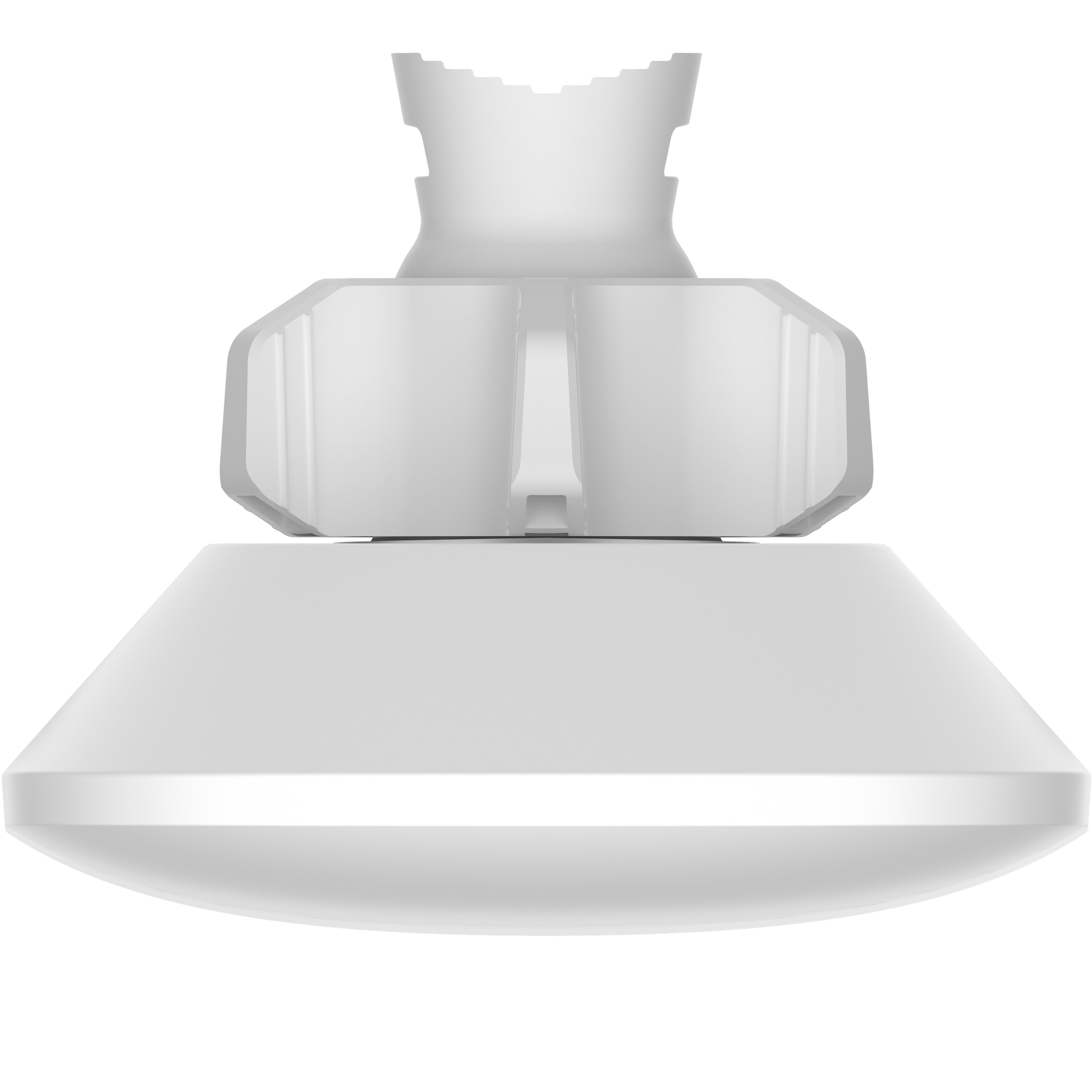

CPE5

5 GHz CPE with 16 dBi Built-in Antenna
  • 5 GHz wireless bridge delivering up to 867 Mbps wireless throughput
  • Built-in 16 dBi high-gain directional antenna for stable long-distance links
  • Supports point-to-multipoint (PTMP) connections with up to 5 CPEs via TDMA
  • Reliable long-distance transmission up to 5 km (3.11 miles)

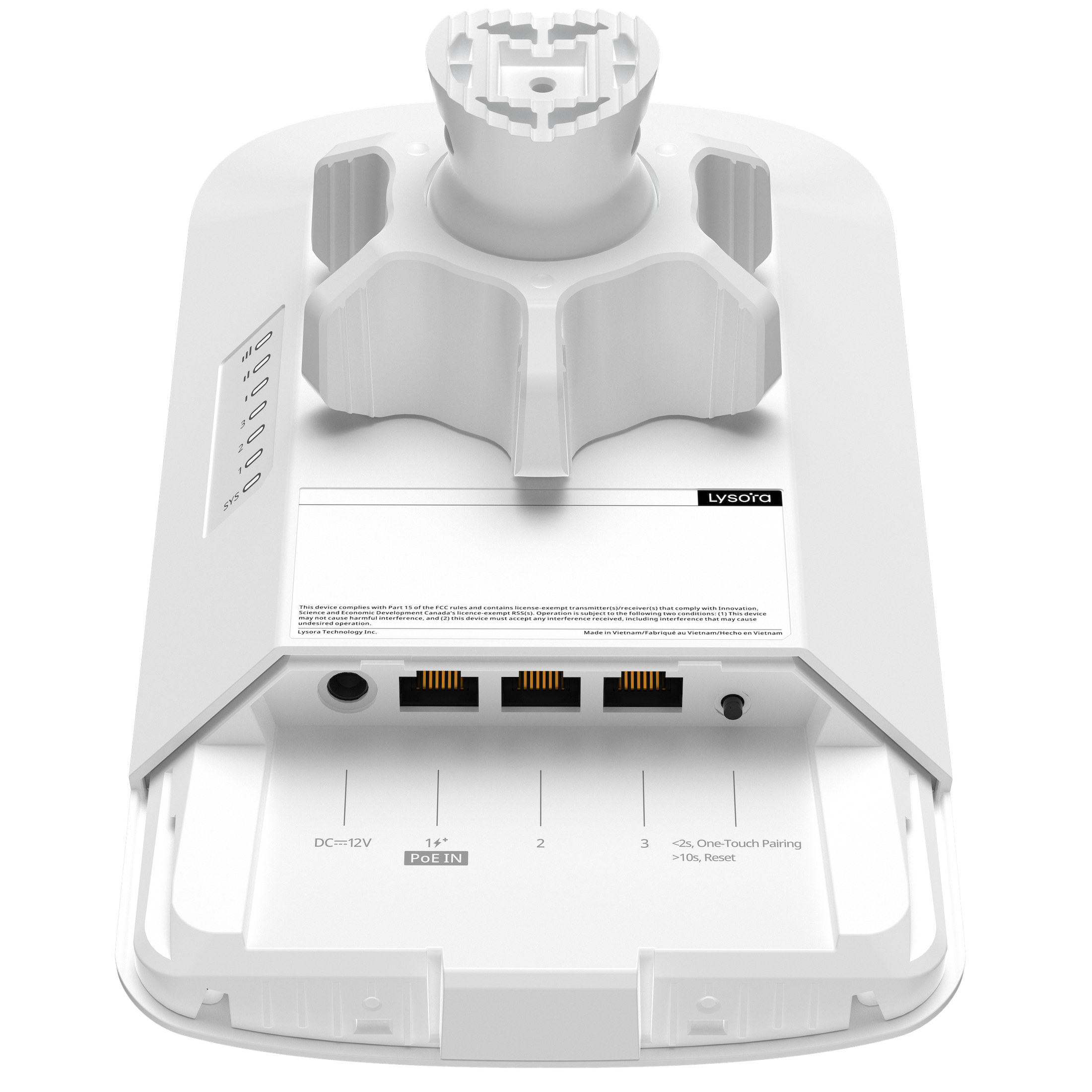

  • Three Gigabit Ethernet ports for flexible wired connectivity
  • IP55 weatherproof design for outdoor deployments
  • Web and Lysora Cloud management supported
Technical
Overview
Dimensions
240 mm x 133mm x 108 mm (9.45 in. x 5.24 in. x 4.25 in.) (excluding mounting bracket)
Weight
0.56 kg (1.24 lbs) (without packaging materials)
2.55 kg (5.62 lbs) (with packaging materials)
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac
Spatial Streams
3
Coverage Area
5 km (3.11 miles)

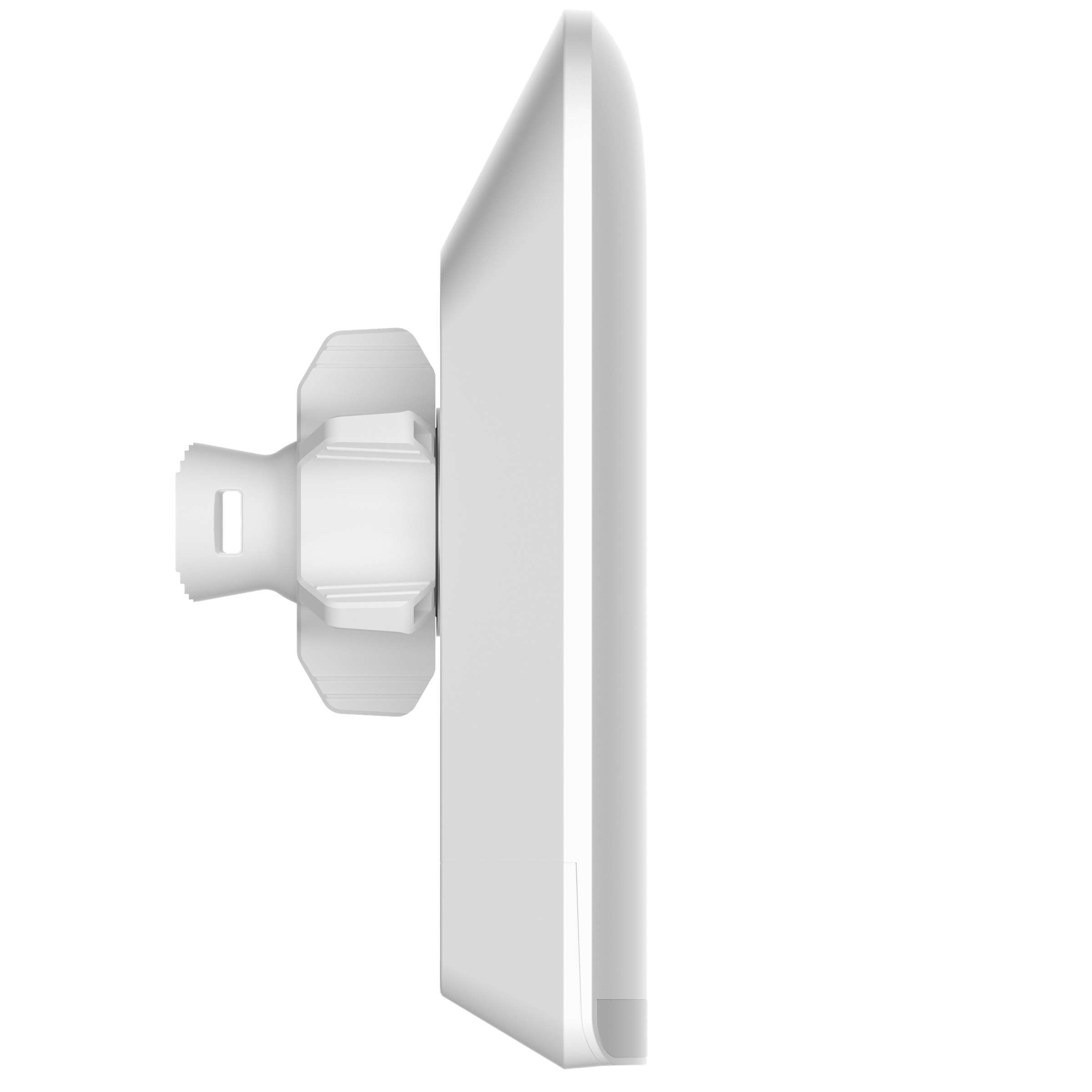

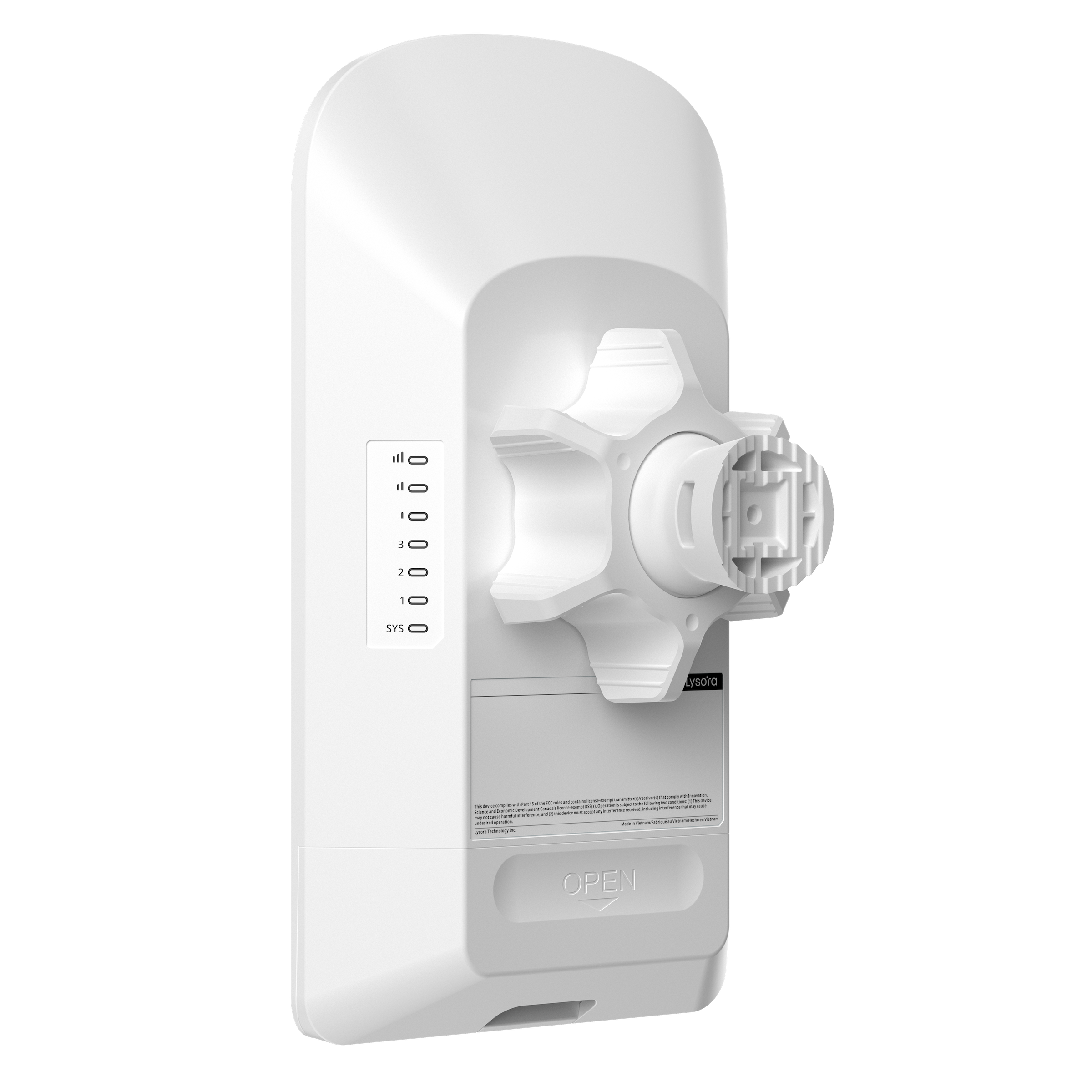

Mounting Type
Wall/Pole
Hardware
CPU
Dual-core processor, 880 MHz clock frequency per core
Flash Memory
16 MB
RAM
128 MB

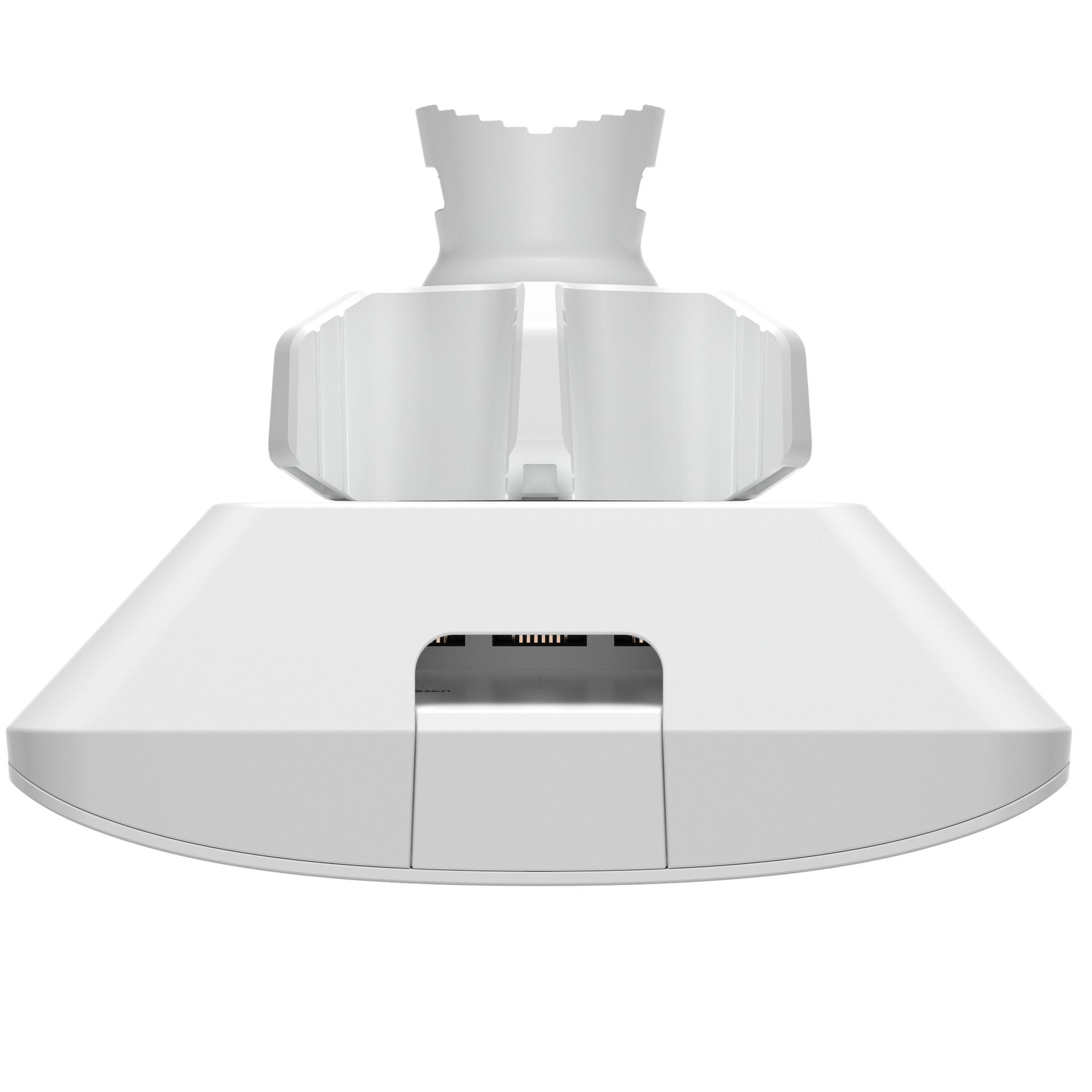

Networking Interface
3 x 10/100/1000BASE-T ports
Wi-Fi Protocols
2.4 GHz: IEEE 802.11 b/g/n
5 GHz: IEEE 802.11 a/n/ac
MIMO
2.4 GHz: 1 x 1 SISO
5 GHz: 2 x 2 MIMO
Channel bandwidth
2.4 GHz: 20/40 MHz
5 GHz: 20/40/80 MHz
Wreless Data Rate
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Antenna Gain
2.4 GHz: 2 dBi
5 GHz: 16 dBi
Antenna horizontal orientation
31°
Antenna vertical orientation
14°
Max. Transmit Power
2.4 GHz: 20 dBm
5 GHz: 29 dBm
Power Consumption
≤ 12 W
Power Method
DC power adapter (24 V, 0.6 A) (adapter included)
24 V Passive PoE injector (injector included)
DC power adapter (12 V, 1 A)
PoE/PoE+
PoE Power Pins
1-2 (+), 3-6 (-);4-5 (+), 7-8 (-)
PoE Budget
-
Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Receiver Sensitivity
802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps）
802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65dBm@MCS15
802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)

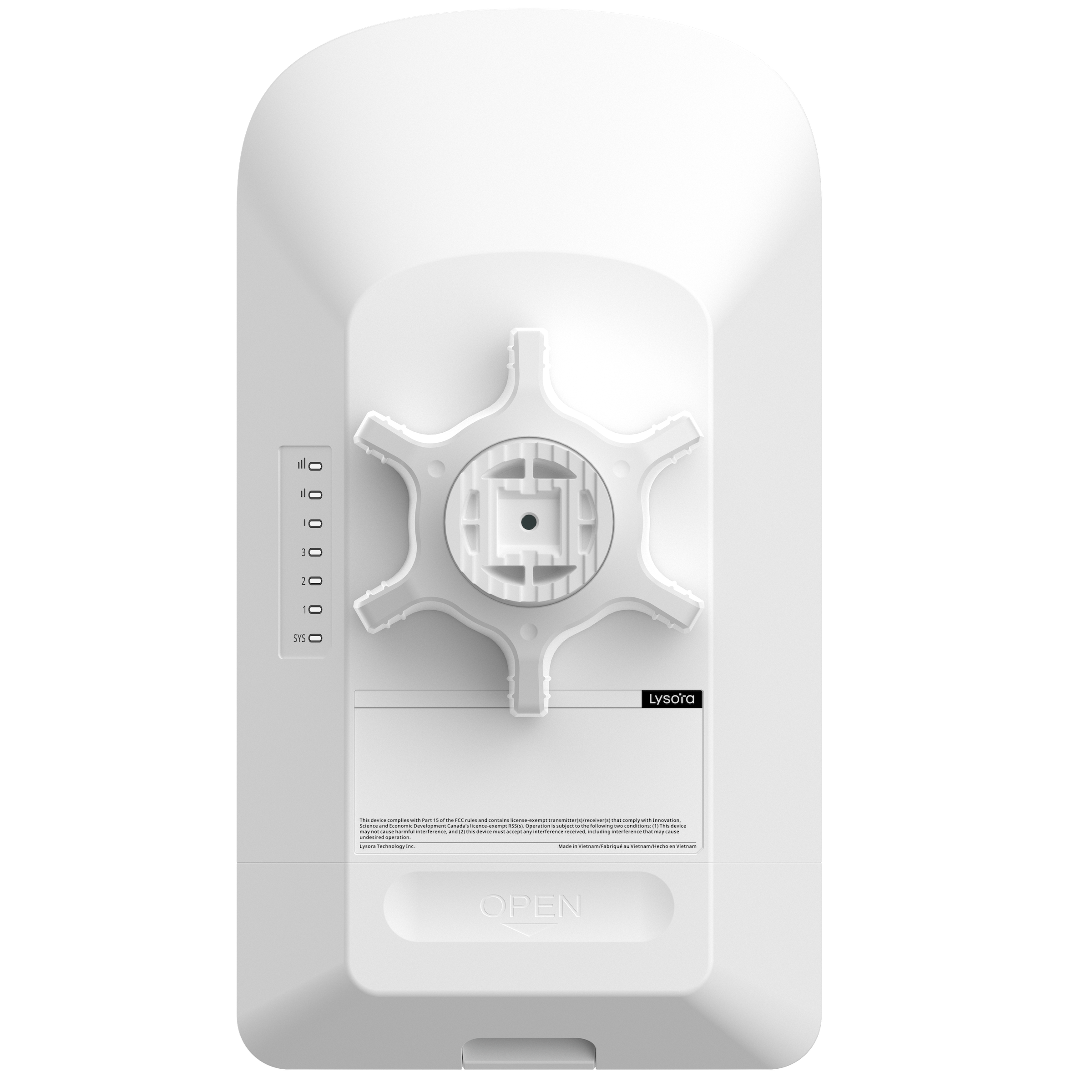

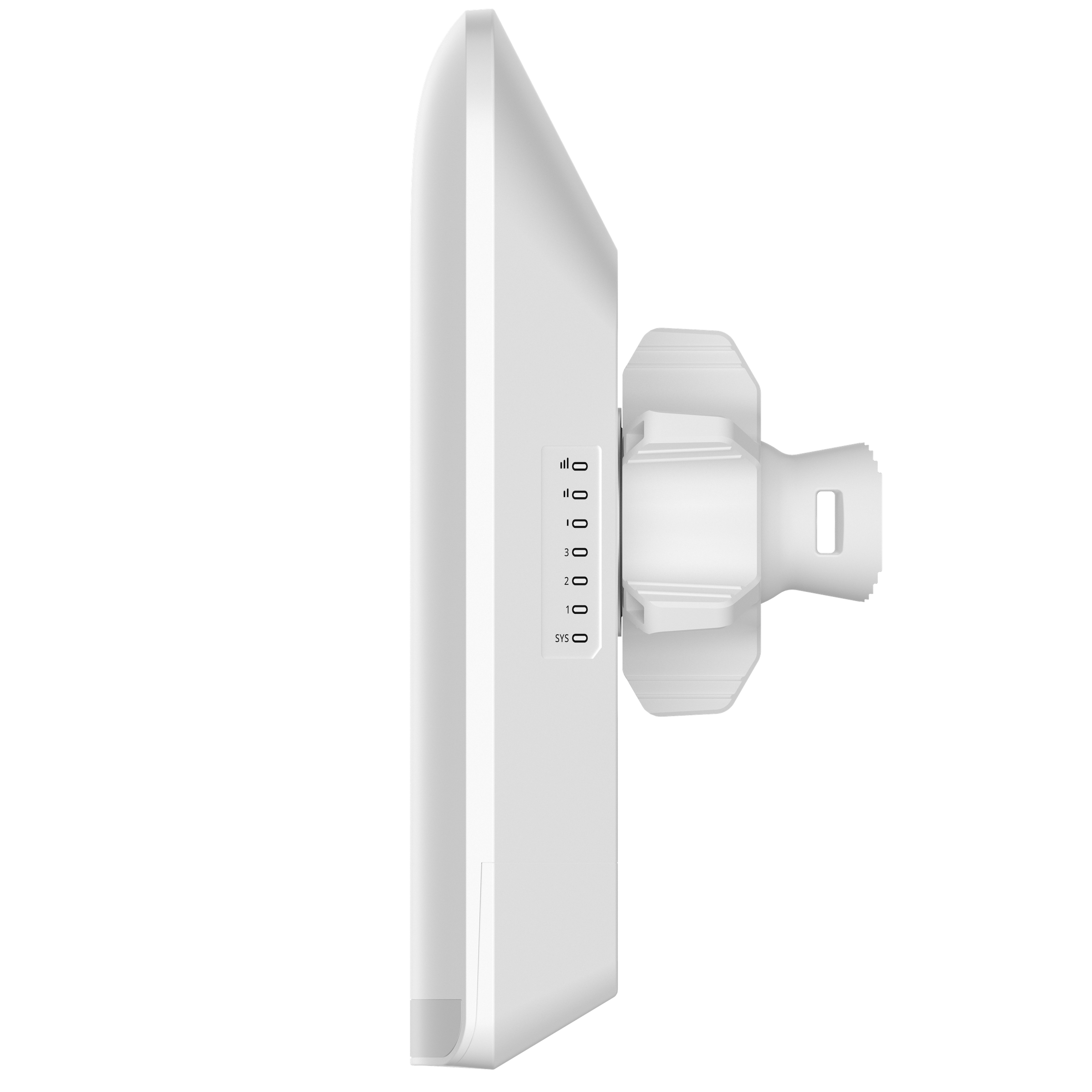

LED
1 x system status LED
3 x Ethernet port LEDs
3 x Signal status LEDs
Button
1 x Reset button
Environment
Operating Temperature: –30°C to +55°C (–22ºF to +131ºF)
Storage Temperature: –40°C to +85°C (–40°F to +185°F)
Operating Humidity: 5% RH to 95% RH (non-condensing)
Storage Humidity: 5% RH to 95% RH (non-condensing)
Weather Resistance
IP Rating: IP55
Service port: ±4 kV for common mode
Power connector: ±4 kV for common mode and ±2 kV differential mode
Software
Working Mode
BaseStation
Yes
CPE
Yes
WLAN
TDMA
Yes
Bridge SSID hiding
Yes
Antenna alignment
Yes
Spectrum scan
Yes
VLAN
Yes
Management and Maintenance
Self Organizing Network
Yes
SNMP
Yes
SSH
Yes
Web management
Yes
Cloud management
Yes
Compliance and Standard
NDAA Compliant
Yes
Health
UL 62368-1:2019
EMC
FCC 47 CFR Part 2 Subpart J
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3
FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7
Certifications
FCC, IC, cTUVus
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
Package Contents
Device
Device
1
Manual
User Manual
1
Warranty Card
1
Accessories
DC power adapter
2
24 V Passive PoE injector
2
Power cord
-
Screw
8 x Phillips pan head screws (self-tapping screws 4.2 mm x 19 mm)
Cable tie
-

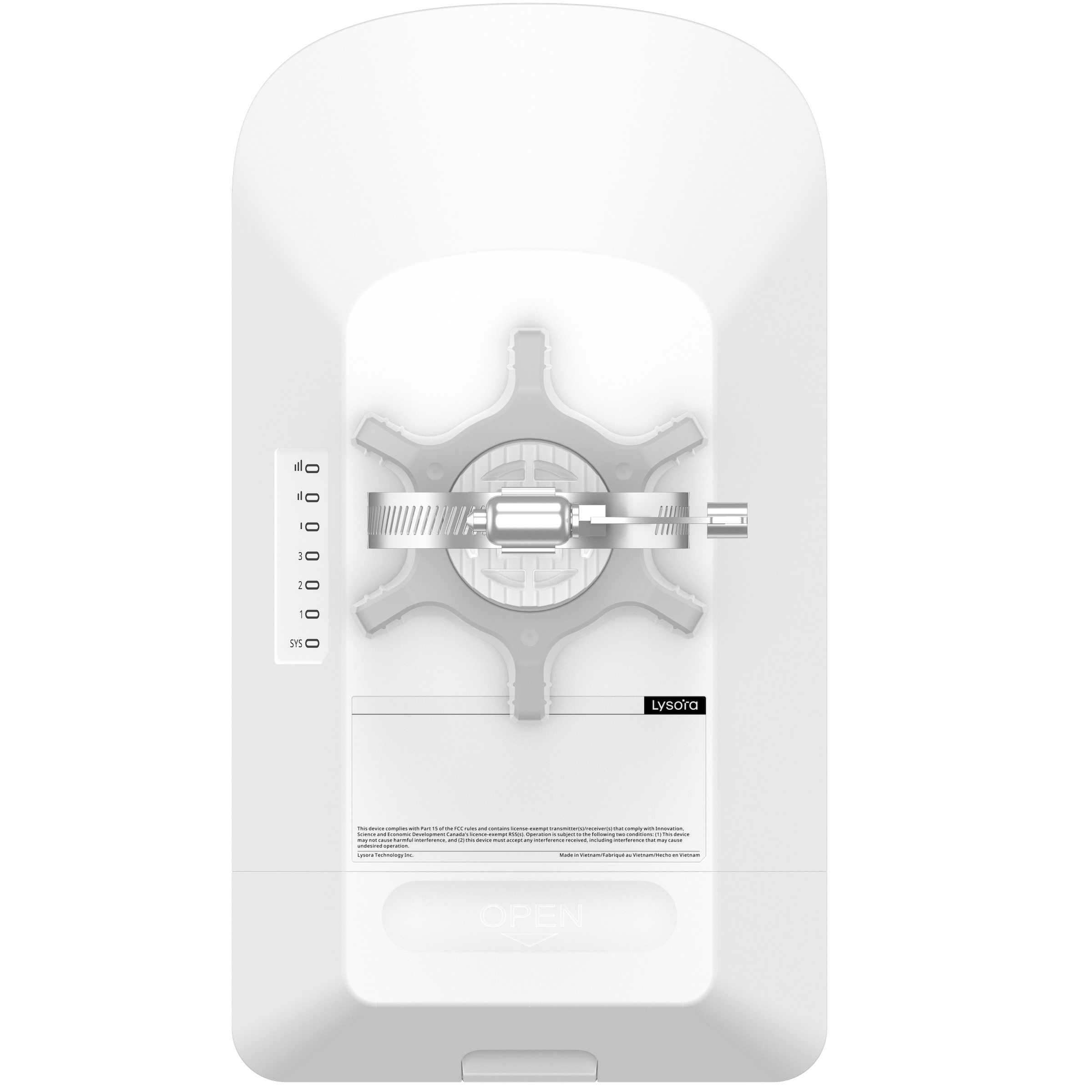

Mounting bracket
2
