CPUDual-core processor, 880 MHz clock frequency per core
Flash Memory16 MB
RAM128 MB
Networking Interface3 x 10/100/1000BASE-T ports
Wi-Fi Protocols2.4 GHz: IEEE 802.11 b/g/n 5 GHz: IEEE 802.11 a/n/ac
MIMO2.4 GHz: 1 x 1 SISO 5 GHz: 2 x 2 MIMO
Channel bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz
Wreless Data Rate2.4 GHz: 300 Mbps 5 GHz: 867 Mbps
Antenna Gain2.4 GHz: 2 dBi 5 GHz: 16 dBi
Antenna horizontal orientation31°
Antenna vertical orientation14°
Max. Transmit Power2.4 GHz: 20 dBm 5 GHz: 29 dBm
Power Consumption≤ 12 W
Power MethodDC power adapter (24 V, 0.6 A) (adapter included) 24 V Passive PoE injector (injector included) DC power adapter (12 V, 1 A) PoE/PoE+
PoE Power Pins1-2 (+), 3-6 (-);4-5 (+), 7-8 (-)
PoE Budget-
Modulation802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Receiver Sensitivity802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps） 802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps) 802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65dBm@MCS15 802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9) 802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9) 802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)

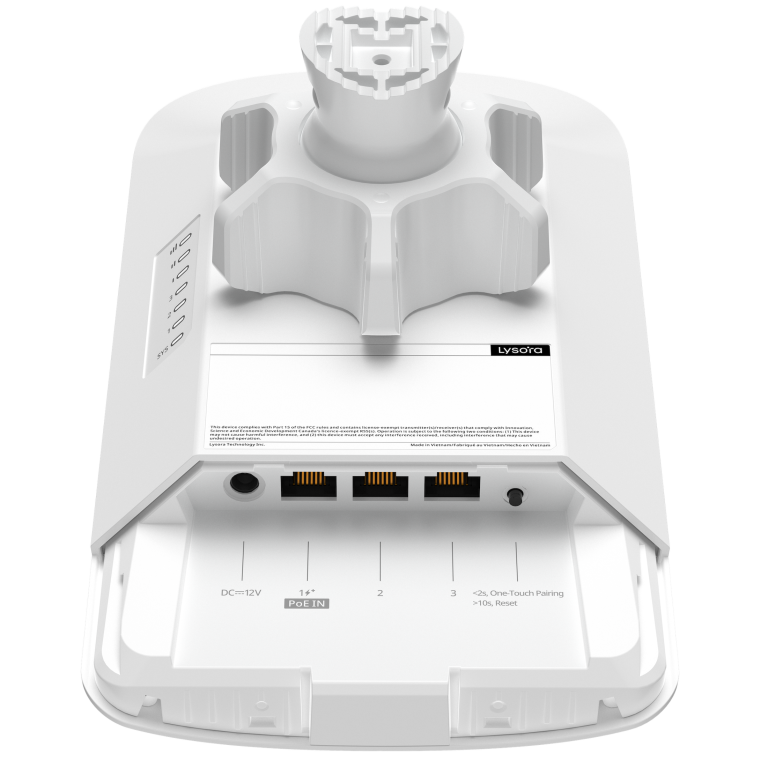

LED1 x system status LED 3 x Ethernet port LEDs 3 x Signal status LEDs
Button1 x Reset button
EnvironmentOperating Temperature: –30°C to +55°C (–22ºF to +131ºF) Storage Temperature: –40°C to +85°C (–40°F to +185°F) Operating Humidity: 5% RH to 95% RH (non-condensing) Storage Humidity: 5% RH to 95% RH (non-condensing)
Weather ResistanceIP Rating: IP55 Service port: ±4 kV for common mode Power connector: ±4 kV for common mode and ±2 kV differential mode
