Wireless Access Points

L6Lite

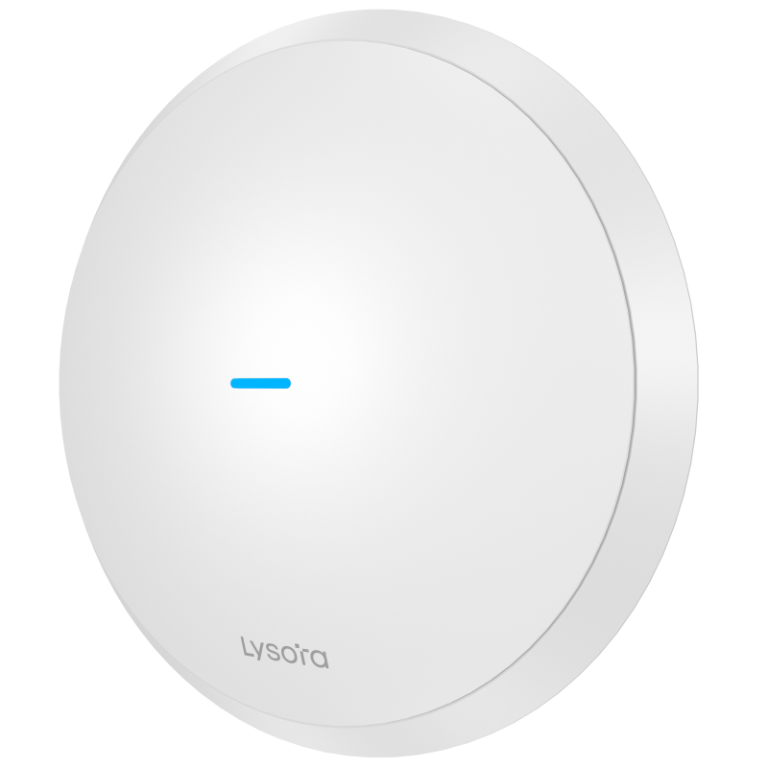

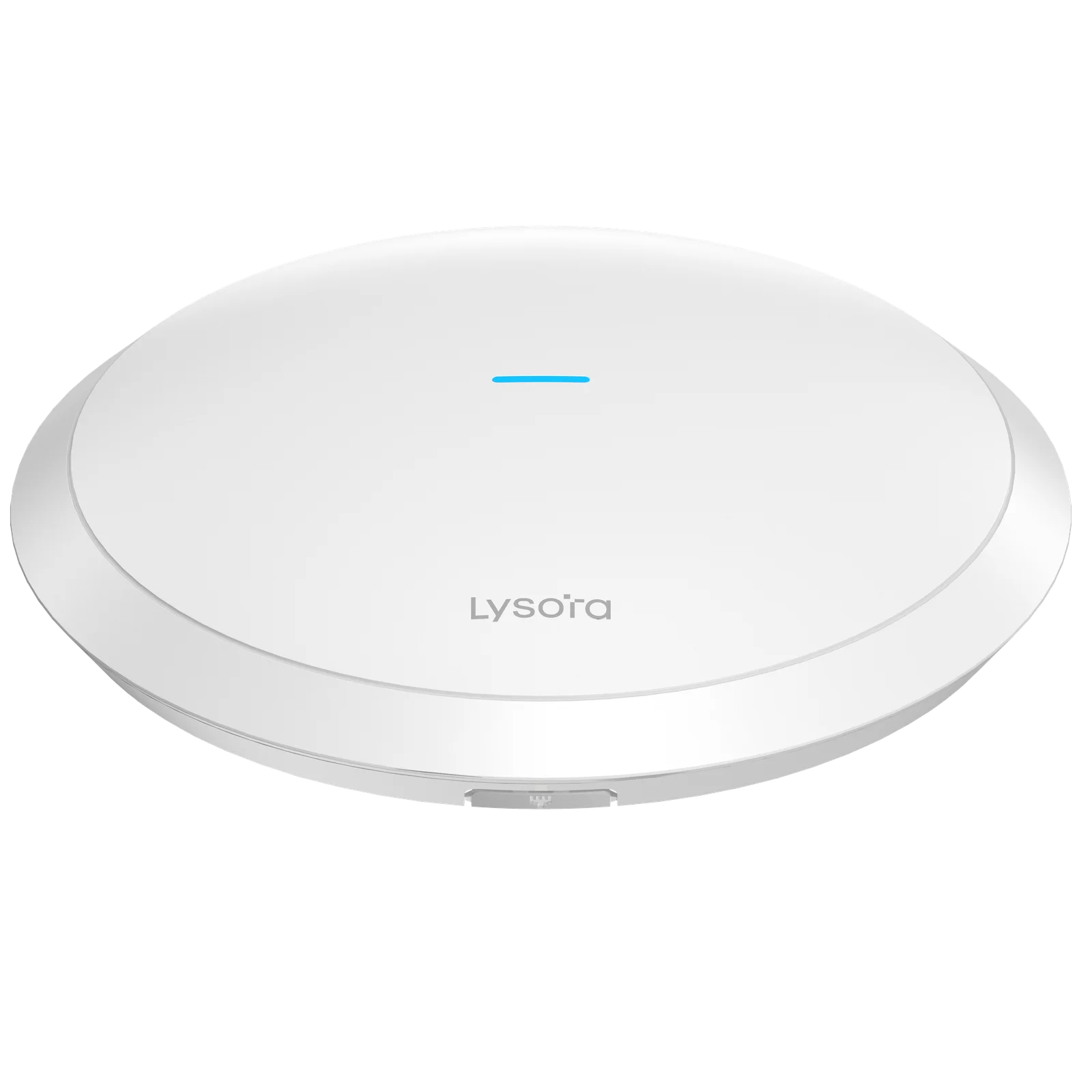

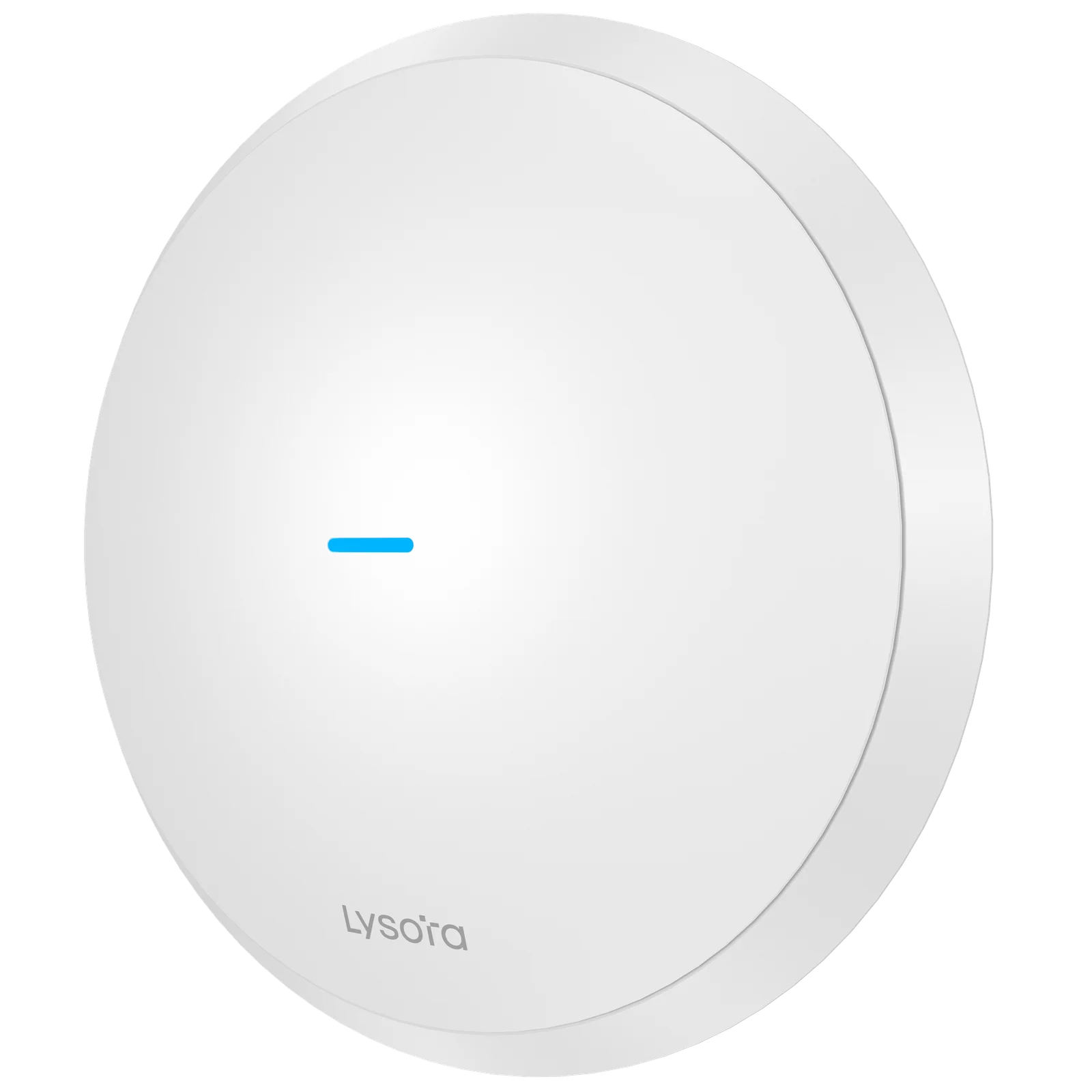

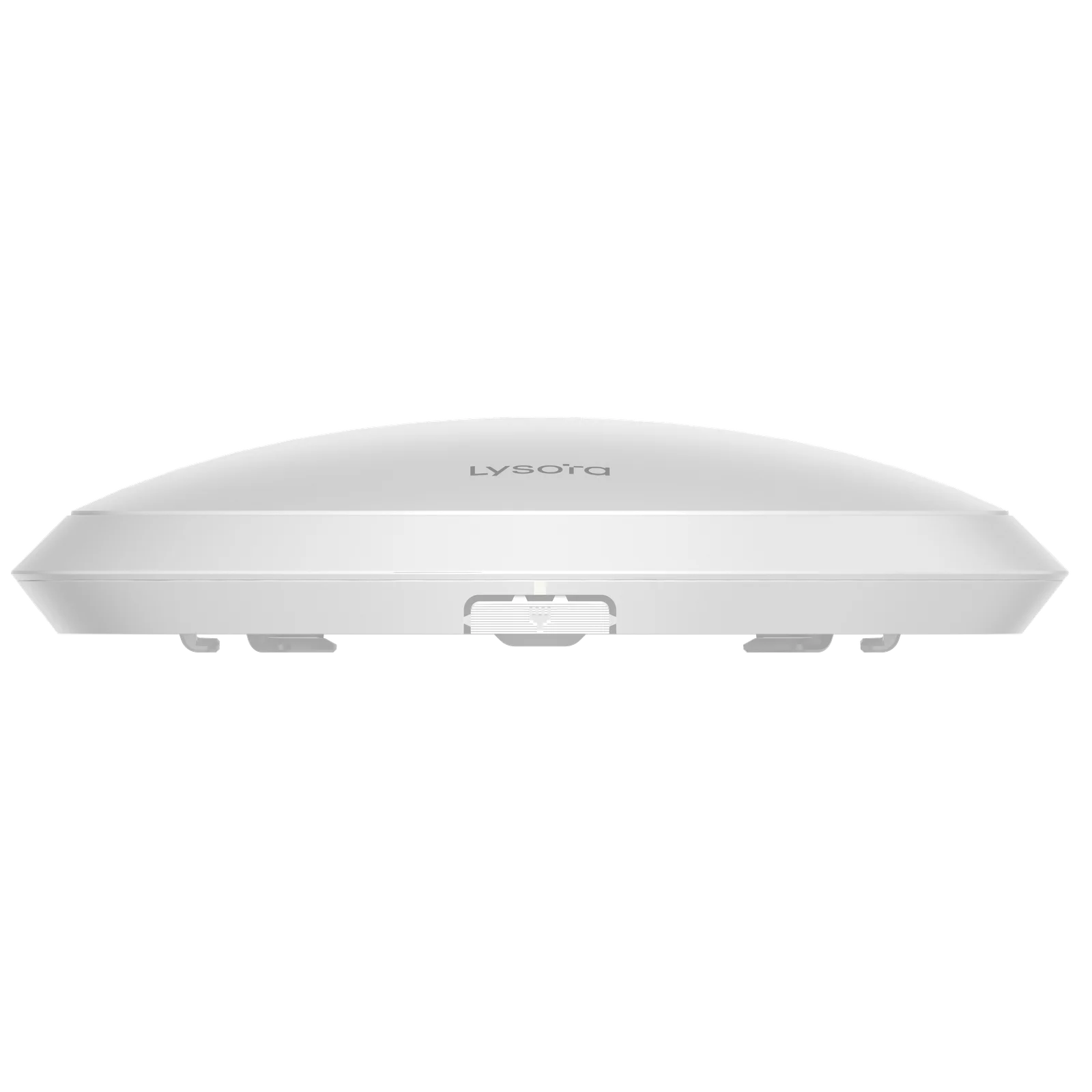

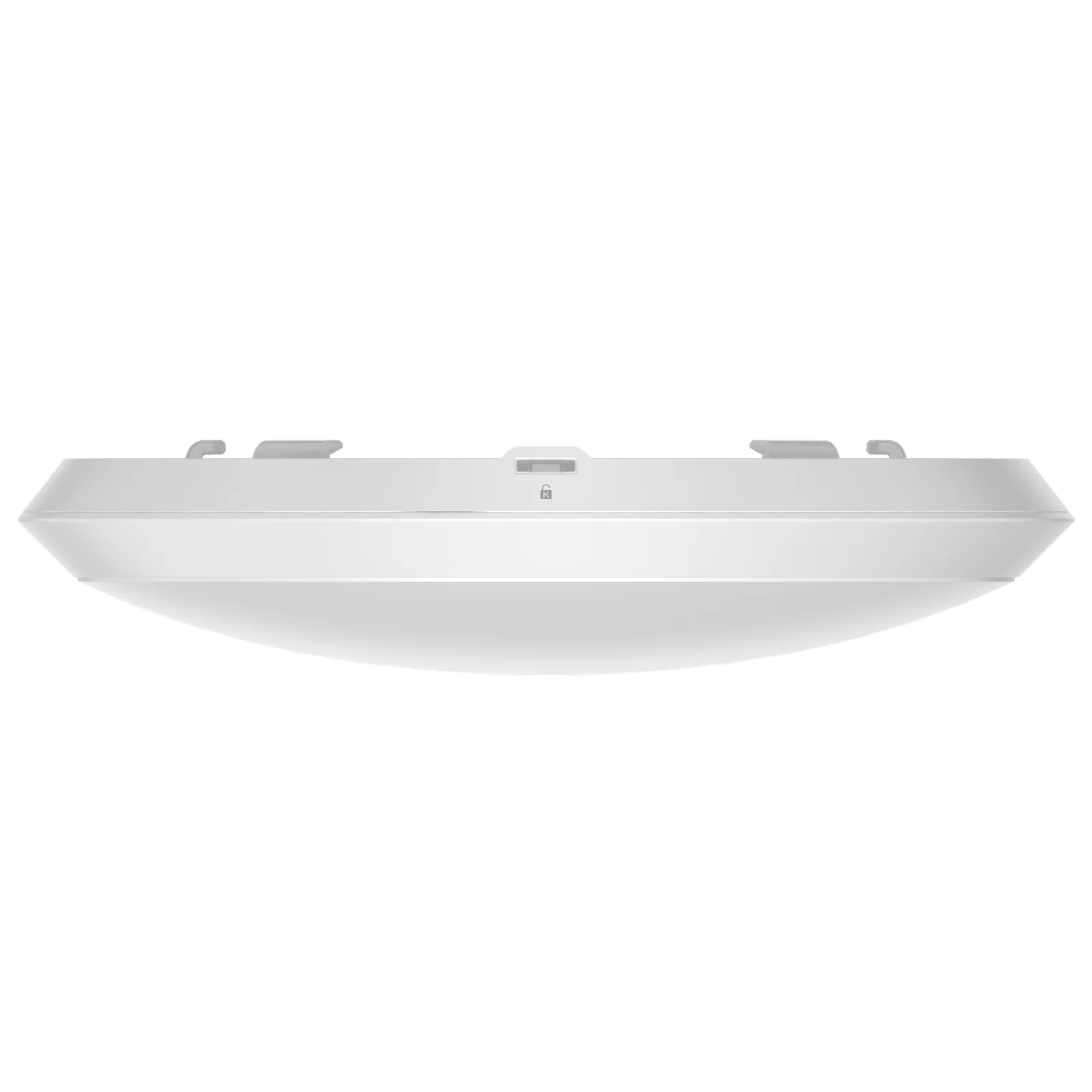

L6Lite wireless access point.

Japan market product: L6Lite
Japanese specifications available
Available in Japan only

Technical details

Specifications

DimensionsØ175mm x 39mm (Ø6.89 in. x 1.54 in.) (excluding the mounting bracket)

Weight≤ 0.4 kg (0.88 lbs) (without packaging materials) ≤ 0.6 kg (1.32 lbs) (with packaging materials)

Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax

Spatial Streams4

Coverage Area125 ㎡ (1345.49 square ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.

Max.Client Count64 (2.4 GHz) 256 (5 GHz) 256 (2.4 GHz and 5 GHz enabled)

Recommended number of associated wireless clients● Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 84 (5 GHz) 100 (2.4 GHz and 5 GHz enabled) ● Support for IEEE 802.11ac: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled)

Mounting TypeCeiling Mount,Wall-mounted (Mounts Included)

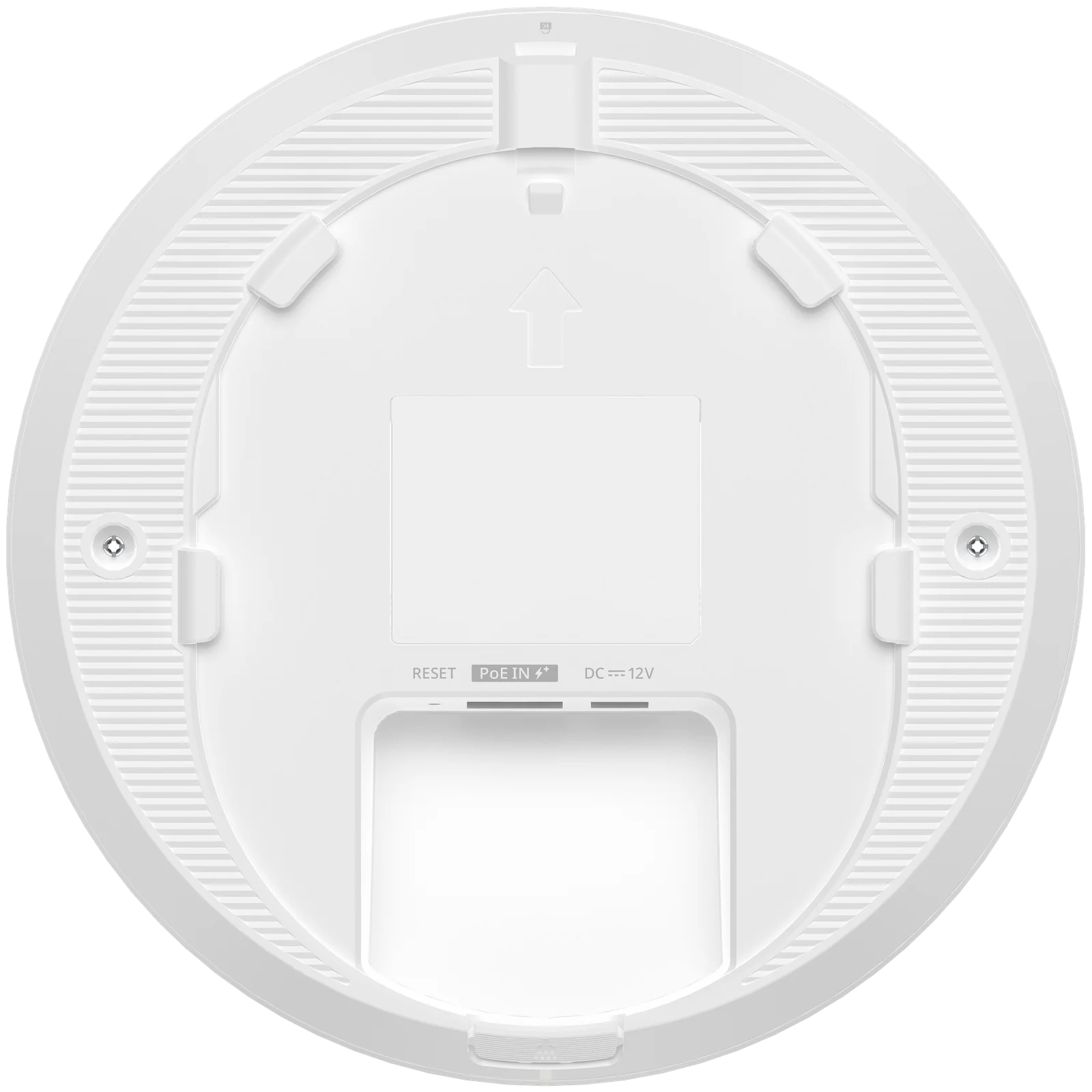

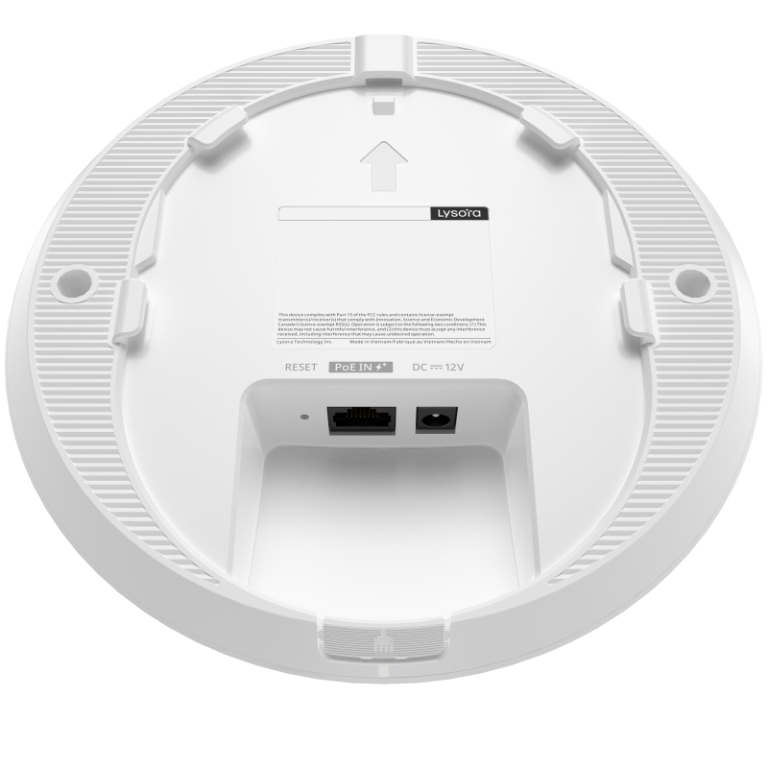

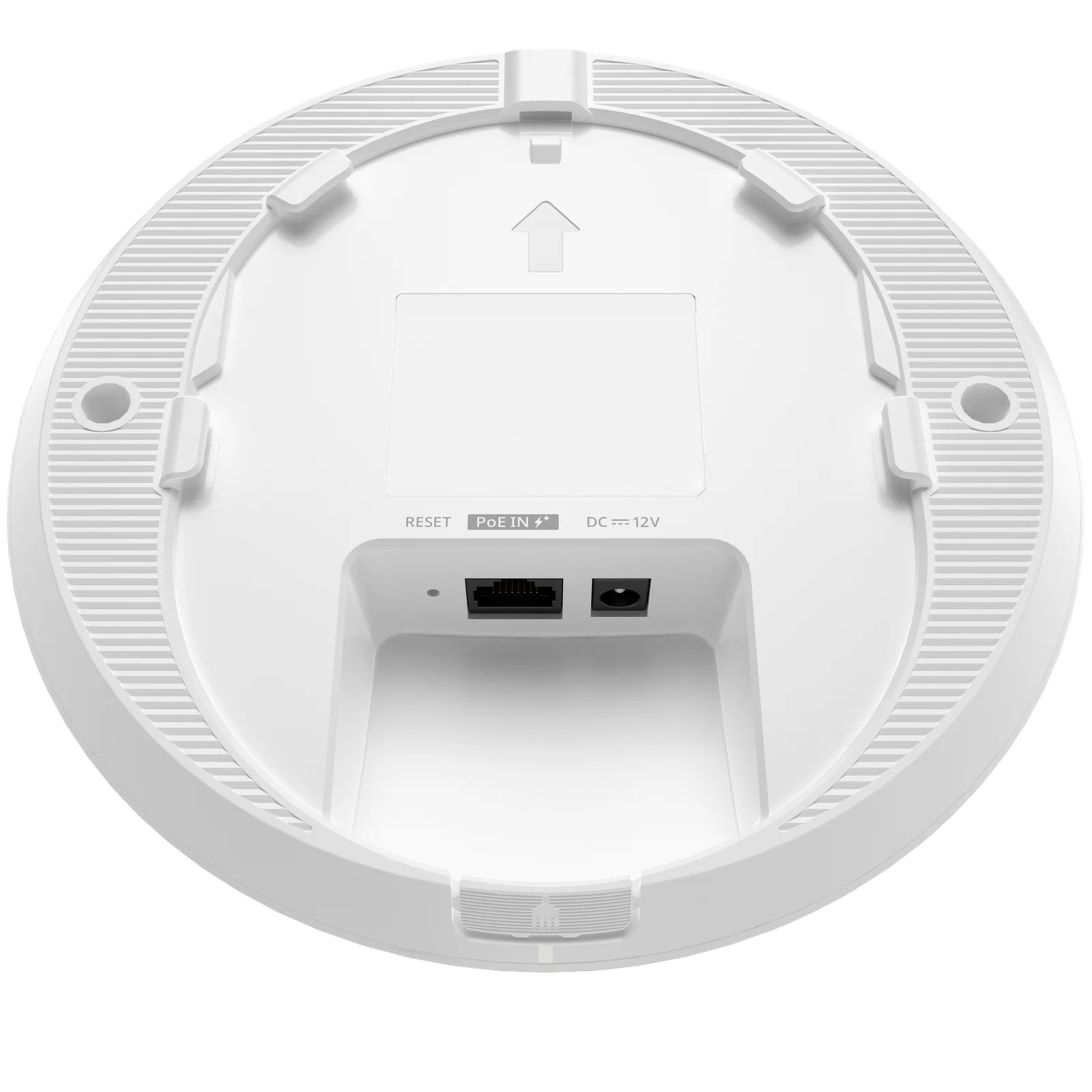

Networking Interface1 x 10/100/1000BASE-T port

Wi-Fi Protocols2.4 GHz: IEEE 802.11 b/g/n/ax 5 GHz: IEEE 802.11 a/n/ac/ax

MIMO2.4 GHz: 2 x 2 MU-MIMO 5 GHz: 2 x 2 MU-MIMO

Channel bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz

Wreless Data Rate2.4 GHz: 573 Mbps 5 GHz: 1201 Mbps

Antenna Gain2.4 GHz: 3.13 dBi 5 GHz: 4.64 dBi

Power Consumption≤ 12.95 W

Power MethodPoE DC(12 V, 1.5A), DC Power Adapter Is Not Included

ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM OFDMA

Receiver Sensitivity11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)

LED1 x System Status LED

Button1 x Reset button

EnvironmentOperating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: –40°C to +70°C (–40°F to +158°F) Operating Humidity: 5% RH to 95% RH (Non-condensing) Storage Humidity: 5% RH to 95% RH (Non-condensing)

Weather ResistanceIP Rating: IP41 Lightning Protection/Surge Protection: ±2 kV

Working Mode

Router ModeYes

AP ModeYes

WLAN

Max. Number of SSIDs8

Band SteeringYes

Wireless MeshingYes

Wi-Fi Multimedia (WMM)Yes

802.1Q VLANYes

Multi-Link Operation (MLO)No

4K-QAMNo

RF BeamformingYes

Wi-Fi Speed LimitingYes

Client Device IsolationYes

Wi-Fi SchedulesYes

Roaming

802.11vYes

802.11kYes

802.11rYes

Layer 2 roamingYes

Layer 3 roamingYes

Security

PSK AuthenticationYes

WPA (TKIP), WPA2 (AES), and WPA-PSKYes

OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAEYes

802.1X AuthenticationYes

IP Service

PingYes

TracerouteYes

Routing

NATYes

Static IP addressYes

DHCP ServerYes

PPPoE Client PPPoE Dial-upYes

AP Mesh

Mesh ManagementYes

Standalone Portal

Captive PortalYes

Bandwidth LimitingYes

Data QuotaNo

Management and Maintenance

Number of APs on a Self-Organizing Network300

Unified Networking for All Network EquipmentYes

Local or Remote Management through Lysora AppYes

Local Management through the Web InterfaceYes

Remote Management through Lysora CloudYes

SNMPYes

Platform Management Features

AI OptimizationYes

Unified Configuration or Monitoring through Lysora CloudYes

NDAA ComplainYes

EMCVCCI-CISPR 32:2016, VCCI-32-1:2016

RFItem 19 of Article 2 Paragraph 1, MIC Notification 88, ANNEX 43. Notification No.88 of MIC, 2004, annex 45 Test Method for 5 GHz Band Wideband Low-power Data Communications System. (Item 19-3 of Article 2 Paragraph 1)

Functional （Only for India TEC Certification）IEEE 802.3 Annex-H（Only for India TEC Certification） RFC 2460 or RFC 8200, Annex-P7 （Only for India TEC Certification）

CertificationFCC, ISED, cTUVus, TEC, WPC，TELEC，VCCI

Operating Frequency2400–2483.5 MHz: 5150–5250 MHz (indoor use only) 5250–5350 MHz (indoor use only) 5470–5730 MHz

Device

Device1

Manual

User Manual1

Warranty Card1

Accessories

Cross pan head screws (ST4.2 x 25 mm)4

Plastic expansion anchors (φ9 x 25.4 mm)4

Key to security lock1

Alignment sticker1

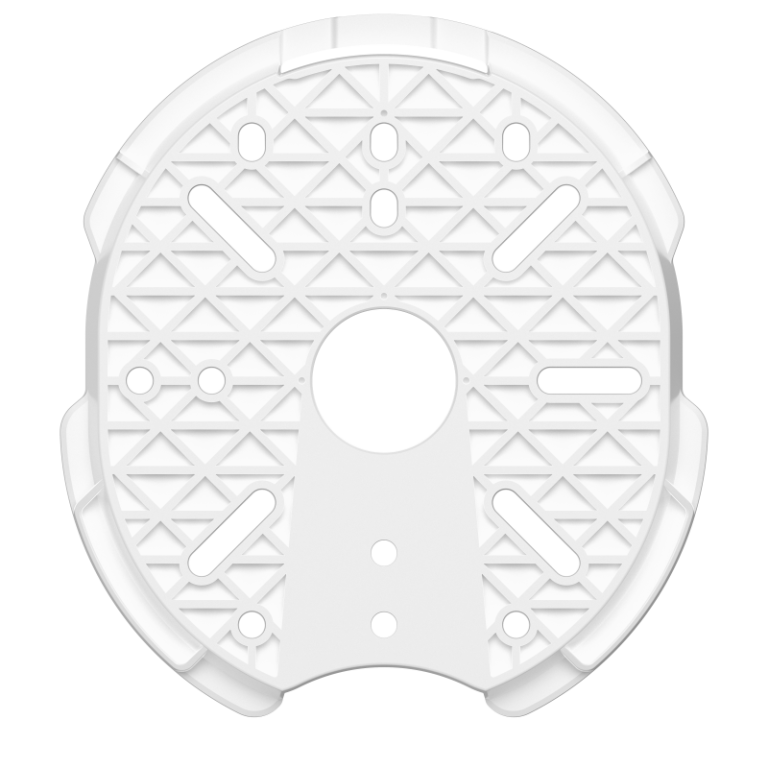

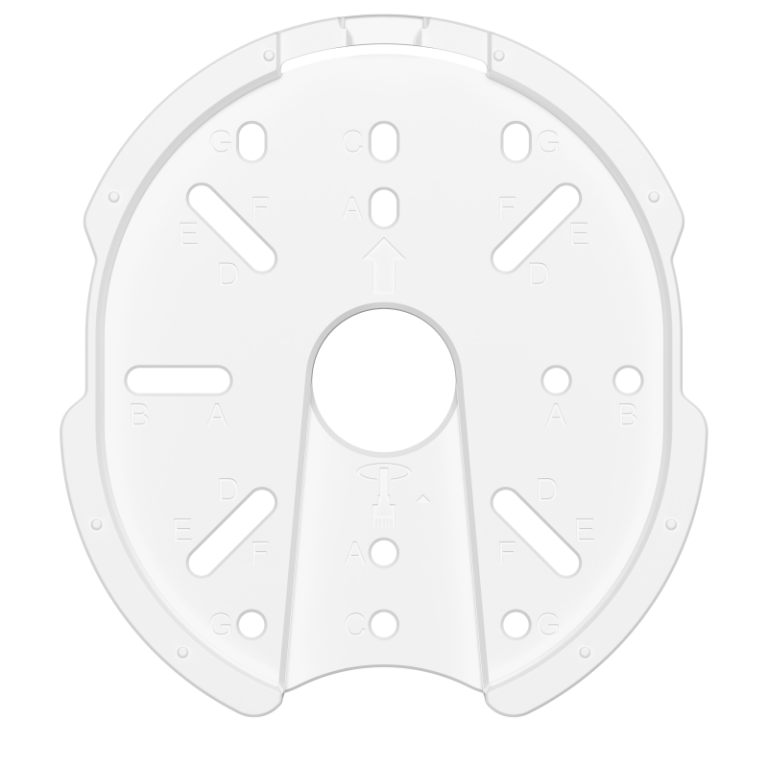

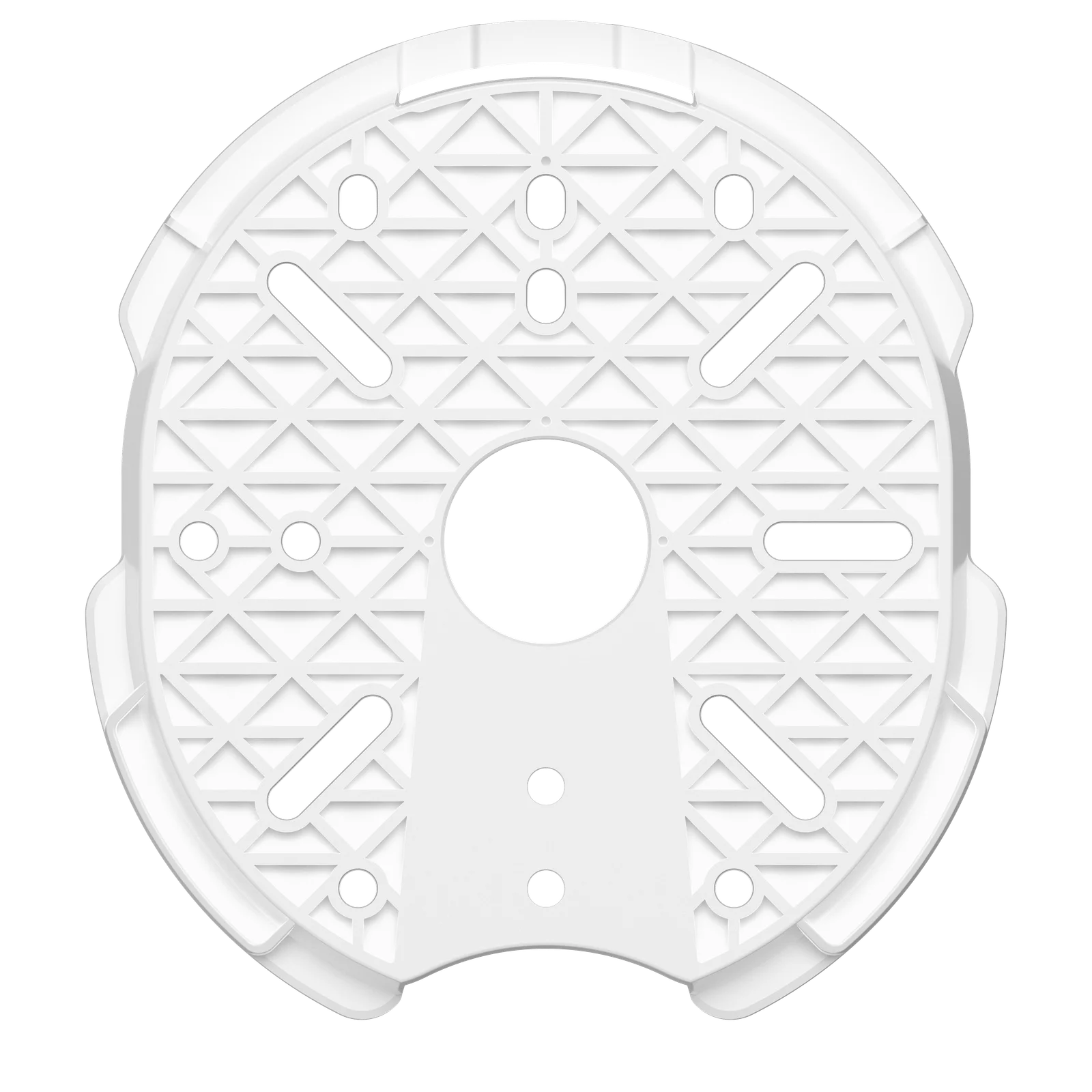

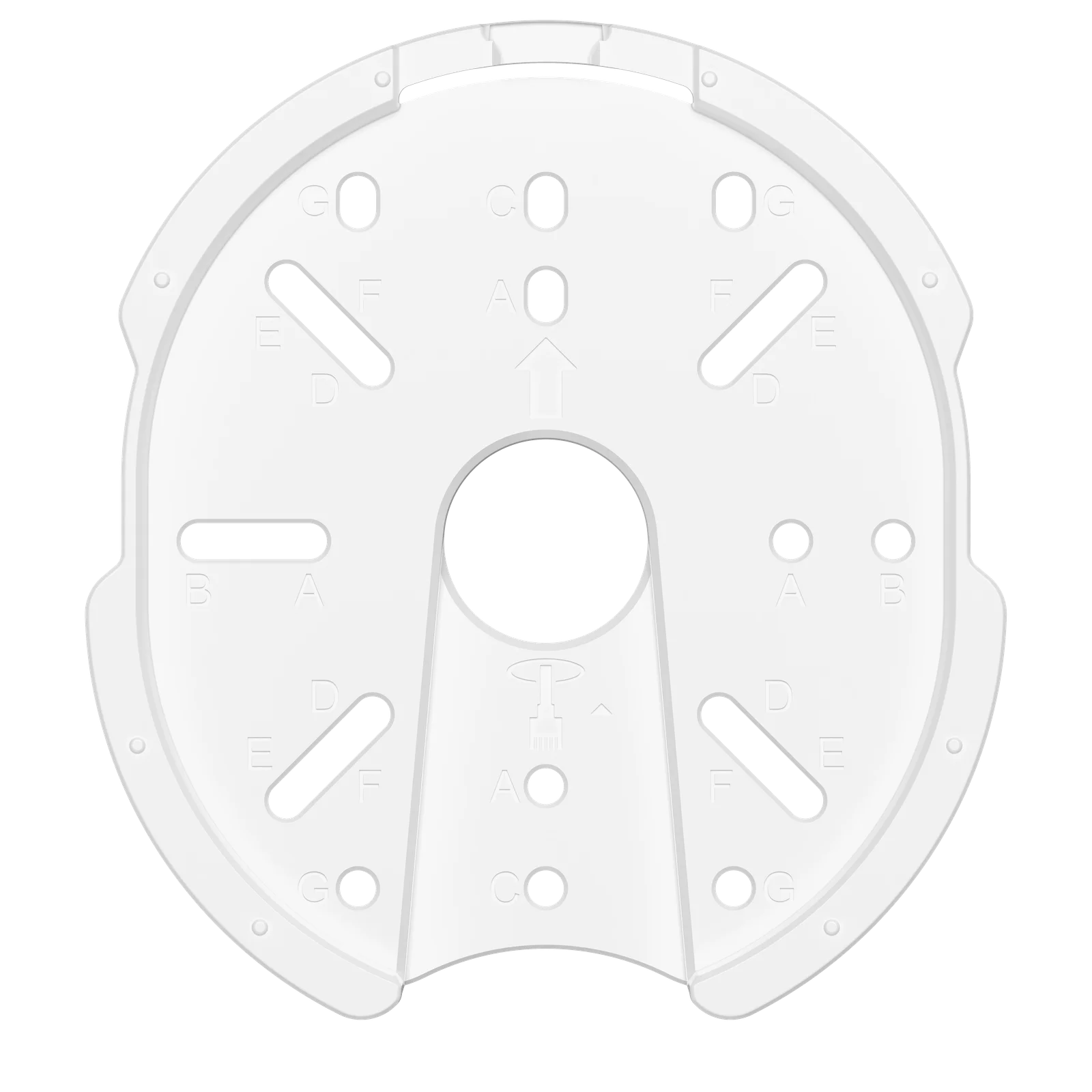

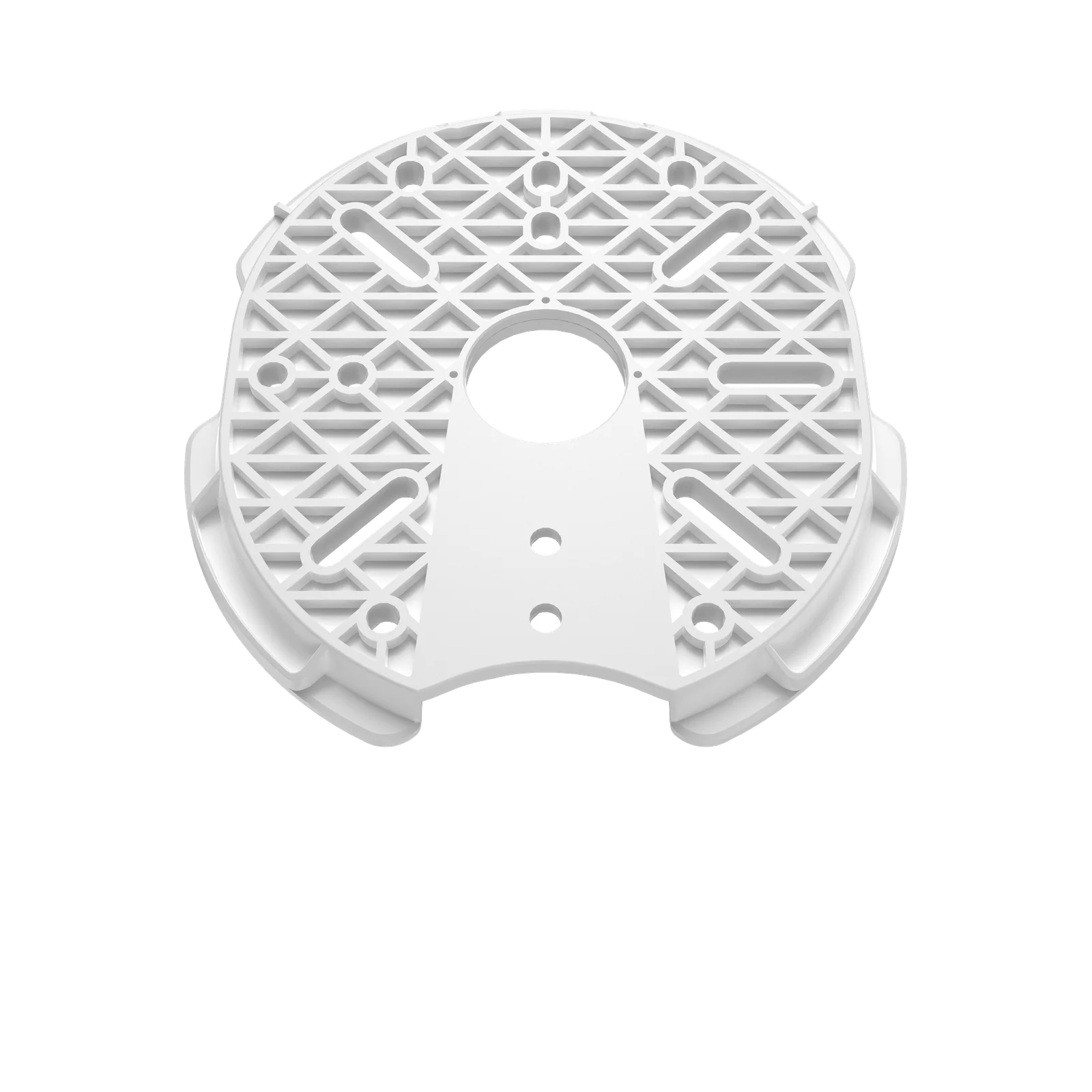

Mounting bracket1
