Wireless Access Points

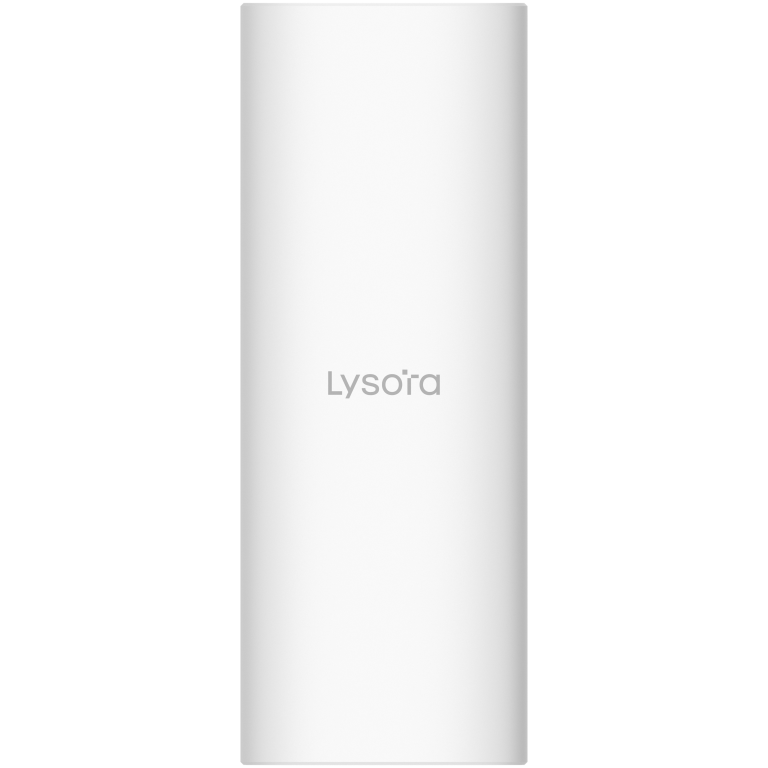

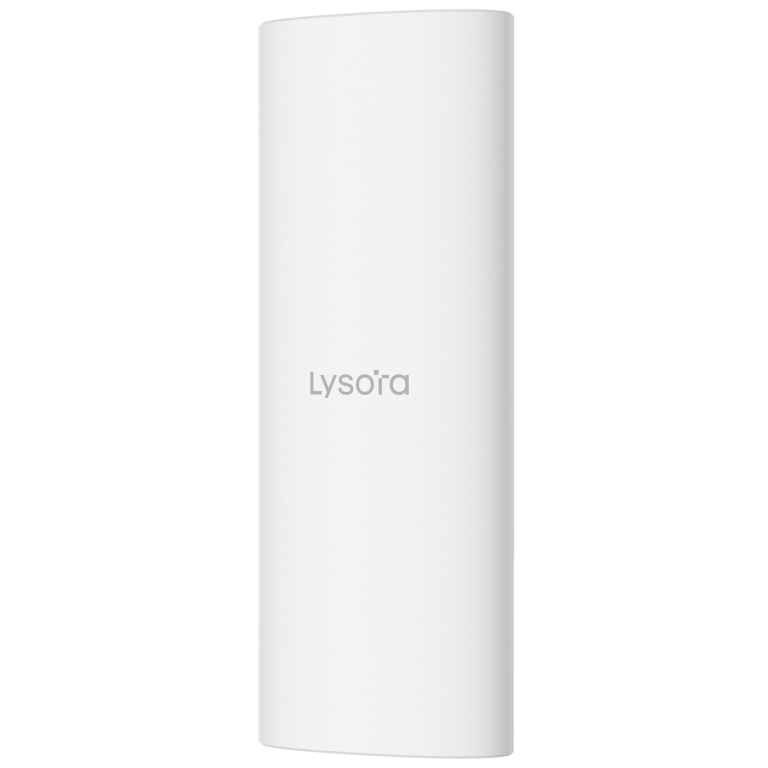

L7-T

Wi-Fi 7 BE5040 Dual-Band Outdoor Access Point

Wi-Fi 7 BE5000 dual-band outdoor access point
Up to five spatial streams
1 x 100/1000/2500BASE-T port
Unified networking and management based on Lysora Cloud App
Max power consumption < 18 W
802.3af/at PoE In

Technical details

Specifications

Dimensions90 mm x 46 mm x 239 mm (3.54 in. x 1.81 in. x 9.41 in.)

Weight≤ 0.7 kg (1.54 lbs.) (without packaging materials)

Wi-Fi StandardsIEEE 802.11 a/b/g/n/ac/ax/be

Spatial Streams5

Coverage Range5 GHz max: 300 m (984.25 ft.) 2.4 GHz max: 100 m (328.08 ft.) 5 GHz recommended: 150 m (492.13 ft.) 2.4 GHz recommended: 50 m (164.04 ft.) Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.

Max.Client Count64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)

Recommended number of associated wireless clients●Support for IEEE 802.11ax and 160 MHz: 16 (2.4 GHz) 94 (5 GHz) 110 (2.4 GHz and 5 GHz enabled) ●Support for IEEE 802.11ax and 80 MHz: 16 (2.4 GHz) 64 (5 GHz) 80 (2.4 GHz and 5 GHz enabled) ●Support for IEEE 802.11ac: 8 (2.4 GHz) 32 (5 GHz) 40 (2.4 GHz and 5 GHz enabled)

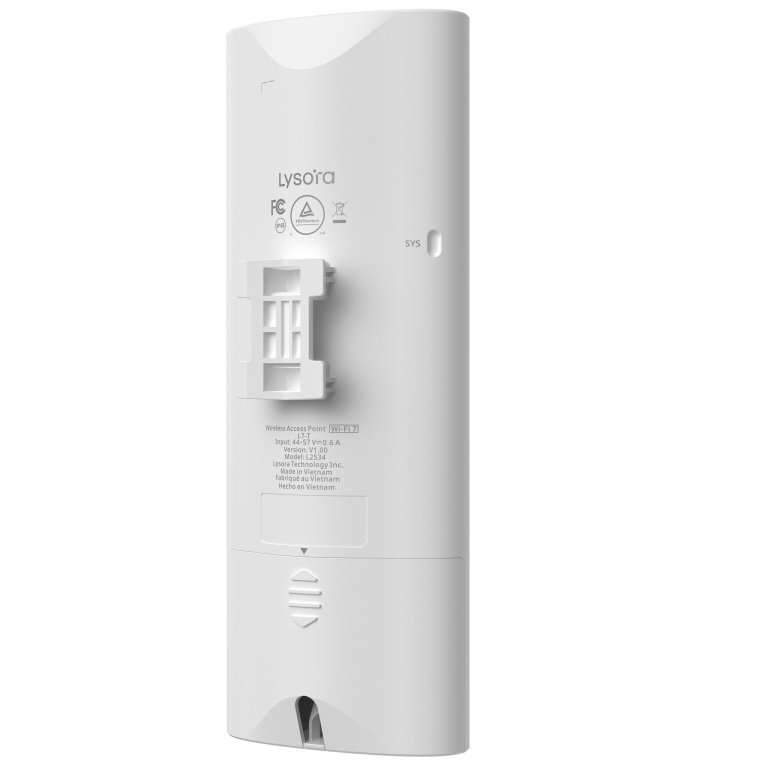

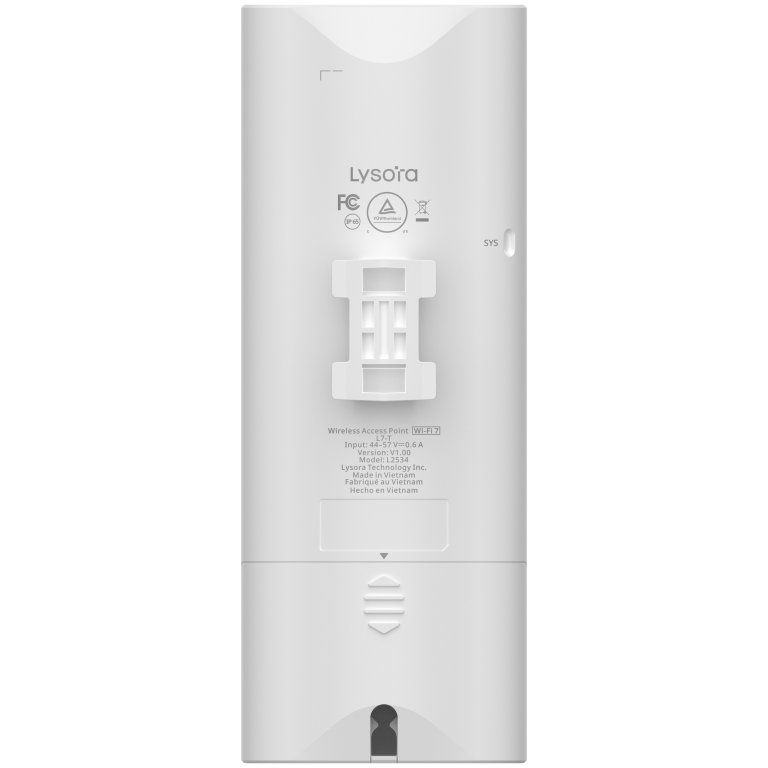

MountingWall, Pole (Mounts Included)

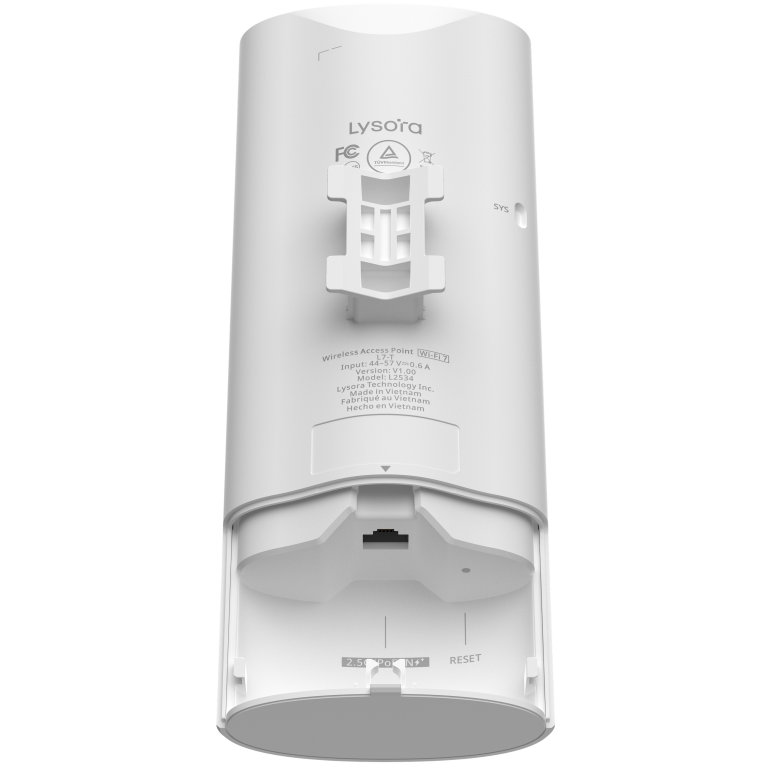

Networking Interface1 x 10/100/1000/2500BASE-T port

Wi-Fi Protocols2.4 GHz: IEEE 802.11 b/g/n/ax/be 5 GHz: IEEE 802.11 a/n/ac/ax/be

MIMO2.4 GHz: 2 x 2 MU-MIMO 5 GHz: 3 x 3 MU-MIMO

Channel bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz

Wireless Data Rate2.4 GHz: 688 Mbps 5 GHz: 4323 Mbps

Antenna Gain2.4 GHz: 3.62 dBi 5 GHz: 6.28 dBi

Max. Transmit Power2.4 GHz: 26 dBm 5 GHz: 26 dBm

Power Consumption≤ 21 W

Power MethodPoE+

ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA

Receiver Sensitivity11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11) 11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11) 11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13) 11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13) 11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13) 11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)

LED1 x System Status LED

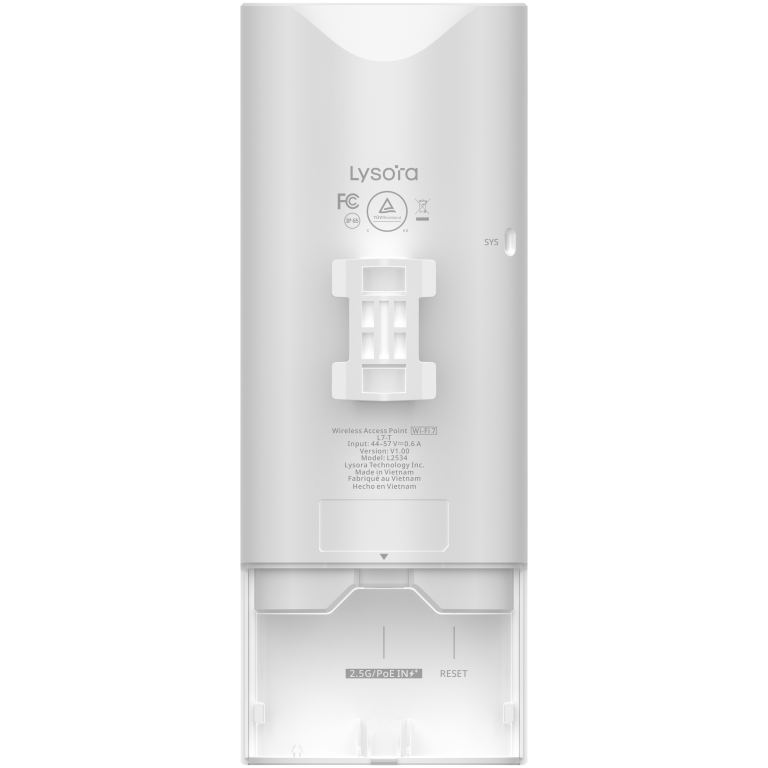

Button1 x Reset button

EnvironmentOperating Temperature: –30°C to +65°C (–22°F to +149°F) Storage Temperature: –40°C to +75°C (–40°F to +167°F) Operating Humidity: 5% RH to 95% RH (Non-condensing) Storage Humidity: 5% RH to 95% RH (Non-condensing)

Weather ResistanceIP Rating: IP65 Lightning Protection/Surge Protection: ±4 kV

Working Mode

Router ModeYES

AP ModeYES

WLAN

Max. Number of SSIDs-

Band SteeringYES

Wireless MeshingYES

Wi-Fi Multimedia (WMM)YES

802.1Q VLANYES

Multi-Link Operation (MLO)YES

4K-QAMYES

RF BeamformingYES

WiFi Speed LimitingYES

Client Device IsolationYES

WiFi SchedulesYES

Roaming

802.11vYES

802.11kYES

802.11rYES

Layer2 roamingYES

Layer3 roamingYES

Security

PSK AuthenticationYES

WPA (TKIP), WPA2 (AES), and WPA-PSKYES

OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAEYES

802.1XYES

PingYES

TracerouteYES

Routing

NATYES

Static IP addressYES

DHCP ServerYES

PPPoE Client PPPoE Dial-upYES

AP Mesh

Mesh ManagementYES

Standalone Portal

Captive PortalYES

Bandwidth LimitingYES

Data QuotaNO

Management and Maintenance

Number of APs on a Self-Organizing Network300

Unified Networking for All Network EquipmentYES

Local or Remote Management through Lysora AppYES

Local Management through the Web InterfaceYES

Remote Management through Lysora CloudYES

SNMPYES

Platform Management Features

AI OptimizationYES

Unified Configuration or Monitoring through Lysora CloudYES

NDAA CompliantYes

HealthUL 62368-1:2019

RFFCC 47 CFR Part 2 Subpart J FCC 47 CFR Part 15 Subpart E IC RSS-247 Issue 3

EMCFCC 47 CFR Part 15 Subpart B ICES-003 Issue 7

CertificationsFCC, IC, cTUVus

Operating FrequencyUS/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz
