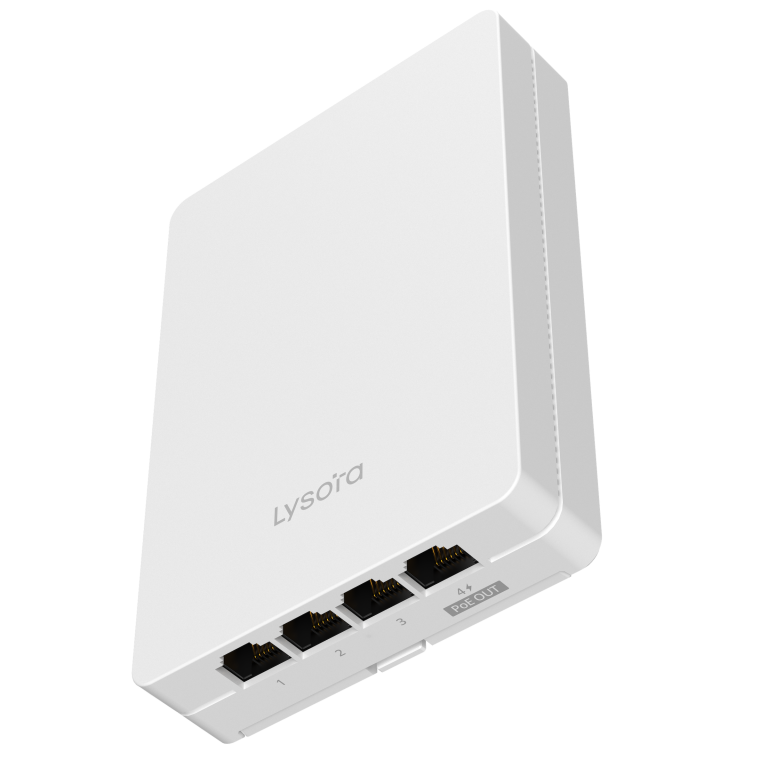

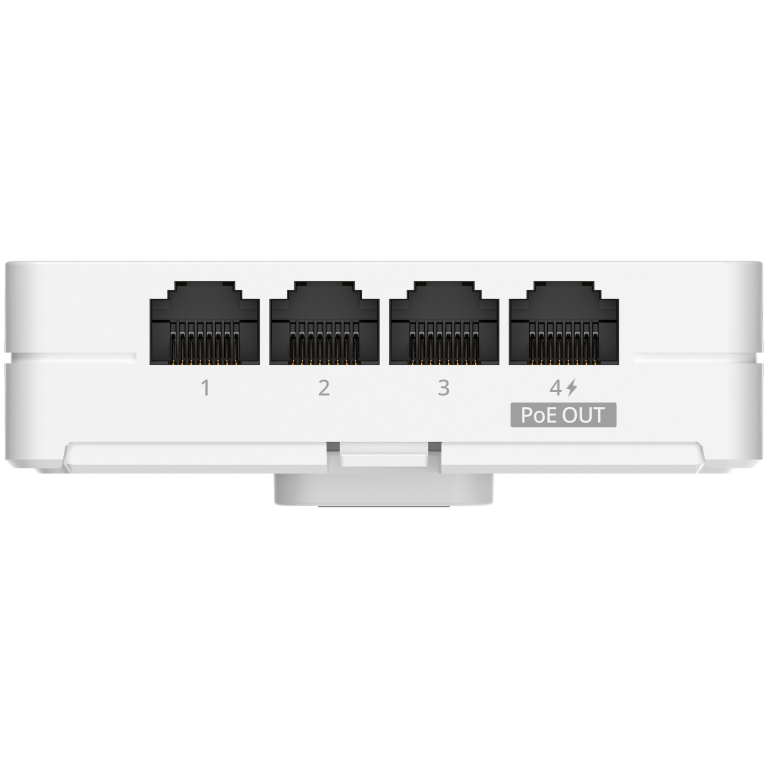

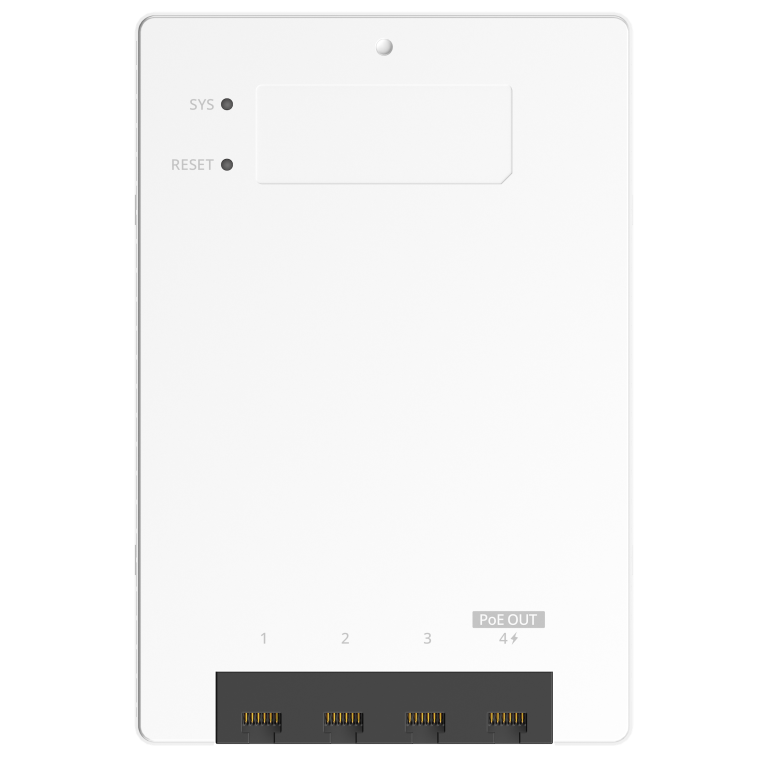

Networking Interface4 x 10/100/1000BASE-T LAN port（1 x AF PoE-Out Port） + 1 x 10/100/1000/2500BASE-T WAN port
Wi-Fi Protocols2.4 GHz: IEEE 802.11 b/g/n/ax/be 5 GHz: IEEE 802.11 a/n/ac/ax/be
MIMO2.4 GHz: 2 x 2, MU-MIMO 5 GHz: 2 x 2, MU-MIMO
Channel bandwidth2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz
Wireless Data Rate2.4 GHz: 688 Mbps 5 GHz: 2882 Mbps
Antenna Gain2.4 GHz: 2.84 dBi 5 GHz: 4.56 dBi
Max. Transmit Power2.4 GHz: 20 dBm 5 GHz: 21.7 dBm
Power Consumption≤ 15 W (excluding PoE output)

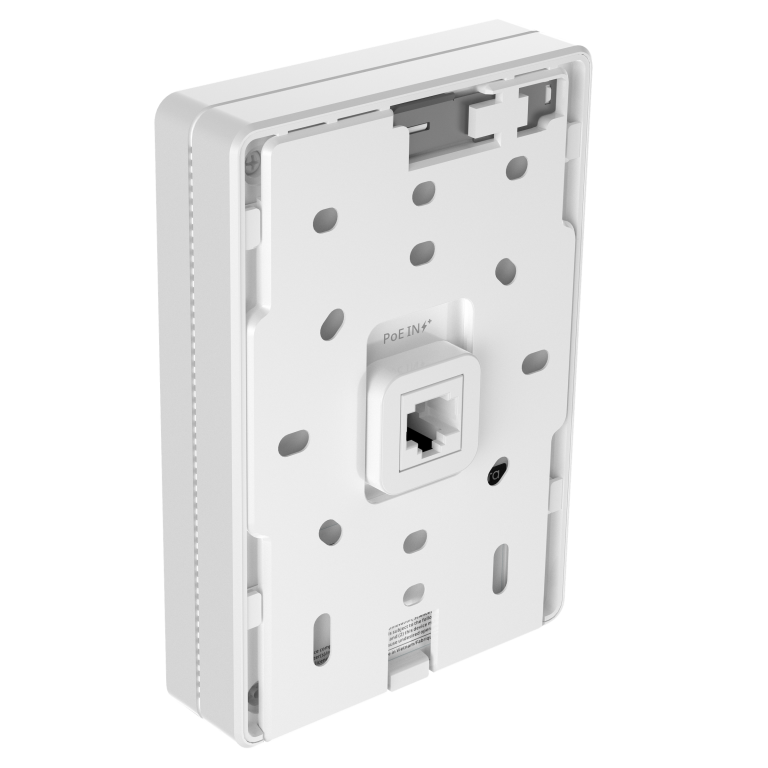

Power MethodPoE+
ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA
Receiver Sensitivity11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11) 11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11) 11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13) 11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13) 11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13) 11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)
LED1 x System Status LED
Button1 x Reset button
EnvironmentOperating Temperature: 0°C to +40°C (32°F to +104°F) Storage Temperature: –40°C to +70°C (–40°F to +158°F) Operating Humidity: 5% RH to 95% RH (Non-condensing) Storage Humidity: 5% RH to 95% RH (Non-condensing)
Weather ResistanceIP Rating: IP41 Lightning Protection/Surge Protection: ±2 kV
