LR1500XS

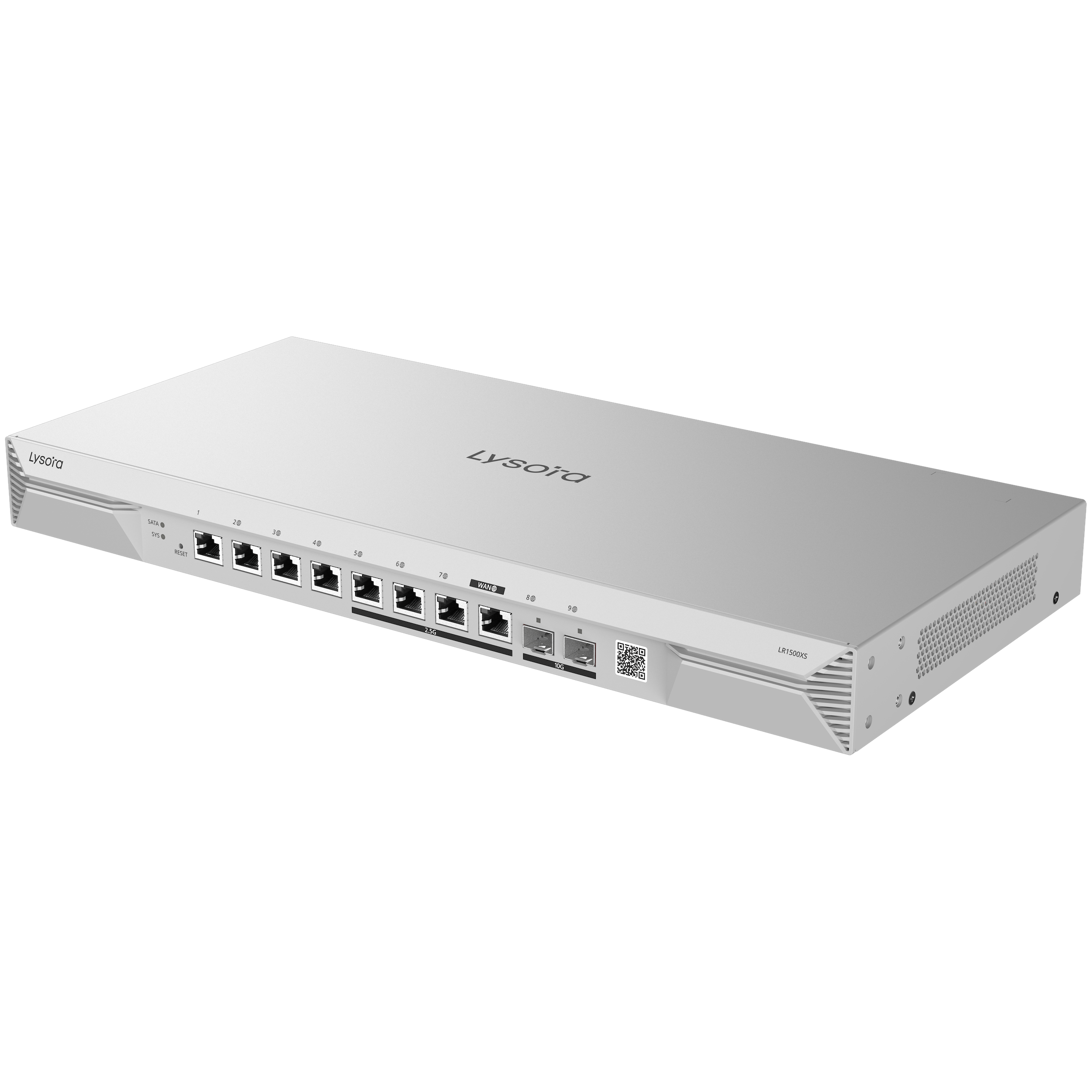

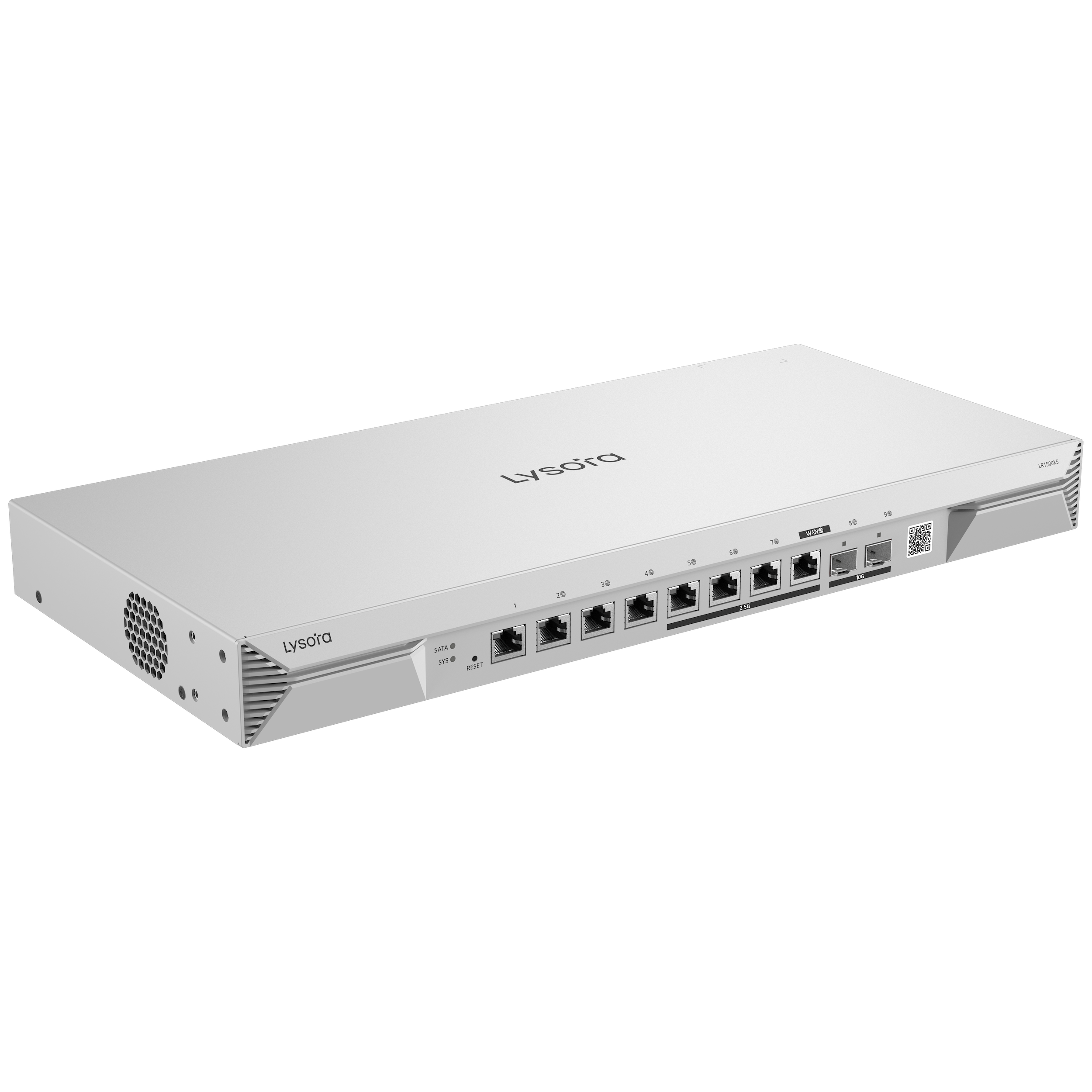

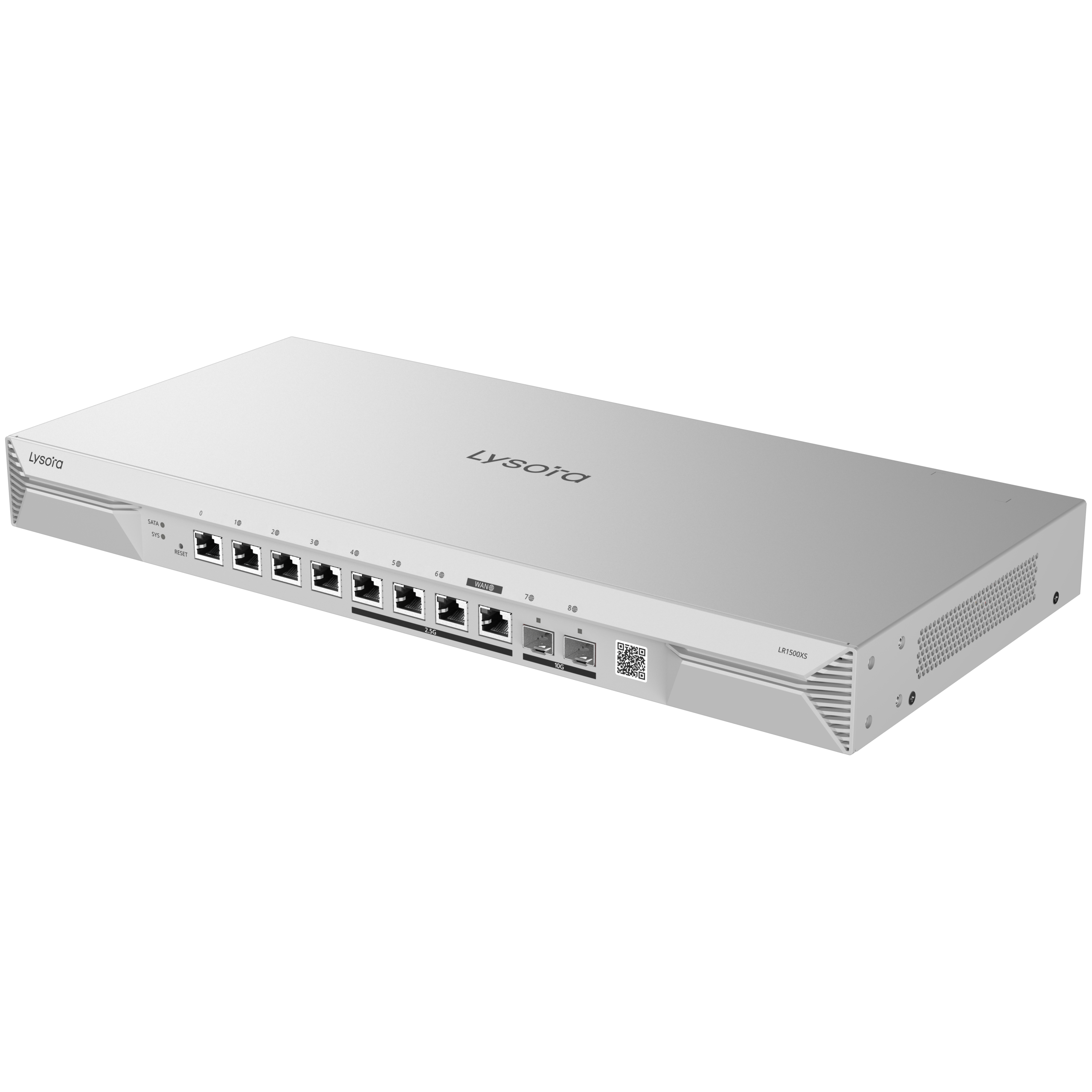

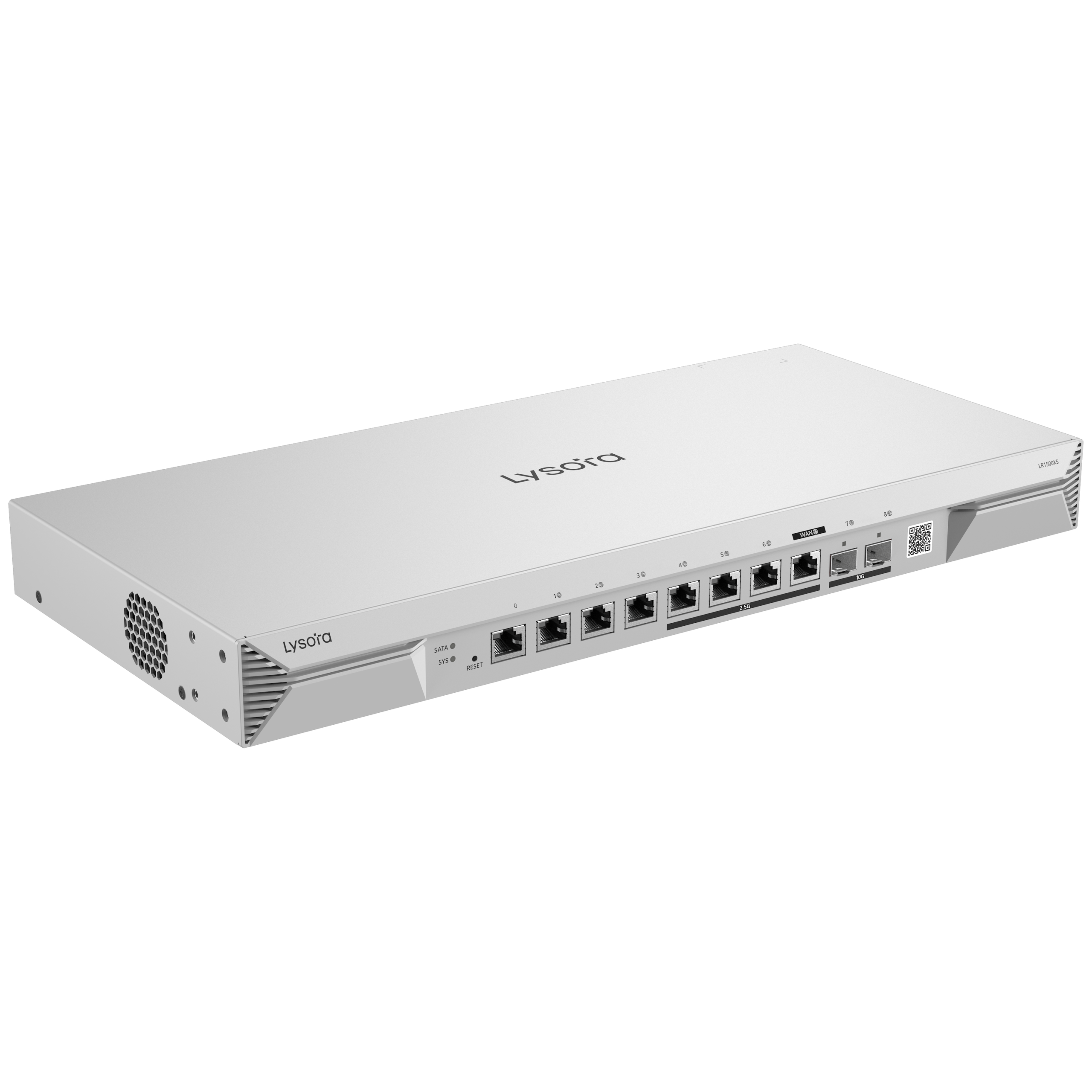

8-Port (4 x 2.5G Ports) High-Performance Cloud Managed Router with 2 x SFP+ Ports
  • Rack-mountable 10-port router, providing one 2.5G WAN port, one 1G LAN port, three 2.5G LAN/WAN ports, three 1G LAN/WAN ports, one SFP+ port and one 1G/2.5G/10G SFP port
  • Recommended 1500 concurrent connections, maximum 4 Gbps throughput
  • Cloud remote management supported
Technical
Overview

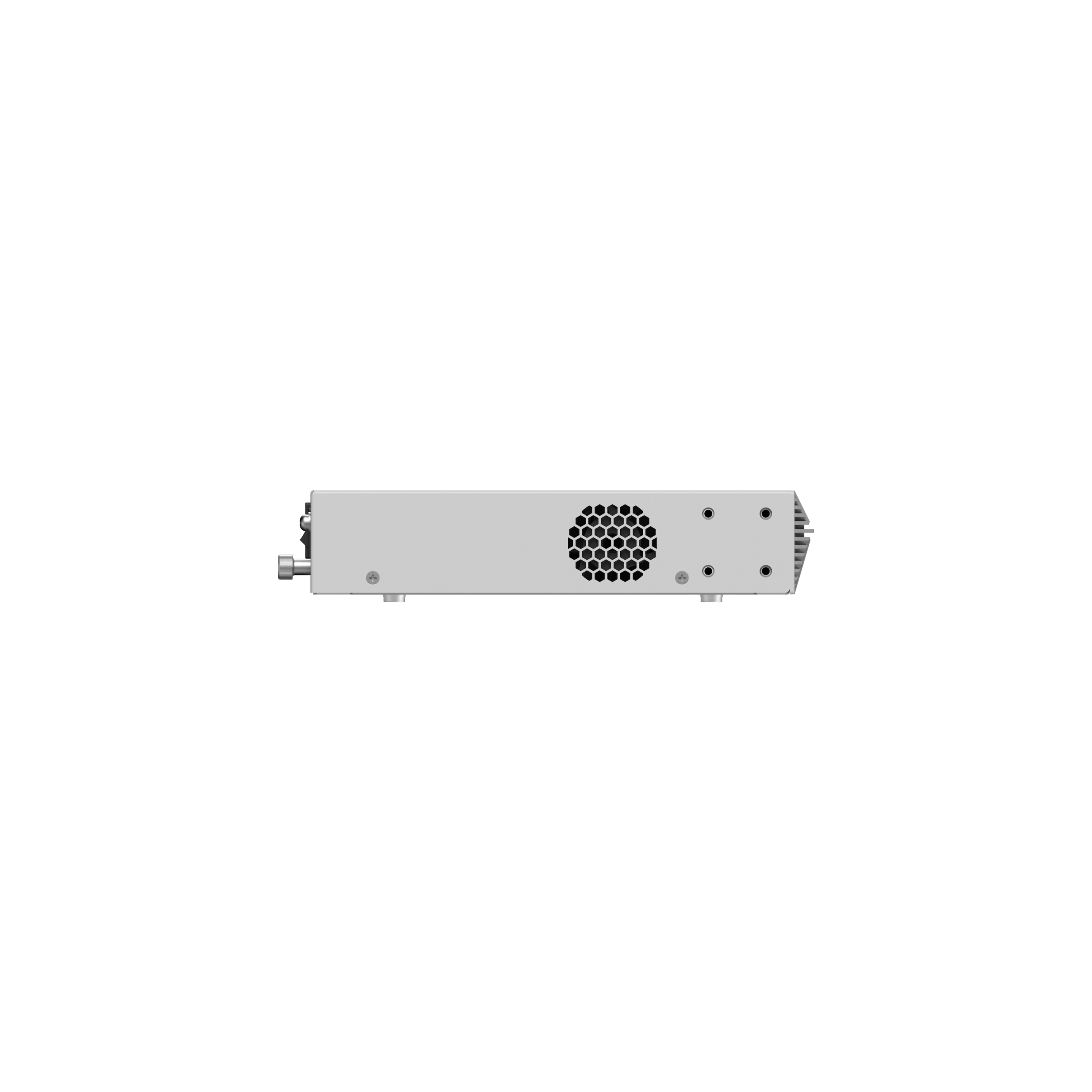

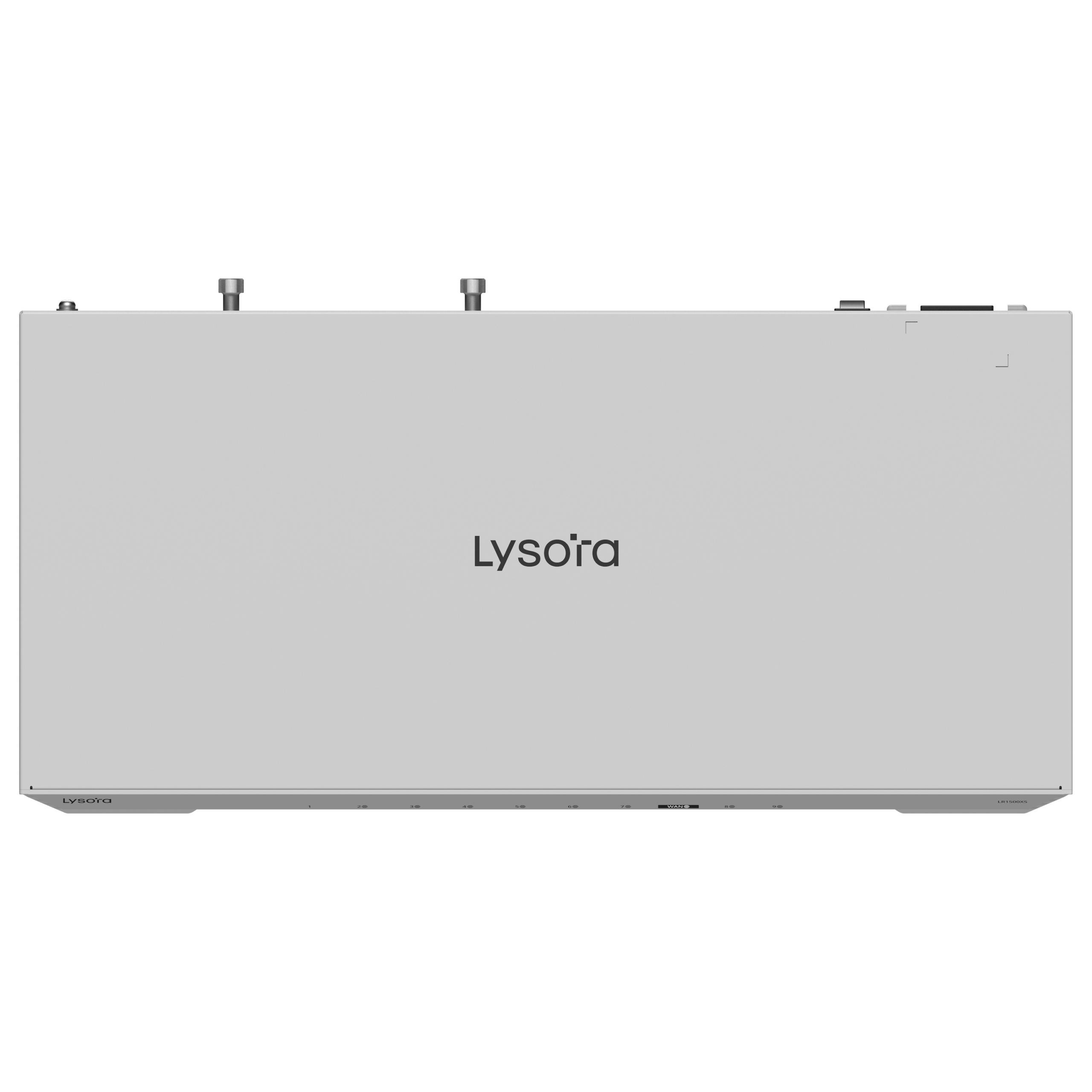

Product dimensions
440 mm x 210 mm x 43.6 mm (15.75 in. x 8.27 in. x 1.72 in.)
Weight
3.82 kg (8.42 lbs) (with packaging materials)
3 kg (6.61 lbs) (without packaging materials)
Port Specifications
Total number of RJ45 ports
8
Total number of optical ports
2
Number of 1GE SFP ports
-
Number of 10GE SFP+ ports
2
Number of 10/100/1000BASE-T ports
4
Number of 10/100/1000/2500BASE-T ports
4
Number of 100/1000/2.5G/5G/10GBASE-T ports
-
Maximum number of LAN port
9
Maximum number of WAN ports
9
Number of fixed LAN ports
1
Number of fixed WAN ports
1
Number of LAN/WAN ports
8
PoE Specifications
Number of PoE/PoE+ Out ports
-
Number of PoE/PoE+/PoE++ Out ports
-
PoE budget
-
PoE power pins
-
Enclosure Material
Metal
Mounting Type
Desktop Mounting
Warranty
3 years
Hardware
System Specifications
CPU
Quad-core processor, 1.8 GHz clock frequency per core
Flash memory
128 MB
RAM
4 GB
eMMC
8 GB
USB port
-
Hard disk
1 x standard SATA 3.0 HDDs
LEDs
1 x system status LED
10 x Ethernet port LEDs
1 x HDD LED
Buttons
1 x reset button
System Performance Capacity
Maximum number of concurrent sessions
300000
Recommended number of concurrent clients
1500
Throughput
4000 Mbps

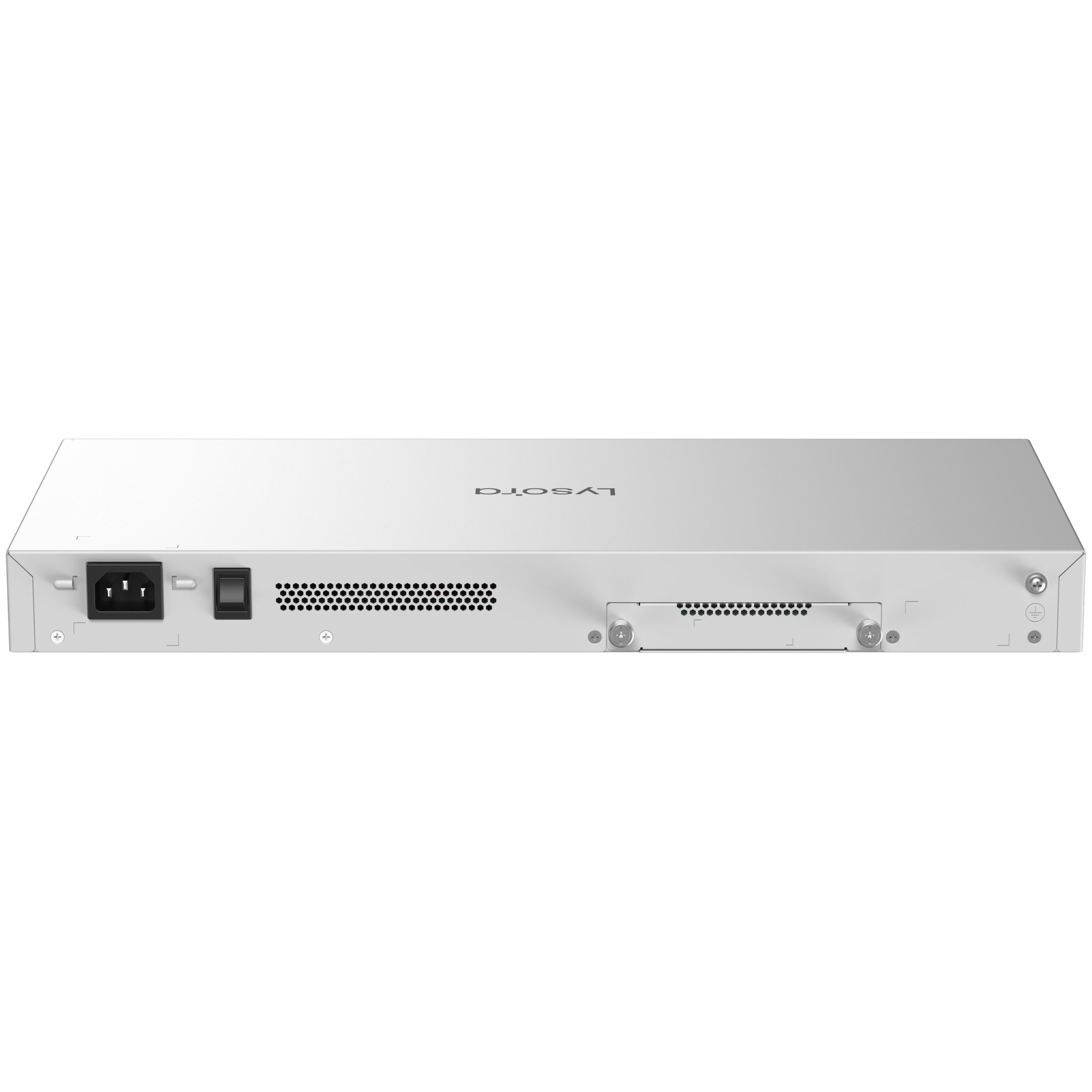

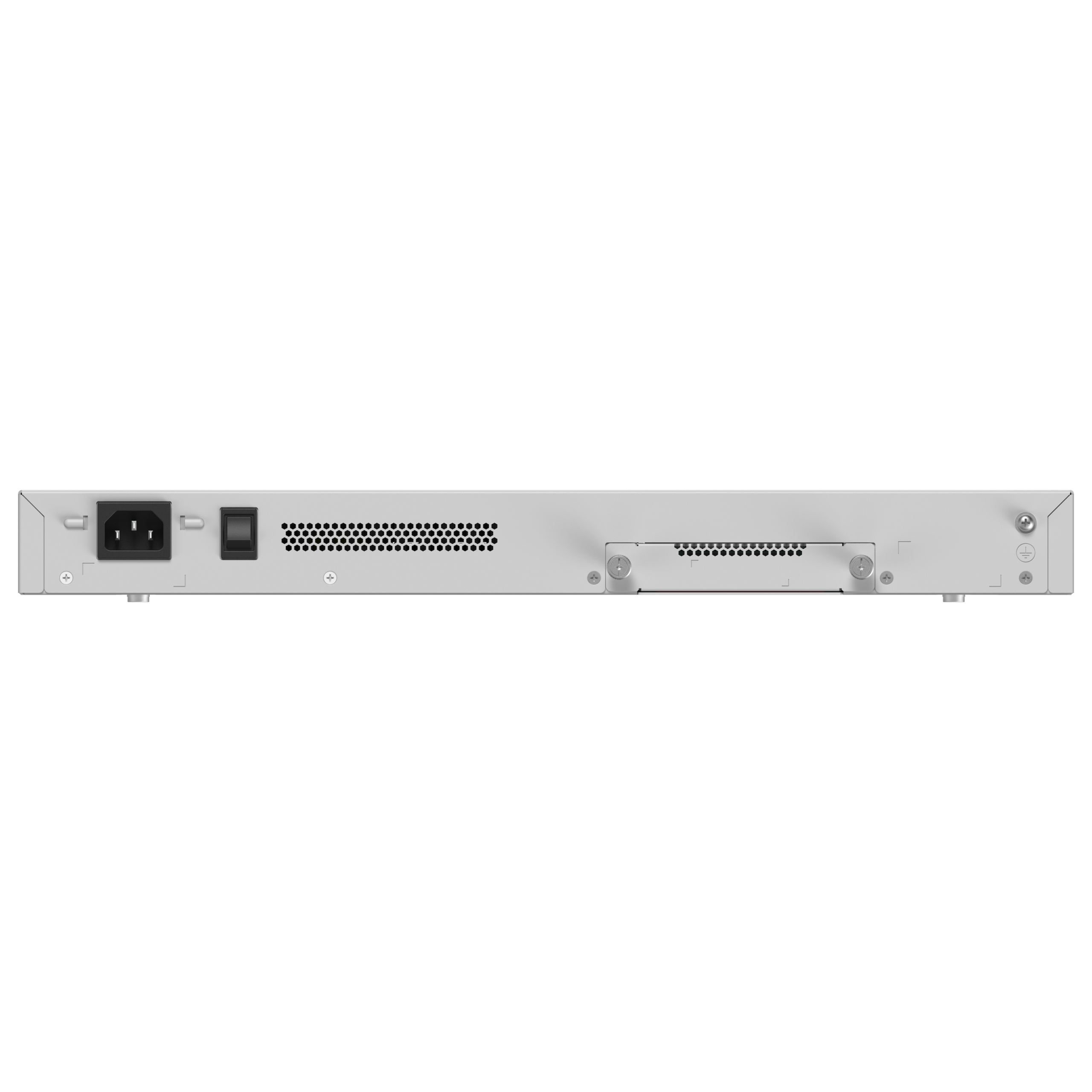

Power supply and Consumption
Power Method
220 V AC power supply:
Voltage: 100 V AC to 240 V AC
Frequency: 50 Hz to 60 Hz
Rated input current: 1.5 A
Dimensions of the DC connector
N/A
Max. Power Consumption
18 W
Environment and Reliability
Surge protection
Service port: ±6 kV for common mode
Power connector: ±6 kV for common mode and ±6 kV for differential mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Operating humidity
10% RH to 90% RH (non-condensing)
Storage humidity
5% RH to 95% RH (non-condensing)
Fan
Fanless design
Cooling
Natural cooling
ESD protection
Contact discharge: 6 kV
Air discharge: 8 kV
Software
Basic Configurations
Working mode
AC mode
Routing mode
Internet access mode
PPPoE
DHCP
Static IP
Self Organizing Netowk
Yes
Maximum number of devices that can be managed
128
Maximum number of APs (routing mode)
1000
Maximum number of APs (AC mode)
1000
Ethernet Switching
VLAN
Yes
Maximum number of VLANs supported by all LAN interfaces
128
LLDP
No
RLDP
No
STP
No
IP Routing
Load balancing
Yes
Static routing
IPv4 and IPv6 Static route
Maximum number of IPv4 static routes
500
Maximum number of IPv6 static routes
500
PBR
IPv4 and IPv6 PBR
Number of IPv4 PBR entries
30
Number of IPv6 PBR entries
30
URL-based routing
Yes
RIP
Yes
Number of RIP routes
1000
BGP
Yes
Number of BGP routes
10000
OSPF
Yes
Number of OSPFv2 instances
16
Number of OSPF neighbors on a point-to-point interface
64
Number of OSPFv3 routes
10000
Number of dynamic IPv4 routes
1000
Number of dynamic IPv6 routes
1000
IS-IS
No
Security
ACL
Yes
DHCP snooping
No
IP-MAC binding
Yes
MAC address filtering
Yes
Security zone
Yes
Local attack defense
Yes
Limiting the number of connections
Yes
Multicast rate limit
No
Network sharing prevention
Yes
Authentication
Local portal authentication
SMS-based authentication
One-click authentication
Authorization-based authentication
QR code authentication
Authentication (IP address-based) across Layer 3 switches
Self-service logout
Cloud portal authentication
Custom portal page
Delivery through cloud portal page
One-click login to cloud portal page
Account-based authentication
Voucher authentication
SMS-based authentication supported by cloud portal page
Third-party authentication
WISPr for third-party portal authentication
Wi-FiDog for third-party portal authentication
MAB on Cloud
Yes
MAB for local authentication
Yes
MAB for RADIUS-based authentication
Yes
802.1X authentication
Yes
PPPoE authentication
Yes
VPN & VPN Performance
Site-to-Site VPN
IPsec VPN
WireGuard
Client-to-Site VPN
L2TP VPN
L2TP over IPSec VPN
OpenVPN
PPTP VPN
WireGuard
L2TP VPN bandwidth
1150 Mbps
PPTP VPN bandwidth
1450 Mbps
OpenVPN bandwidth
300 Mbps
IPsec VPN bandwidth
730 Mbps
IPv6 IPsec VPN bandwidth
900 Mbps
WireGuard performance
1200 Mbps
L2TP over IPsec bandwidth
750 Mbps
SD-WAN
Yes
SD-WAN performance
1200 Mbps
Gateway Features
User Behavior Management (UBM)
Yes
Application control
Yes
Flow control
Yes
Traffic audit
Yes
Audit log
Yes
Local storage of traffic audit logs
Yes
IP Service
ARP
Yes
Proxy ARP
No
Maximum number of ARP entries
4096
DDNS
Yes
DHCP
Yes
DNS
Yes
IPTV
Yes
IPv4/IPv6
Yes
NAT
Yes
Number of port mapping entries
512
UPnP
Yes
Multicast
No
WLAN
AP management
Wi-Fi
RF parameters
Managing clients
Configuring an allowlist and a blocklist
802.1X authentication
AP Mesh
WQoS
802.11k/v roaming
AP portal authentication
AP load balancing
AP LEDs
Layer 2 isolation
Configuring the power supply mode of the AP on Cloud
Maximum number of SSIDs
8
Client association
Yes
Network Management and Monitoring
Web management
Yes
Cloud management
Upgrading device software version through App
Restarting devices through App
Remotely monitoring devices through App
Self organizing network through code scanning
Cloud-based O&M
Cloud-based upgrade
Management on App
Yes
Web login information
Yes
HTTP login
Yes
HTTPS login
Yes
NTP
NTP client
Fault diagnosis
Yes
Telnet
No
SSH
No
File transfer
No
Syslog
Yes
SNMP
Yes
RLOG
Yes
Fan speed adjustment
No
Fault self-diagnosis
Yes
Stacking
No
VRRP
No
Compliance and Standard
Certification and Regulatory Compliance
NDAA Compliant
Yes
EMC
FCC Part 15B
Safety compliance
UL 62368-1
Certification
FCC, IC, cTUVus
Package Contents
Device
Device
1
Manual
User Manual
1
Warranty Card
1
Accessories
Rubber pad
4
Power cord retention clip
1
Screw
8 X M4 x 8 mm cross recessed countersunk head screws-
Grounding cable
-
Power cord
1 x 1.8 m (70.86 in.)31.49 in. x 1 pieces
Rack-mount bracket
2
