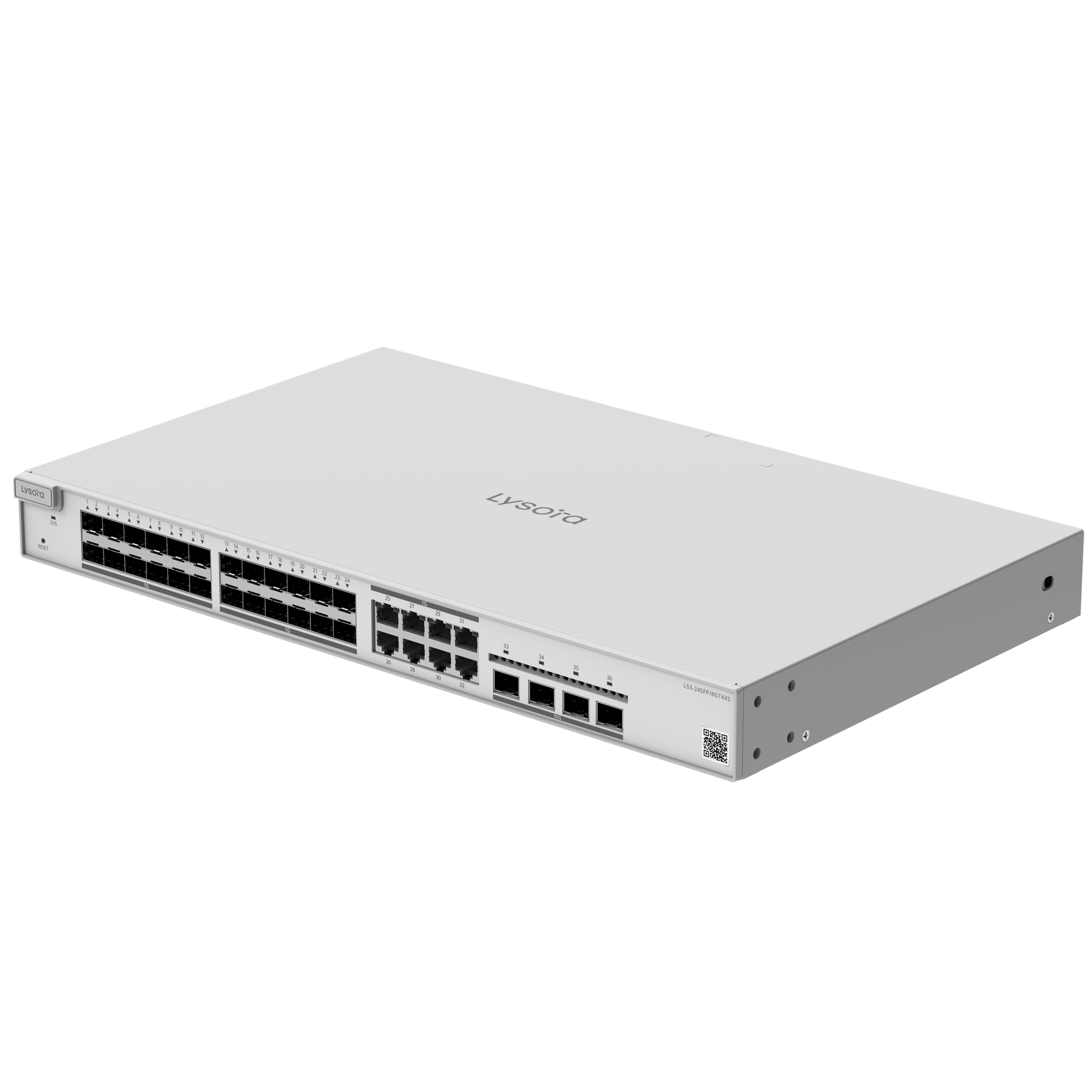

Lysora – LS3-24SFP/8GT4XS

Overview

Dimensions

440 mm x 267.5 mm x 43.6 mm (17.32 in. x 10.53 in. x 1.72 in.)

Weight

4.9 kg (10.8 lbs) (with packaging materials)
3.35 kg (7.39 lbs) (without packaging materials)

Port Specifications

Total number of RJ45 ports

8 (including eight combo ports)

Total number of optical ports

28 (including eight combo ports)

Number of 1GE combo ports

8

Number of 1GE SFP ports

24 (including eight combo ports)

Number of 10GE SFP+ ports

4

Number of 10/100BASE-T ports

-

Number of 10/100BASE-T ports

8 (including eight combo ports)

Number of 10/100/1000/2500BASE-T ports

-

Number of 100/1000/2.5G/5G/10GBASE-T ports

-

PoE Specifications

Number of PoE/PoE+ Out ports

-

Number of PoE/PoE+/PoE++ Out ports

-

PoE budget

-

PoE power pins

-

Enclosure Material

Metal

Mounting

Rack/Desk

Warranty

3 years

Hardware

System Specifications

Switching capacity

128 Gbps(bit/s)

Forwarding rate

95.23 Mpps

Buffer size

12 Mbit

CPU

single-core processor, 800 MHz clock frequency

RAM

512 MB

Flash memory

256 MB

System Performance Capacity

Recommended camera limit

200 W H265: 350
400 W H265: 170

Power supply and Consumption

Power Method

220 V AC power supply:
● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 2 A

Max. Power Consumption

41.8 W

Heat Dissipation

142.96 BTU/hr (220V/50Hz)

Environment and Reliability

Surge protection

Service port: ±6 kV for common mode
Power connector: ±6 kV for both common mode and differential mode

Operating temperature

0°C to +50°C (32°F to 122°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% RH to 95% RH (non-condensing)

Fan

2 x fixed fans

Cooling

Air cooling, left-to-right airflow

Altitude

Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

MTBF

400,000 hours

ESD protection

Contact discharge: 6 kV
Air discharge: 8 kV

Software

Ethernet Switching

Maximum number of VLANs

4094

Maximum number of MAC address entries

16000

Interface flow control

Yes

MAC address-based VLAN

No

IP subnet–based VLAN assignment

No

Port-based VLAN

Yes

IEEE 802.1Q VLAN

Yes

Basic QinQ

No

Voice VLAN

Yes

STP,RSTP,MSTP

Yes

LLDP/LLDP-MED

Yes

Static MAC address

Yes

MAC address filtering

Yes

Static aggregation

Yes

LACP

Yes

Inbound or outbound rate limiting based on interface traffic

Yes

IP Service

Maximum number of ARP entries

2000

IPv4 routing table size (host route)

6000

ARP

Yes

IPv4 ping

Yes

IPv4 traceroute

Yes

ICMPv6

Yes

IPv6 ping

Yes

IPv6 traceroute

Yes

DNS client

Yes

DNSv6 client

Yes

DHCP relay

Yes

DHCP server

Yes

DHCP client

Yes

IP Routing

IPv4 static route

Yes

Maximum number of IPv4 static routes

500

IPv6 static route

Yes

Maximum number of IPv6 static routes

128

IPv4 routing table size (network route)

6000

IPv6 routing table size (network route)

128

OSPFv2

Yes

OSPFv3

Yes

Multicast

IGMPv1 snooping

Yes

IGMPv2 snooping

Yes

Basic IGMPv3 snooping

Yes

Full IGMPv3 snooping

Yes

IGMP filtering

Yes

IGMPv1, v2, and v3

Yes

ACL and QoS

Standard ACL

Yes

Extended ACL

Yes

802.1p priority-based traffic classification

Yes

DSCP priority-based traffic classification

Yes

Egress queues based on 802.1p and DSCP priorities

Yes

Egress queues based on IP precedences

No

Ingress flow-based rate limiting

No

Queue scheduling

Yes

DRR

No

SP

Yes

SP+DRR

No

SP+WFQ

No

SP+WRR

Yes

WFQ

No

WRR

Yes

Congestion avoidance: tail drop

Yes

Security

802.1X authentication

Yes

Inaccessible Authentication Bypass (IAB)

Yes

MAC address-based 802.1X authentication

Yes

Port-based 802.1X authentication

Yes

Authentication, Authorization, and Accounting (AAA)

No

Radius

Yes

Port isolation

Yes

Broadcast storm control

Yes

Multicast storm control

Yes

Unknown unicast storm control

Yes

DHCP snooping

Yes

IP-MAC-port binding

Yes

ARP anti-spoofing

Yes

IP source guard

Yes

CPU Protection Policy

Yes

Reliability

VCS

Yes

Number of VCS members

2

DHCP server hot standby

Yes

System dual backup

Yes

Cloud-based auto-recovery

Yes

Loop Prevetion

Yes

Network Management and Monitoring

Web management

Yes

Cloud management

Yes

App management

Yes

Mirroring

Yes

Self-Organizing Network

Yes

Fan speed adjustment

-

HTTPS login

Yes

RLOG

Yes

Syslog

Yes

PoE service failure

Yes

PoE power overload

Yes

SNMPv1, v2c, and v3

Yes

NTP client

Yes

Camera detection

Yes

Basic Configurations

PoE watchdog

No

Local upgrade

Yes

Online upgrade

Yes

Interface

Jumbo frame length (MTU)

9216 bytes (global configuration mode)

EEE

Yes

Cable test

Yes

Compliance and Standard

Certification and Regulatory Compliance

NDAA Complaint

Yes

EMC

FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7

Safety compliance

UL 62368-1:2019

Certification

FCC, IC, cTUVus

Package Contents

Device

1

Manual

User Manual

1

Warranty Card

1

Accessories

Rubber pad

4

Power cord retention clip

1

Screw

8 M4 x 8 mm cross recessed countersunk head screws

Grounding cable

1 x 1 m (3.28 ft.)

Power cord

1 x 1.5 m (4.92 ft.)

Rack-mount bracket

2
