L7-W

Wi-Fi 7 BE3600 Dual-Band Wall-Plate Access Point

Wi-Fi 7 BE3600 dual-band wall-plate access point
Up to 4 spatial streams
1 x 100/1000/2500BASE-T port and 4 x 10/100/1000BASE-T ports (with 1 port supporting PoE Out )
Unified networking and management based on Lysora Cloud App
Max power consumption < 15 W（when the PoE output of LAN 4 port is disabled)

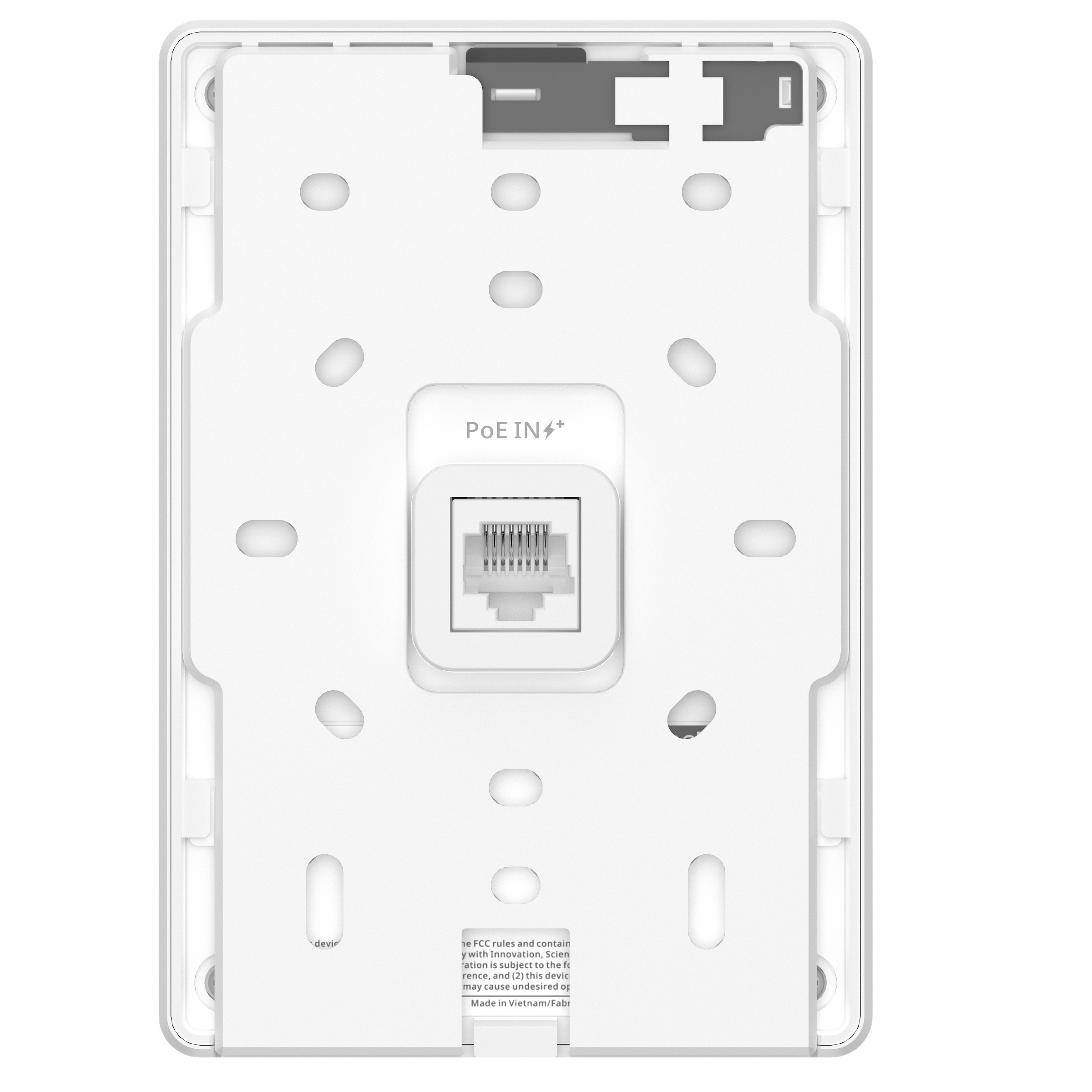

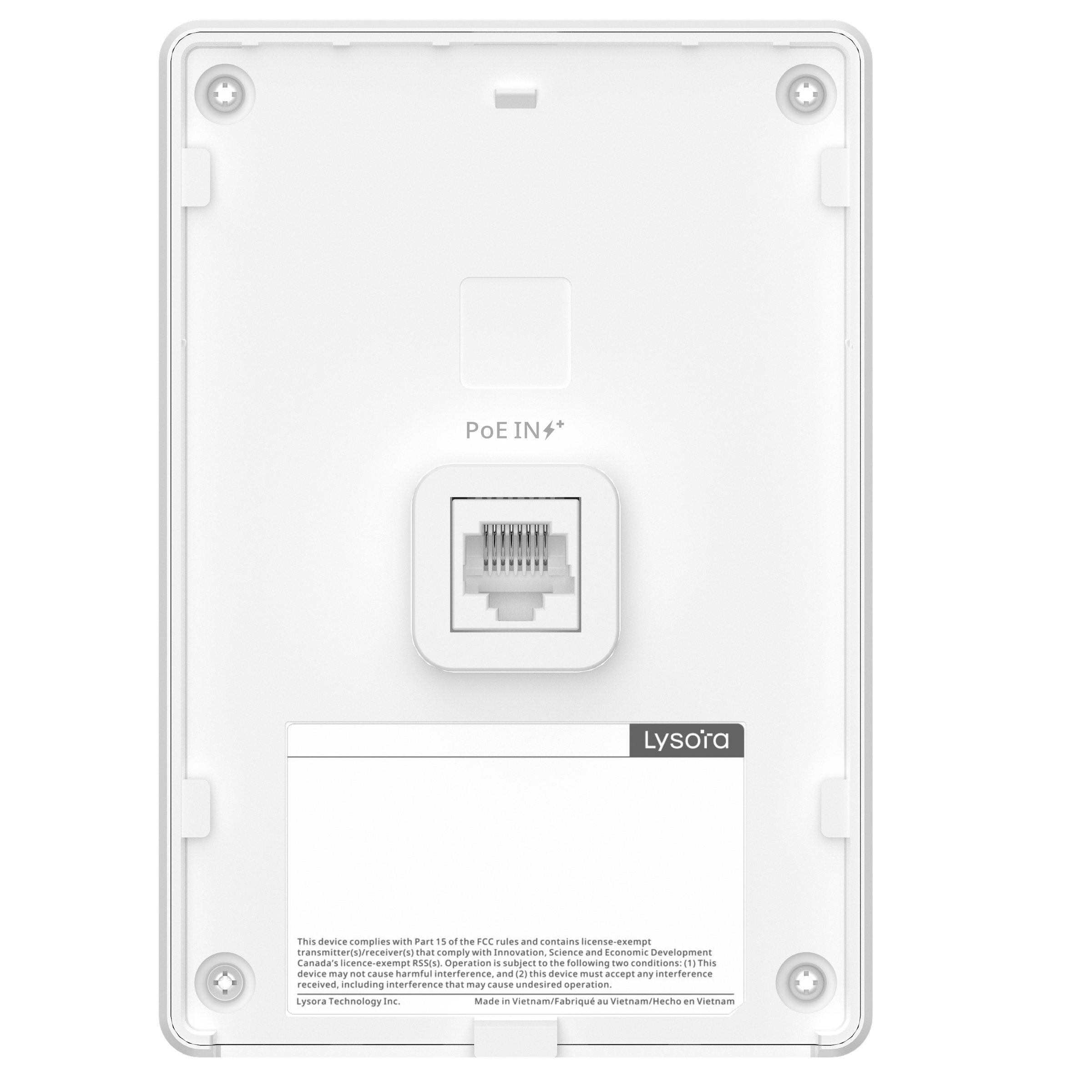

802.3af/at PoE In

Technical

Overview

Dimensions

86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.)

Weight

≤ 0.27 kg (0.60 lbs.) (without packaging materials)

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Spatial Streams

Coverage Range

55 ㎡ (592.02 square ft.)
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference.

Max.Client Count

64 (2.4 GHz)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)

Recommended number of associated wireless clients

● Support for IEEE 802.11ax and 160 MHz:
16 (2.4 GHz)
94 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ax and 80 MHz:
16 (2.4 GHz)
64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ac:
8 (2.4 GHz)
32 (5 GHz)
40 (2.4 GHz and 5 GHz enabled)

Mounting

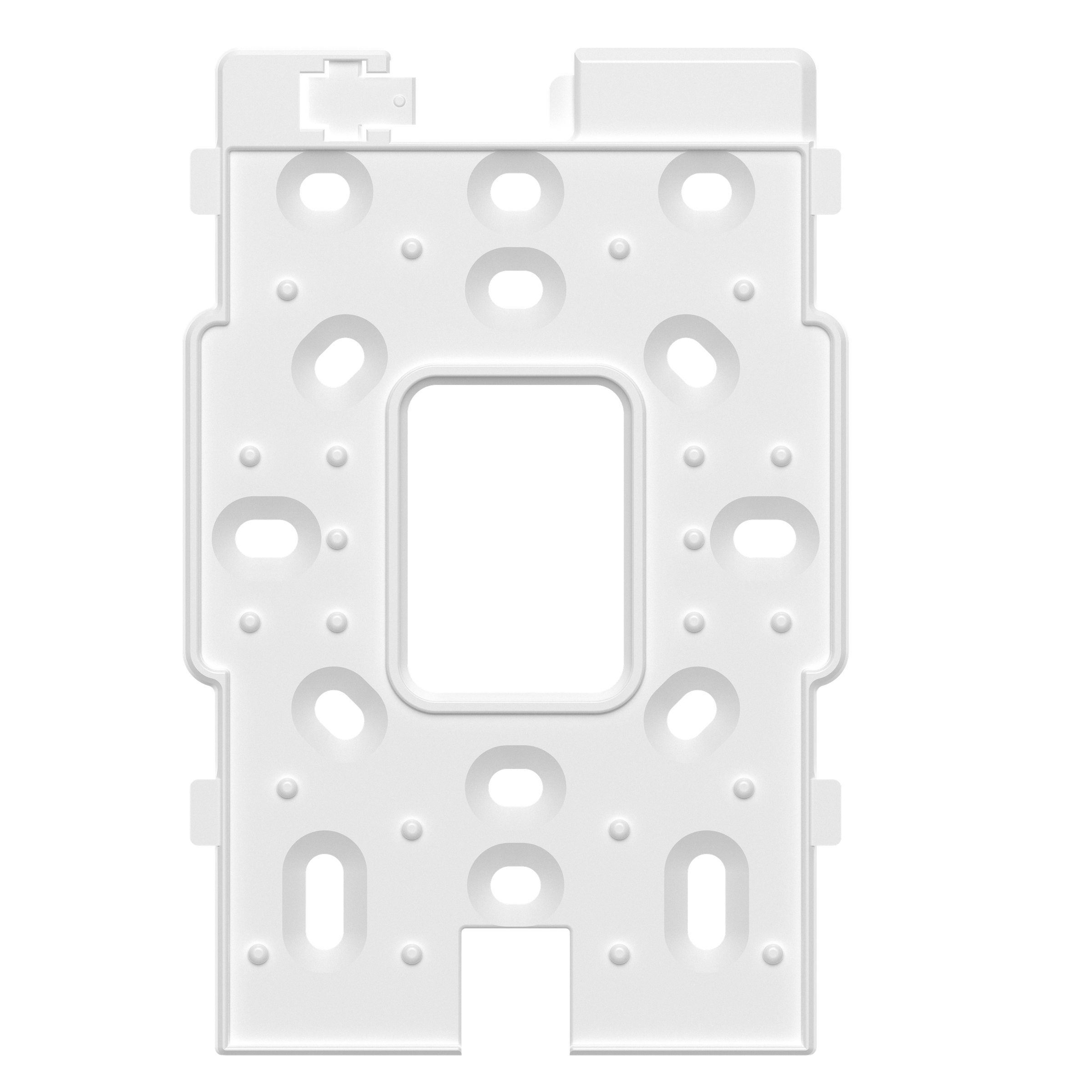

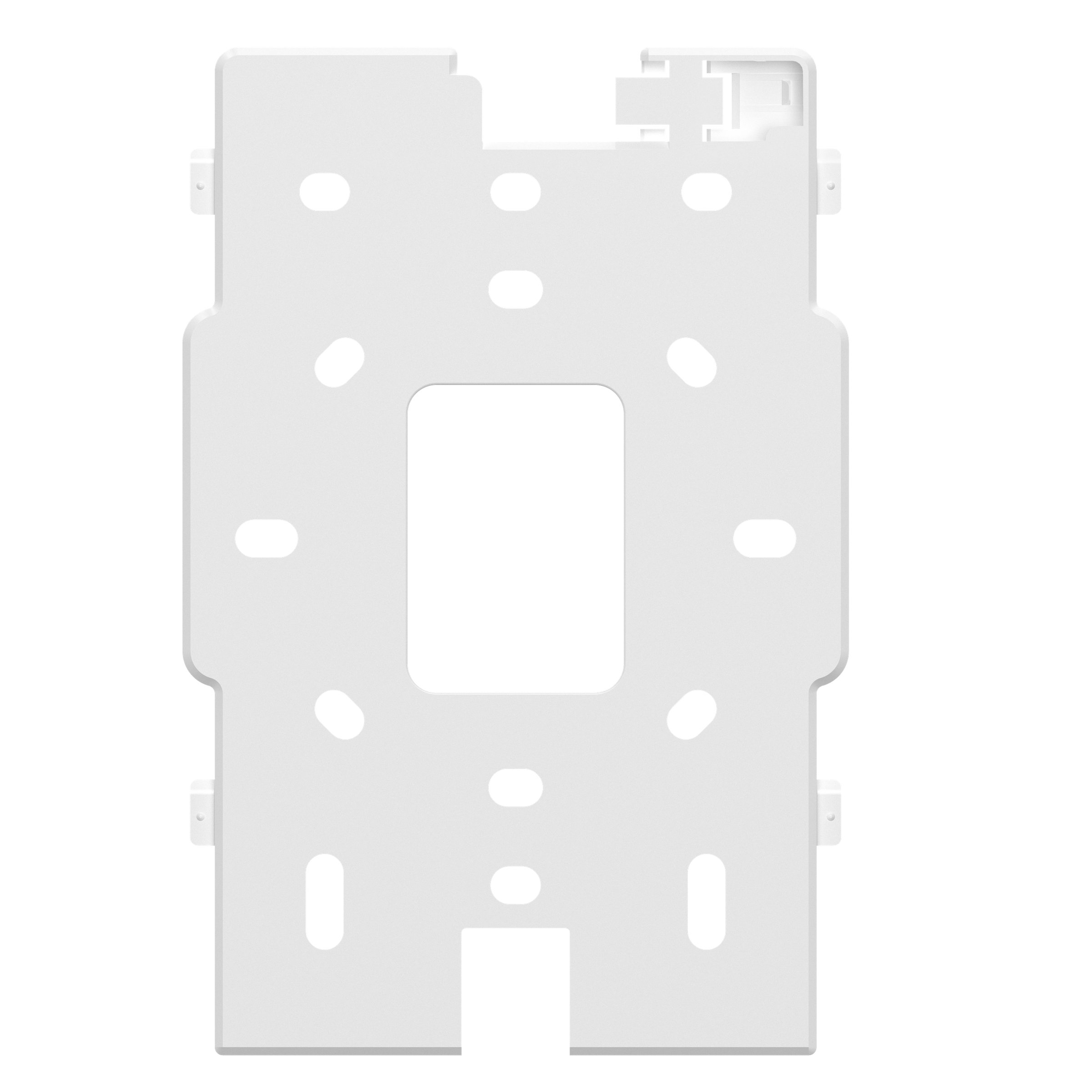

Wall (Mounts Included)

Hardware

Networking Interface

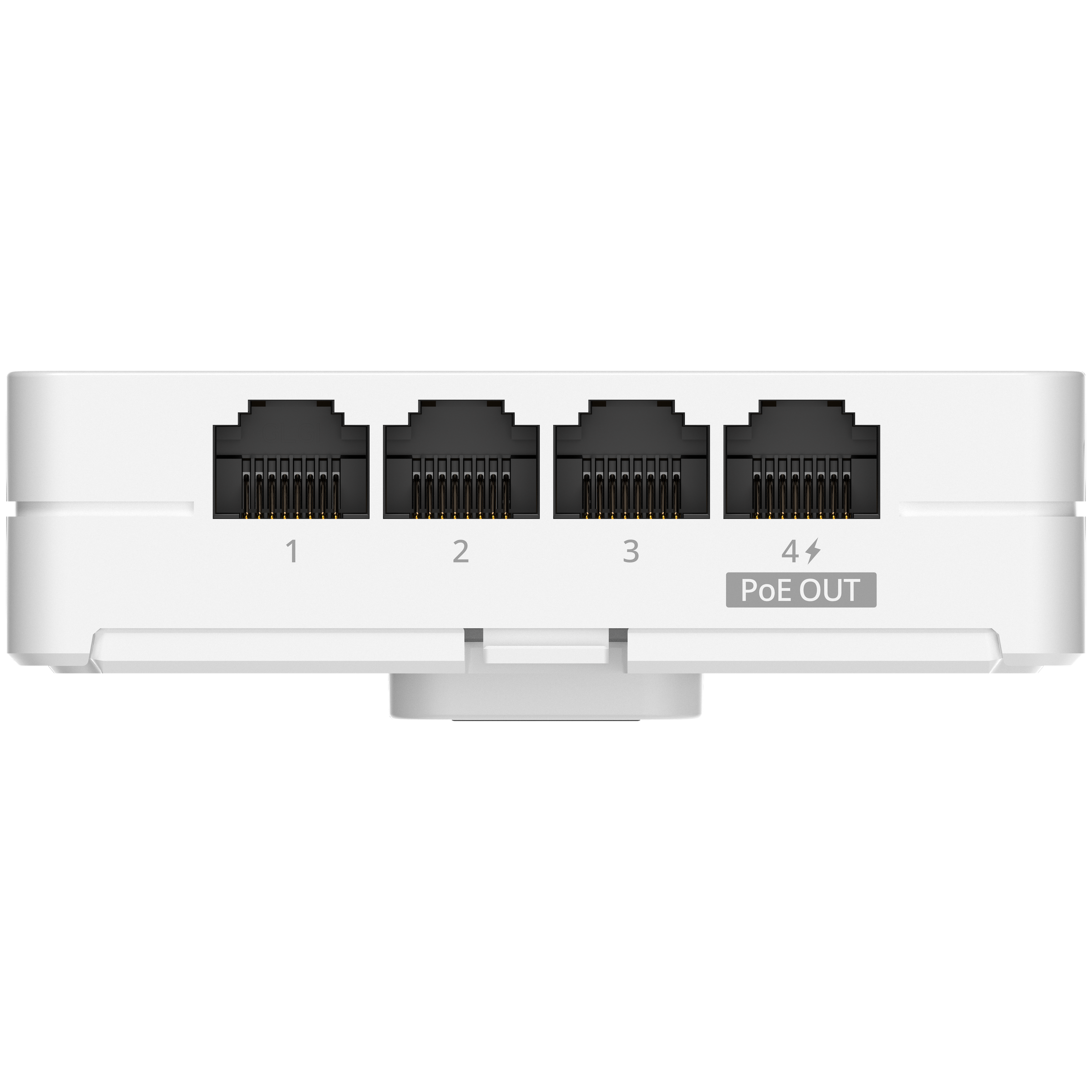

4 x 10/100/1000BASE-T LAN port（1 x AF PoE-Out Port） + 1 x 10/100/1000/2500BASE-T WAN port

Wi-Fi Protocols

2.4 GHz: IEEE 802.11 b/g/n/ax/be
5 GHz: IEEE 802.11 a/n/ac/ax/be

MIMO

2.4 GHz: 2 x 2, MU-MIMO
5 GHz: 2 x 2, MU-MIMO

Channel bandwidth

2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHz

Wireless Data Rate

2.4 GHz: 688 Mbps
5 GHz: 2882 Mbps

Antenna Gain

2.4 GHz: 2.84 dBi
5 GHz: 4.56 dBi

Max. Transmit Power

2.4 GHz: 20 dBm
5 GHz: 21.7 dBm

Power Consumption

≤ 15 W (excluding PoE output)

Power Method

PoE+

Modulation

OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA

Receiver Sensitivity

11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps)
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)
11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)
11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13)
11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13)
11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13)
11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)

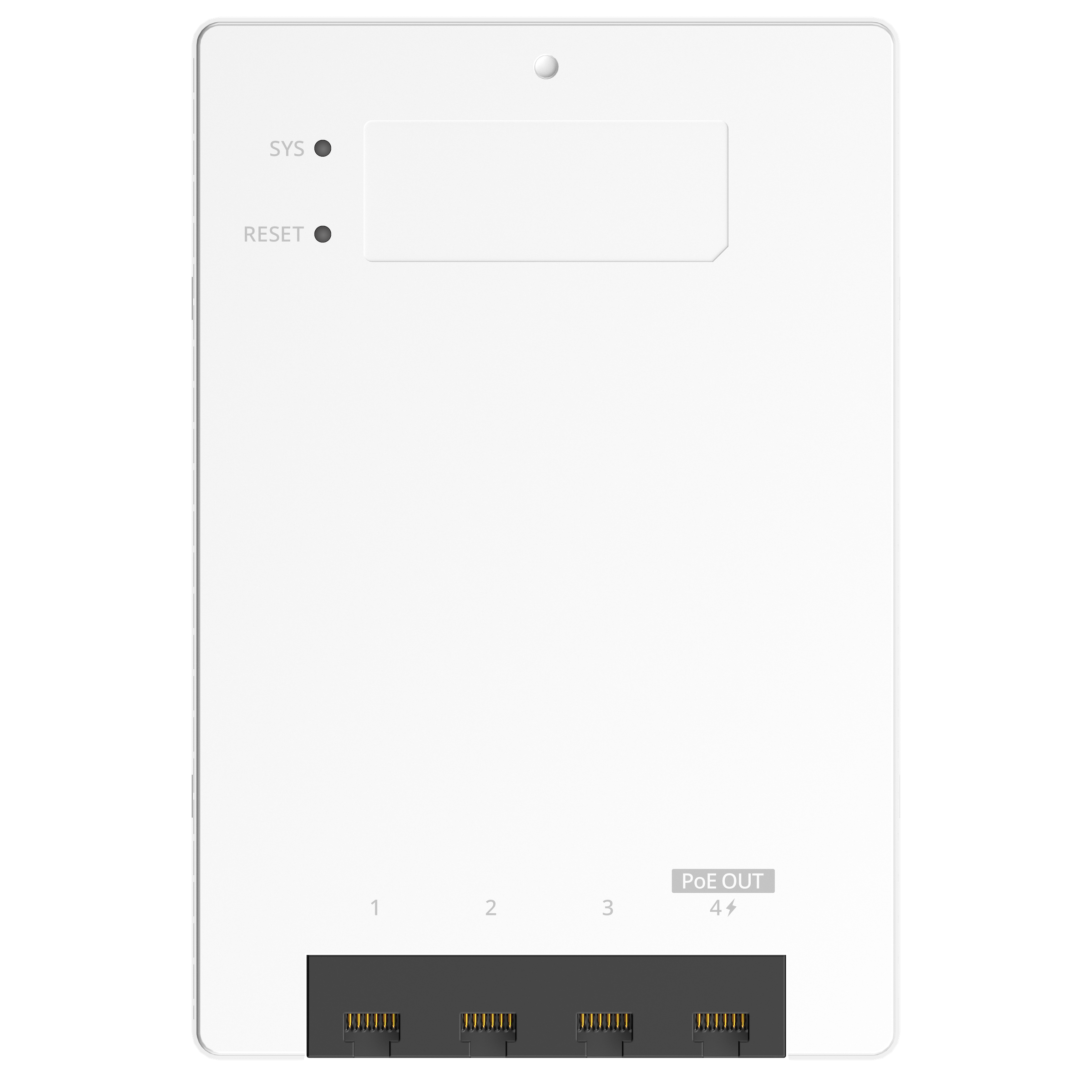

LED

1 x System Status LED

Button

1 x Reset button

Environment

Operating Temperature: 0°C to +40°C (32°F to +104°F)
Storage Temperature: –40°C to +70°C (–40°F to +158°F)
Operating Humidity: 5% RH to 95% RH (Non-condensing)
Storage Humidity: 5% RH to 95% RH (Non-condensing)

Weather Resistance

IP Rating: IP41
Lightning Protection/Surge Protection: ±2 kV

Software

Working Mode

Router Mode

YES

AP Mode

YES

WLAN

Max. Number of SSIDs

Band Steering

YES

Wireless Meshing

YES

Wi-Fi Multimedia (WMM)

YES

802.1Q VLAN

YES

Multi-Link Operation (MLO)

YES

4K-QAM

YES

RF Beamforming

YES

WiFi Speed Limiting

YES

Client Device Isolation

YES

WiFi Schedules

YES

Roaming

802.11v

YES

802.11k

YES

802.11r

YES

Layer2 roaming

YES

Layer3 roaming

YES

Security

PSK Authentication

YES

WPA (TKIP), WPA2 (AES), and WPA-PSK

YES

OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE

YES

802.1X

YES

Ping

YES

Traceroute

YES

Routing

NAT

YES

Static IP address

YES

DHCP Server

YES

PPPoE Client
PPPoE Dial-up

YES

AP Mesh

Mesh Management

YES

Standalone Portal

Captive Portal

YES

Bandwidth Limiting

YES

Data Quota

Management and Maintenance

Number of APs on a Self-Organizing Network

300

Unified Networking for All Network Equipment

YES

Local or Remote Management through Lysora App

YES

Local Management through the Web Interface

YES

Remote Management through Lysora Cloud

YES

SNMP

YES

Platform Management Features

AI Optimization

YES

Unified Configuration or Monitoring through Lysora Cloud

YES

Compliance and Standard

NDAA Compliant

Yes

Health

UL 62368-1:2019

FCC 47 CFR Part 2 Subpart J
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3

EMC

FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7

Certifications

FCC, IC, cTUVus

Operating Frequency

US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
