L7Pro

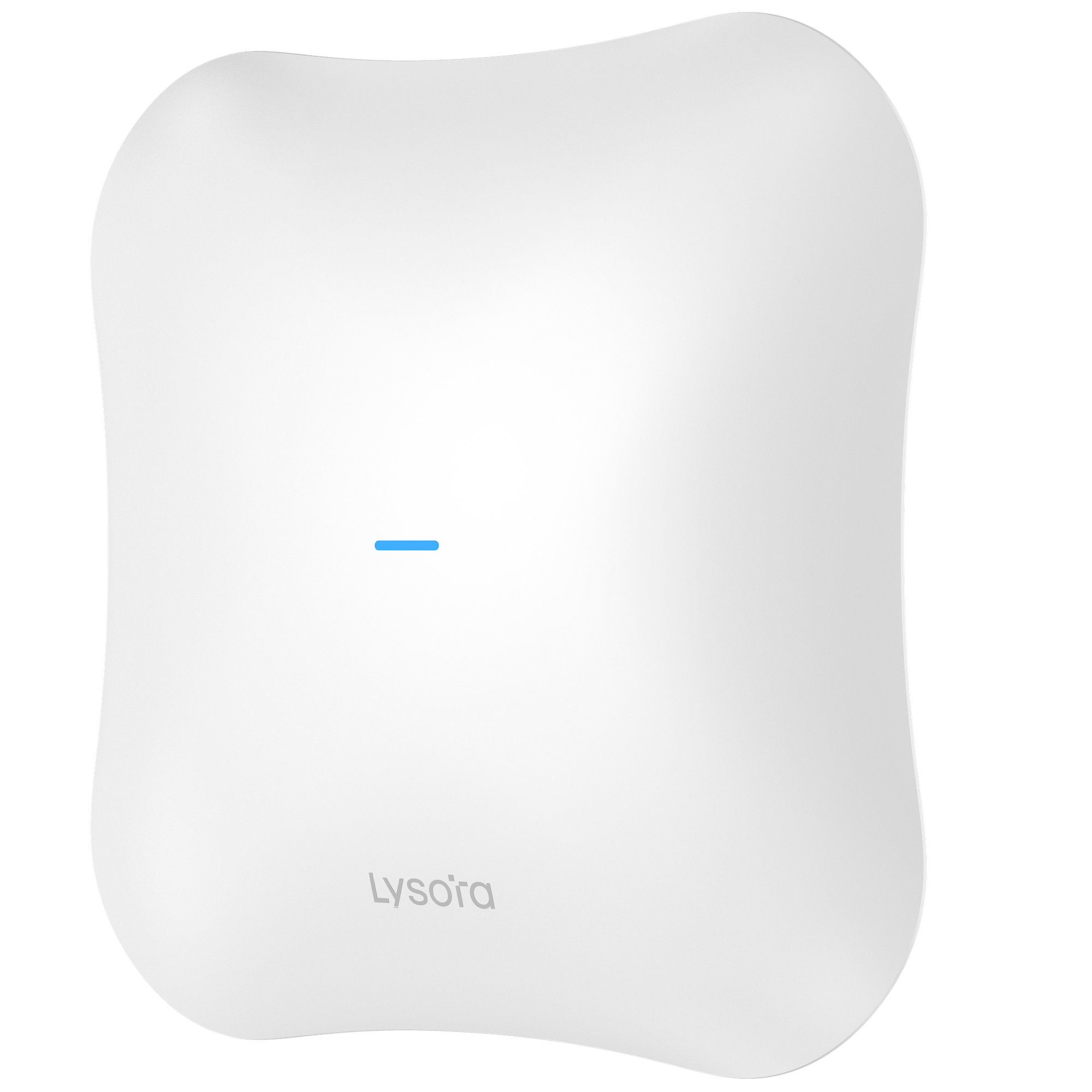

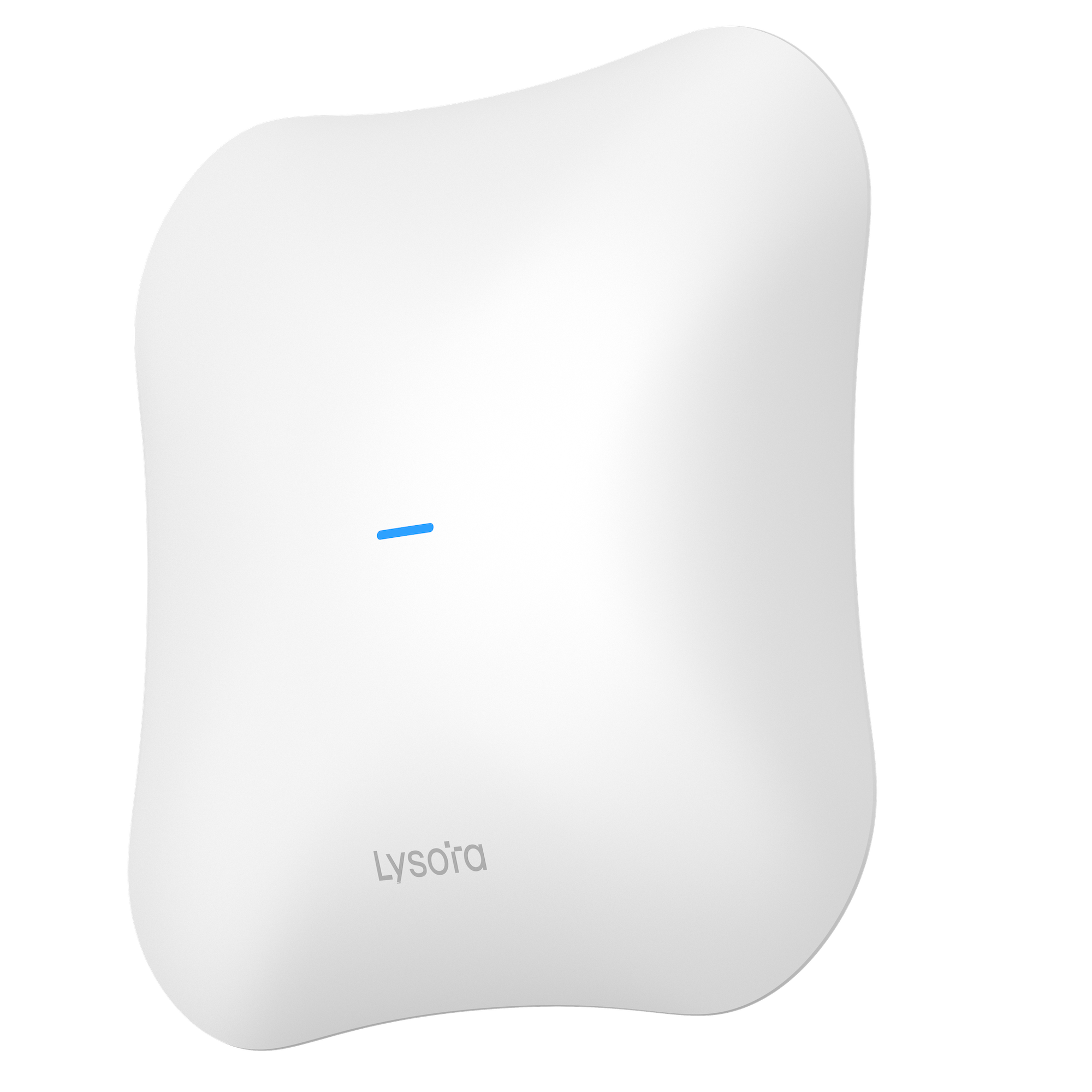

Wi-Fi 7 BE14000 Tri-Band Ceiling Mount Access Point

Wi-Fi 7 BE14000 tri-band ceiling mount access point
Tri-band 2.4 GHz/5 GHz/6 GHz, high throughput with 8 spatial streams

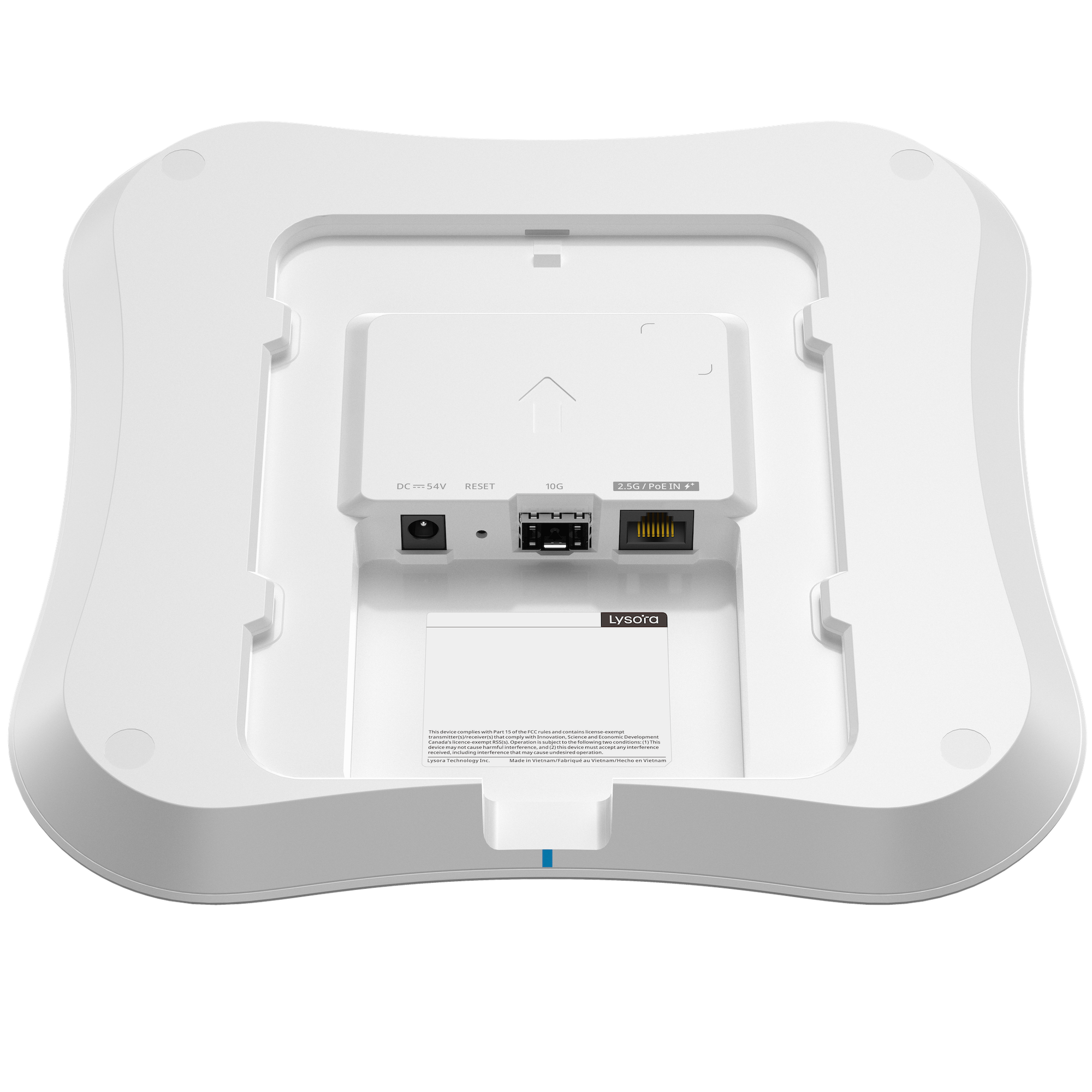

1 x 100/1000/2500BASE-T port and 1 x 10GE SFP+ port
In compliance with 802.11be
AP mode and routing mode
Layer 2 and Layer 3 roaming
Unified networking and management based on Lysora Cloud App
Max power consumption < 30 W; 802.3at PoE In and 54 V DC power supply (PoE injector and DC adapter purchased separately)

Technical

Overview

Dimensions

220 mm x 220 mm x 45 mm (8.66 in. x 8.66 in. x 1.77 in.)

Weight

≤ 1.1 kg (2.43 lbs.)

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Spatial Streams

Coverage Area

145 ㎡ (1560.77 ft².)

Max.Client Count

128 (2.4 GHz)
256 (5 GHz)
256 (6 GHz)
600 (2.4 GHz, 5 GHz, and 6 GHz enabled)

Recommended number of associated wireless clients

●Support for IEEE 802.11ax/be and 160MHz:
16 (2.4 GHz)
84 (5 GHz)
100 (6 GHz)
200 (2.4 GHz, 5 GHz, and 6 GHz enabled)
●Support for IEEE 802.11ax and 80MHz:
16 (2.4 GHz)
64 (5 GHz)
60 (6 GHz)
140 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ac:
16 (2.4 GHz)
64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled)

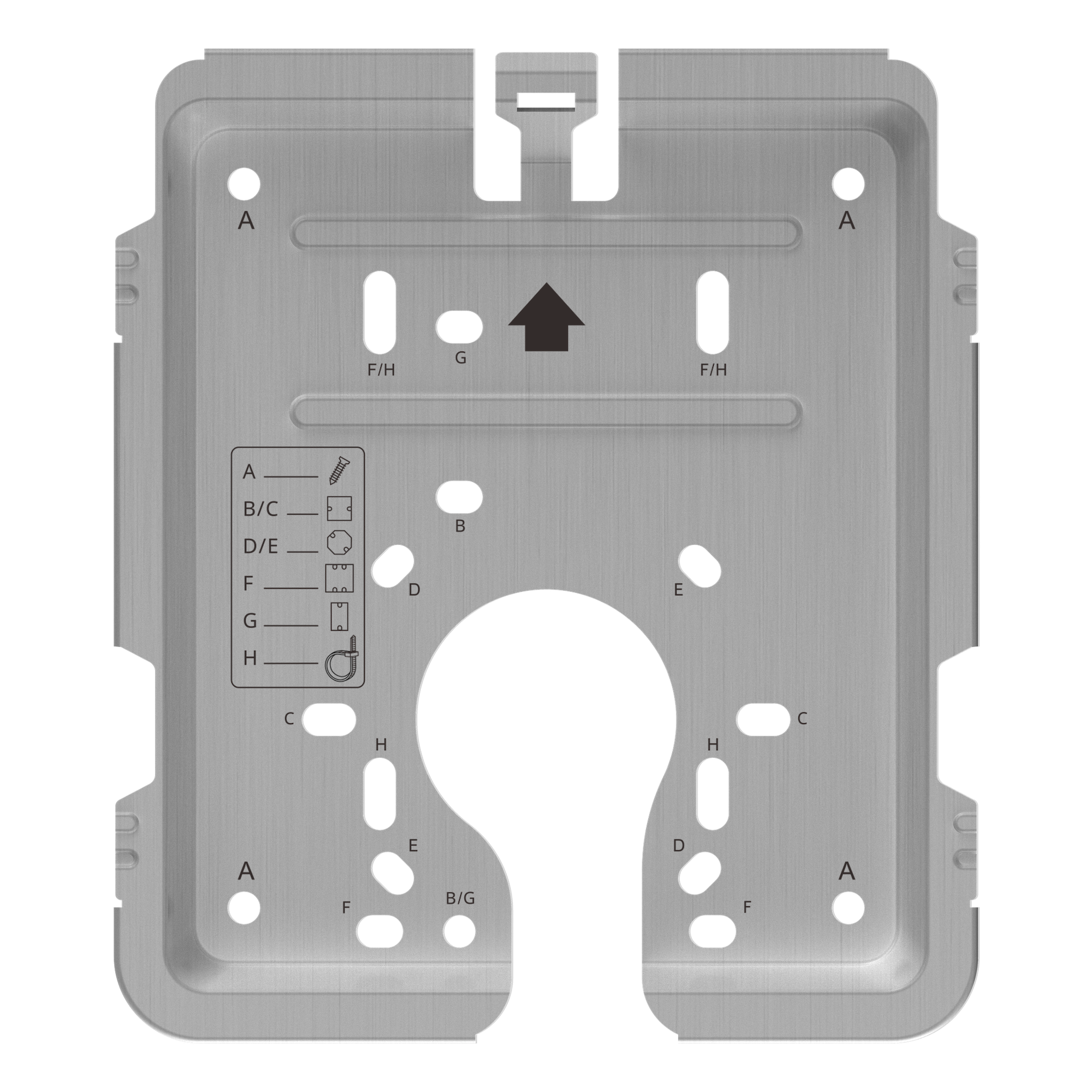

Mounting

Ceiling, Wall (Mounts Included)

Hardware

Networking Interface

1 x 10/100/1000/2500BASE-T port
1 x 10 GE SFP+ port

Wi-Fi Protocols

2.4 GHz: IEEE 802.11 b/g/n/ax/be
5 GHz: IEEE 802.11 a/n/ac/ax/be
6 GHz: IEEE 802.11 a/ax/be

MIMO

2.4 GHz: 2 x 2 MU-MIMO
5 GHz: 3 x 3 MU-MIMO
6 GHz: 3 x 3 MU-MIMO

Channel bandwidth

2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHz
6 GHz: 20/40/80/160/320 MHz

Wireless Data Rate

2.4 GHz: 688 Mbps
5 GHz: 4323 Mbps
6 GHz: 8646 Mbps

Antenna Gain

2.4 GHz: 3.60 dBi
5 GHz: 5.90 dBi
6 GHz: 5.20 dBi

Max. Transmit Power

2.4 GHz: 25 dBm
5 GHz: 25.7 dBm
6 GHz: 22.7 dBm

Power Consumption

≤ 30 W

Power Method

PoE+
DC(54 V, 0.55 A),DC Power Adapter Is Included

Modulation

OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM
OFDMA

Receiver Sensitivity

11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps)
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)
11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)
11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13)
11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13)
11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13)
11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)
11be: 320 MHz: –76 dBm (MCS0), –41 dBm (MCS13)

LED

1 x System Status LED

Button

1 x Reset button

Environment

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: –40°C to +70°C (–40°F to +158°F)
Operating Humidity: 5% RH to 95% RH (Non-condensing)
Storage Humidity: 5% RH to 95% RH (Non-condensing)

Weather Resistance

IP Rating: IP41
Lightning Protection/Surge Protection ±2 kV

Software

Working Mode

Router Mode

YES

AP Mode

YES

WLAN

Max. Number of SSIDs

Band Steering

YES

Wireless Meshing

YES

Wi-Fi Multimedia (WMM)

YES

802.1Q VLAN

YES

Multi-Link Operation (MLO)

YES

4K-QAM

YES

RF Beamforming

YES

WiFi Speed Limiting

YES

Client Device Isolation

YES

WiFi Schedules

YES

Roaming

802.11v

YES

802.11k

YES

802.11r

YES

Layer2 roaming

YES

Layer3 roaming

YES

Security

PSK Authentication

YES

WPA (TKIP), WPA2 (AES), and WPA-PSK

YES

OWE (Enhanced Open) WPA3-SAE WPA2-PSK/WPA3-SAE

YES

802.1X

YES

Ping

YES

Traceroute

YES

Routing

NAT

YES

Static IP address

YES

DHCP Server

YES

PPPoE Client
PPPoE Dial-up

YES

AP Mesh

Mesh Management

YES

Standalone Portal

Captive Portal

YES

Bandwidth Limiting

YES

Data Quota

Management and Maintenance

Number of APs on a Self-Organizing Network

300

Unified Networking for All Network Equipment

YES

Local or Remote Management through Lysora App

YES

Local Management through the Web Interface

YES

Remote Management through Lysora Cloud

YES

SNMP

YES

Platform Management Features

AI Optimization

YES

Unified Configuration or Monitoring through Lysora Cloud

YES

Compliance and Standard

NDAA Compliant

Yes

Health

UL 62368-1:2019

FCC 47 CFR Part 2 Subpart J
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3

EMC

FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7

Certifications

FCC, IC, cTUVus

Operating Frequency

US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
