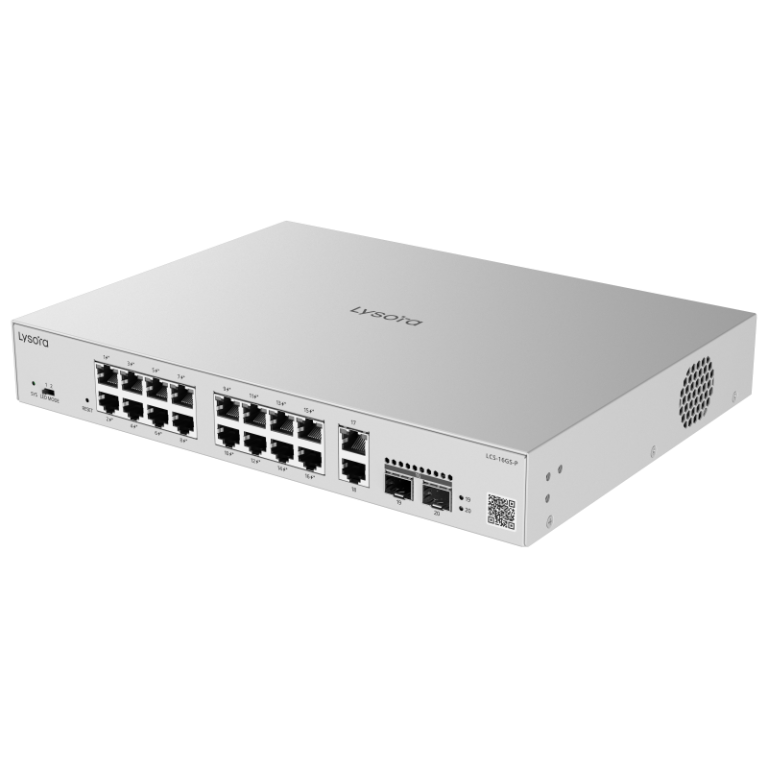

LCS-16GS-P primary image

Switches

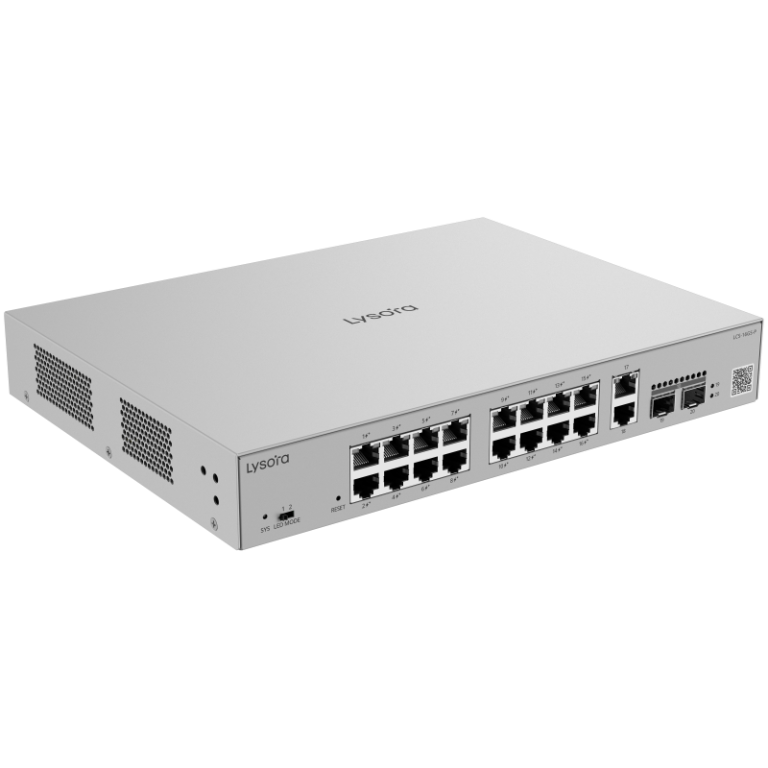

LCS-16GS-P

16-Port Cloud Managed PoE Switch with 250 W PoE Budget

20-Port Gigabit Smart POE Switch

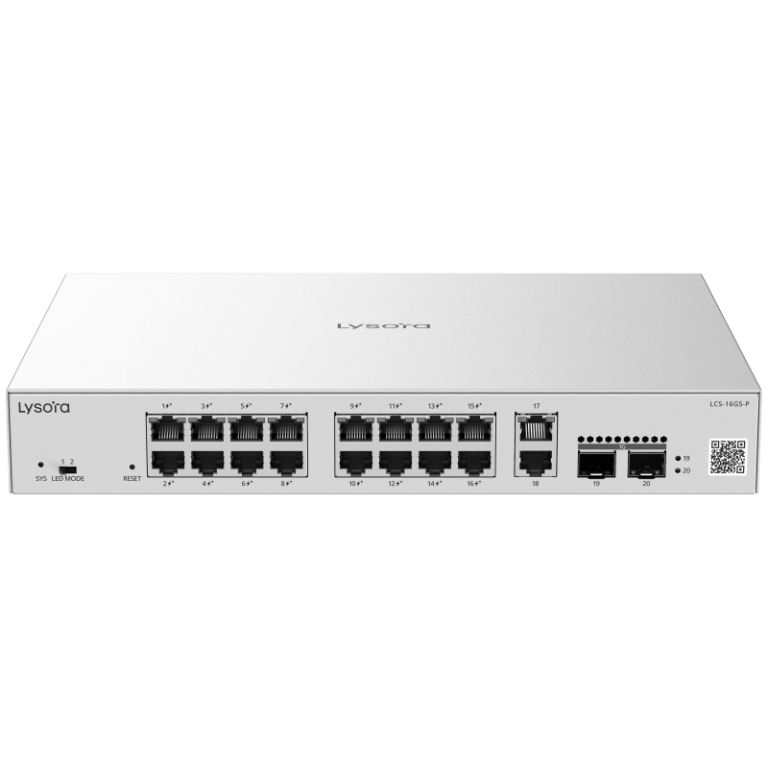

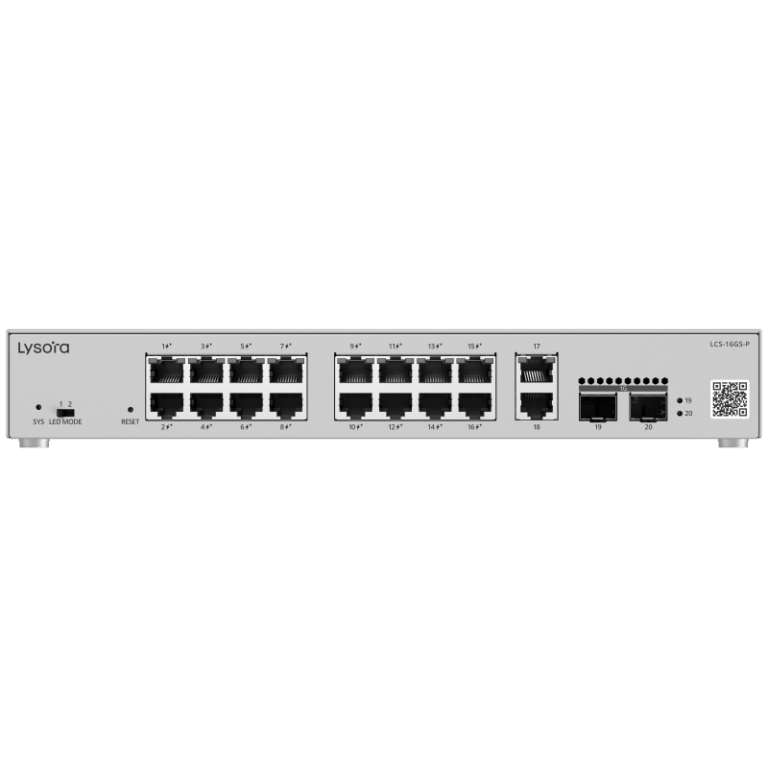

16 PoE/POE+ Ports with 2 Gigabit RJ45/2 SFP uplink ports
250W PoE power budget
Desktop Steel Case

Technical details

Specifications

Dimensions300 mm x 223 mm x 43.6 mm (11.81 in. x 8.78 in. x 1.72 in.)

Weight2.12 kg (4.67 lbs) (without packaging materials) 2.80 kg (6.17 lbs) (with packaging materials)

Port Specifications

Total number of RJ45 ports18

Total number of optical ports2

Number of 1GE combo ports-

Number of 1GE SFP ports2

Number of 10GE SFP+ ports-

Number of 10/100BASE-T ports-

Number of 10/100/1000BASE-T ports18

Number of 10/100/1000/2500BASE-T ports-

Number of 100/1000/2.5G/5G/10GBASE-T ports-

PoE Specifications

Number of PoE/PoE+ Out ports16

Number of PoE/PoE+/PoE++ Out ports-

PoE budget250 W

PoE power pins1–2 (+), 3–6 (-)

CasingMetal

MountingRack

Warranty3 years

System Specifications

Switching capacity40 Gbps(bit/s)

Forwarding rate29.7 Mpps

Buffer size4.1 Mbit

CPUMAC chip, single-core processor, 500 MHz clock frequency

Flash memory8 MB

System Performance Capacity

Recommended camera limit200W H265: 80 400W H265: 40

Power supply and Consumption

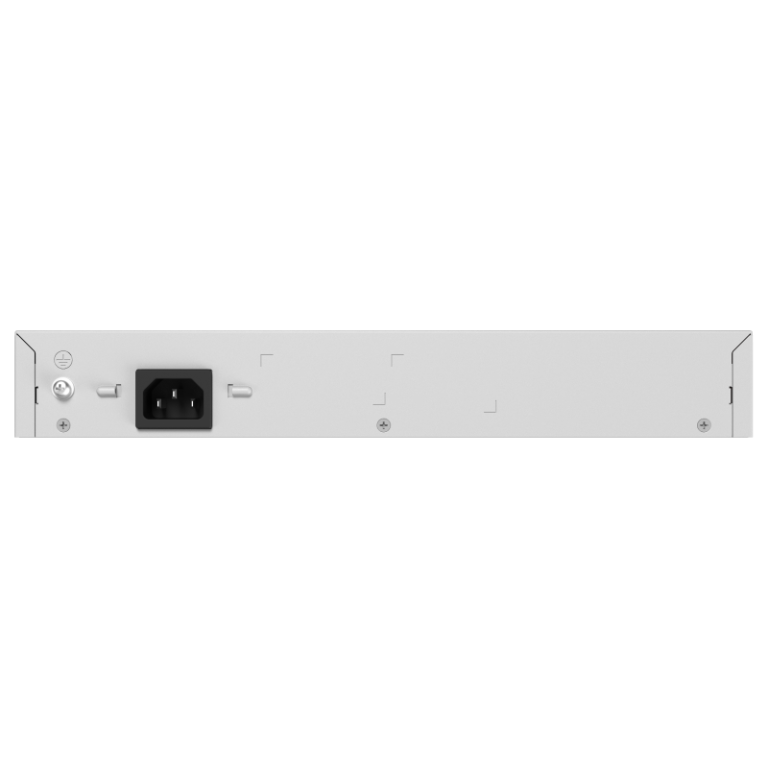

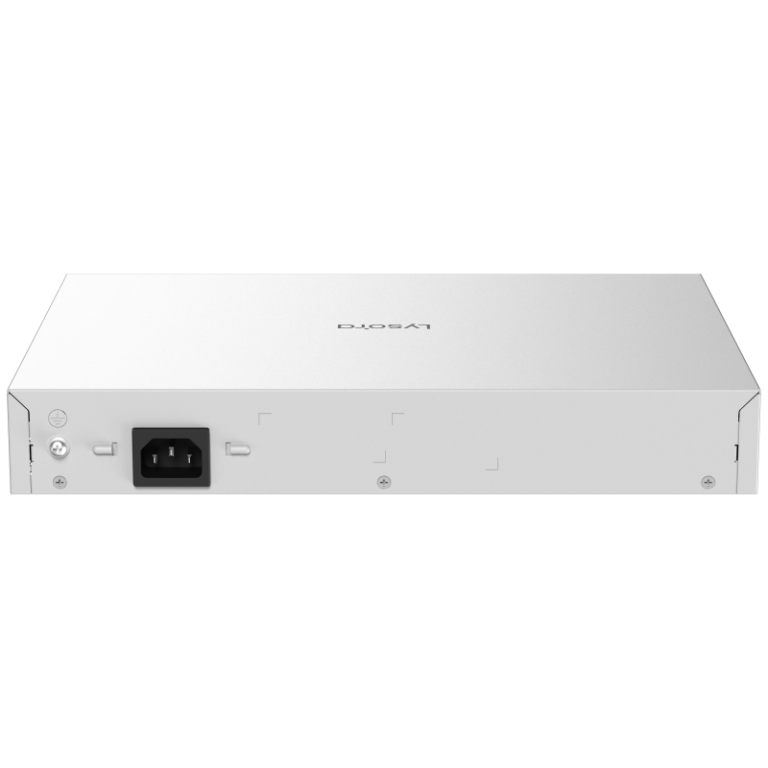

Power Method220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 4.5 A

Max. Power Consumption15 W (with no PoE load) 265 W (with PoE full load)

Heat Dissipation51.3 BTU/hr (220 V/50 Hz), with no PoE load 904.3 BTU/hr (220 V/50 Hz), with PoE full load

Environment and Reliability

Surge protectionService port: ±4 kV for common mode Power connector: ±6 kV for common mode and ±6 kV for differential mode

Operating temperature0°C to 40°C (32°F to 104°F)

Storage temperature–40°C to +70°C (–40°F to +158°F)

Operating humidity10% RH to 90% RH (non-condensing)

Storage humidity5% RH to 95% RH (non-condensing)

Fan1 x fixed fan

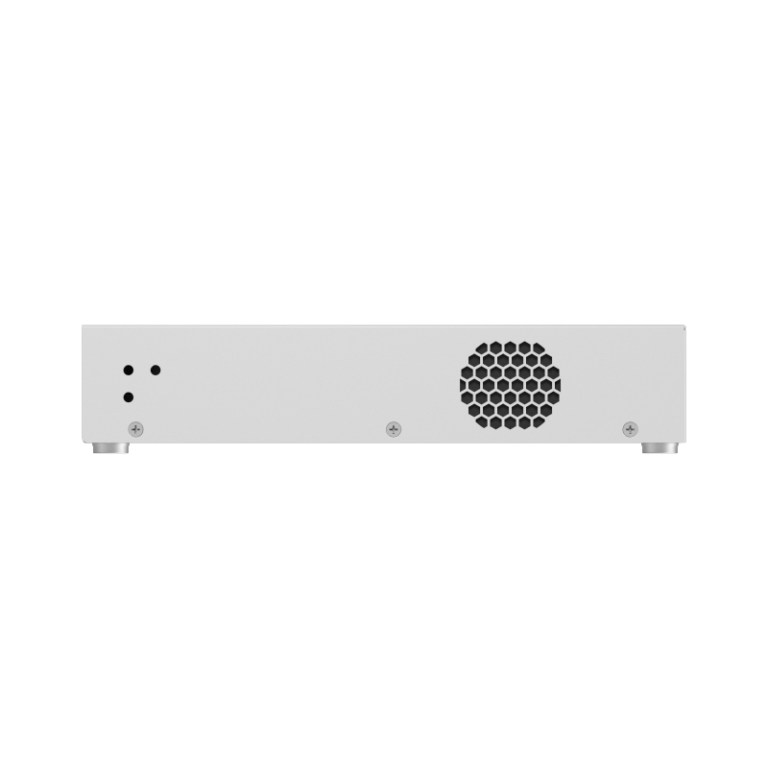

CoolingAir cooling, left-to-right airflow

Altitude–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

MTBF200,000 hours

ESD protectionAir discharge: 8 kV Contact discharge: 6 kV

Basic Configurations

PoE watchdogYES

Online upgradeYES

Interface

Jumbo frame length (MTU)10000 bytes

EEEYES

Cable testYES

Ethernet Switching

Maximum number of VLANs16

Maximum number of MAC address entries8000

VLAN configuration supported on LAN portsYES

IEEE 802.1Q VLANYES

Static MAC addressYES

Interface flow controlYES

Inbound or outbound rate limiting based on interface trafficYES

IP Service

DNS clientYES

DHCP clientYES

Security

Port isolationYES

Broadcast storm controlYES

Multicast storm controlYES

Unknown unicast storm controlYES

CPU Protection PolicyYES

DHCP snoopingYES

Network Management and Monitoring

Web managementYES

Cloud managementYES

App managementYES

MirroringYES

Self-Organizing NetworkYES

Camera detectionYES

Certification and Regulatory Compliance

NDAA ComplainYES

EMCEN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386

Safety complianceEN 62638-1

CertificationCE, FCC

Device

Device1

Manual

User Manual1

Warranty Card1

Accessories

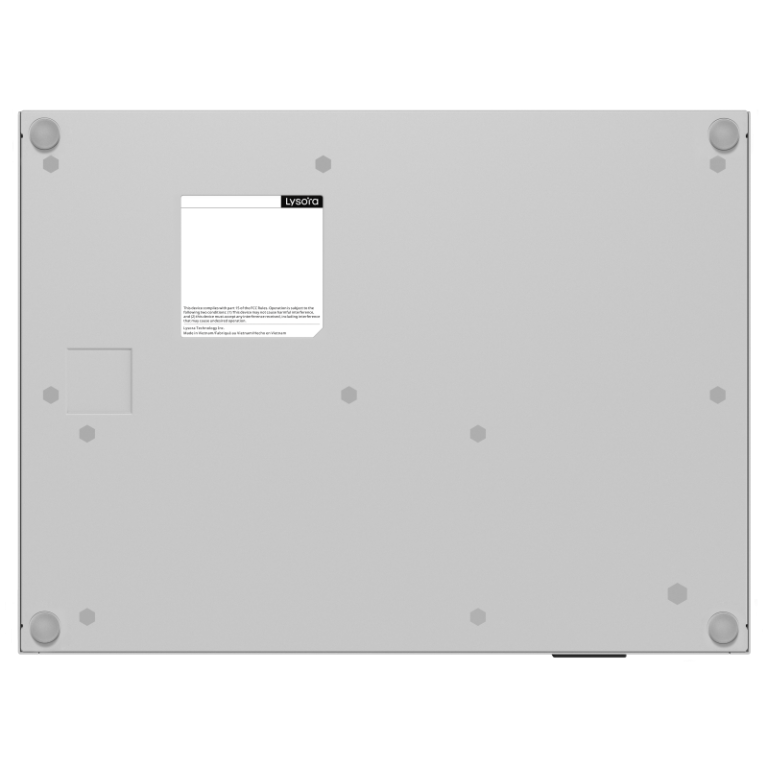

Rubber pad4

Power cord retention clip-

Screw6 x M3 x 6 mm cross recessed countersunk head screws

Grounding cable-

Power cord1 x 1.8 m (5.91 ft.)

Rack-mount bracket-
