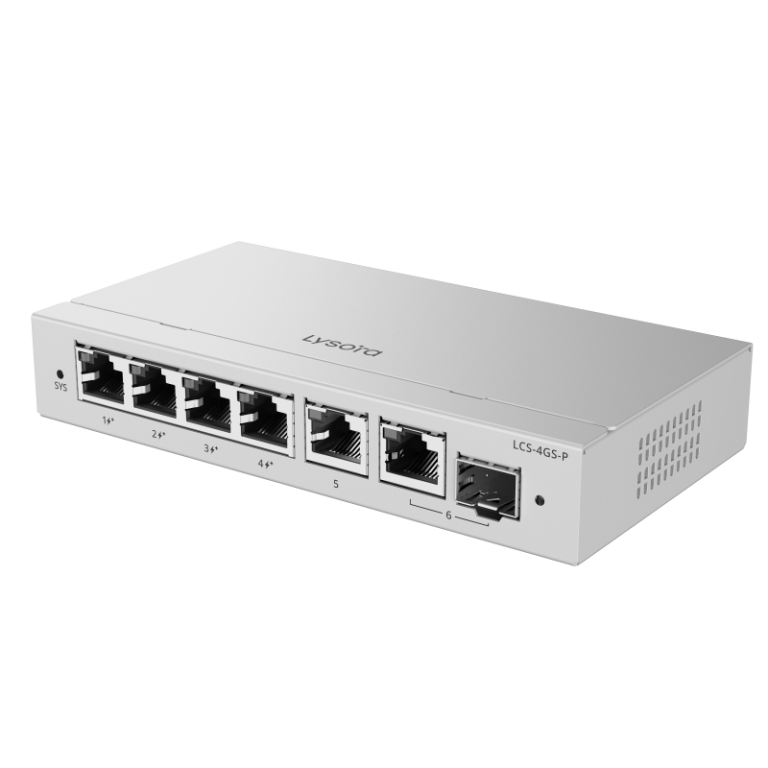

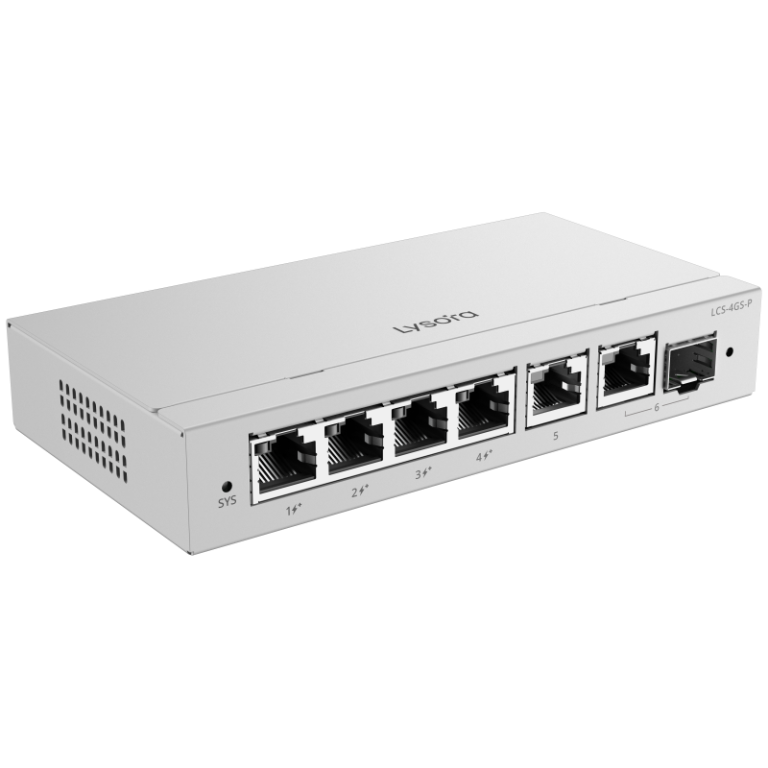

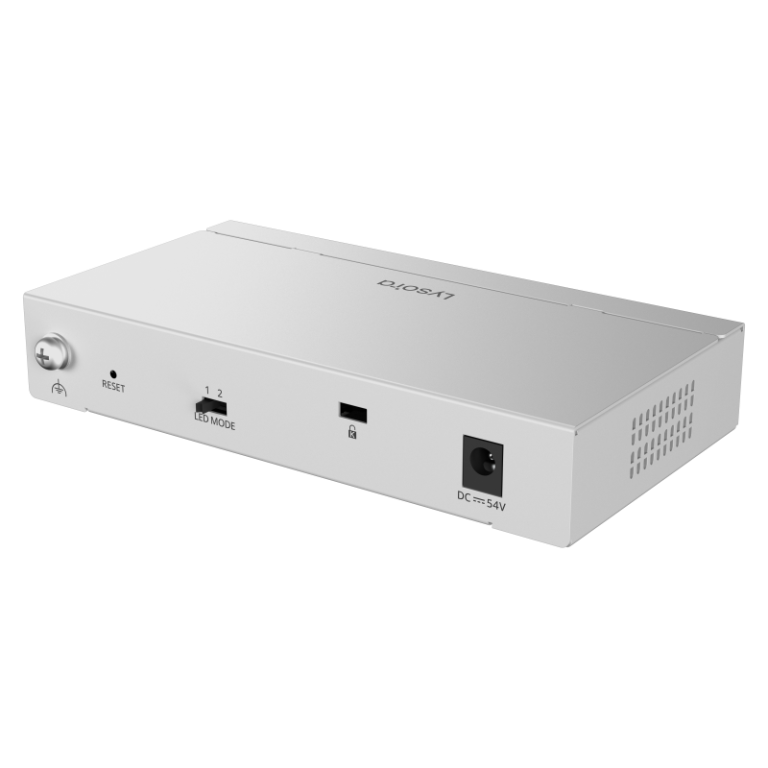

LCS-4GS-P

4-Port Cloud Managed PoE Switch with 54 W PoE Budget

6-Port Gigabit Smart POE Switch

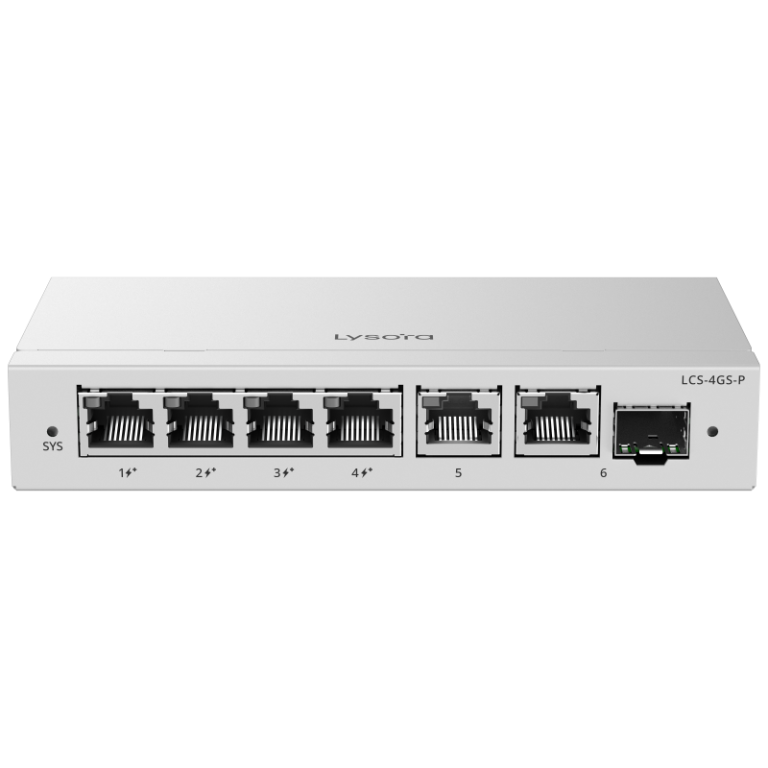

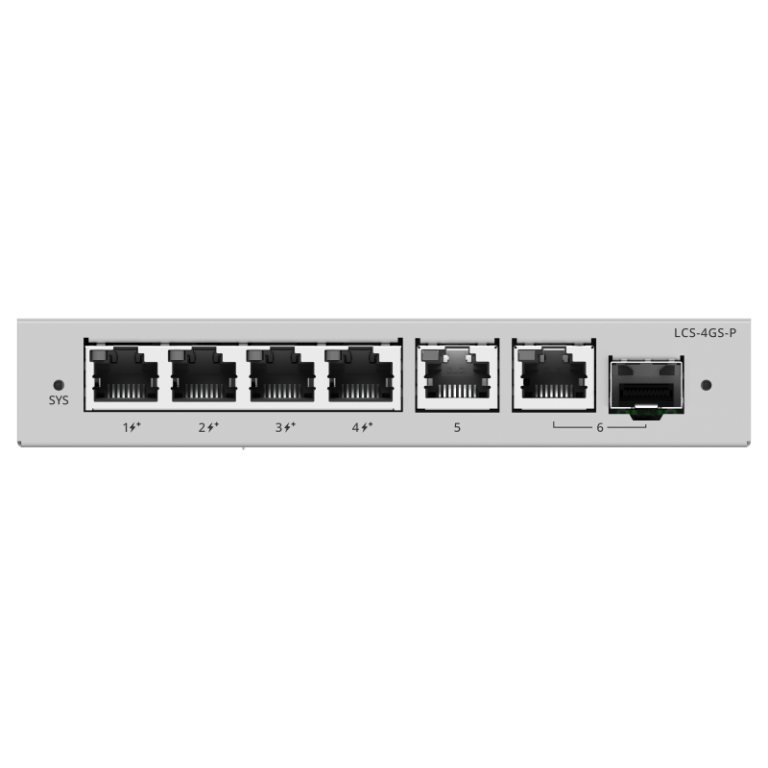

4 PoE/POE+ Ports with 1 Gigabit RJ45/1 combo SFP uplink ports
54W PoE power budget, Desktop Steel Case

Technical details

Specifications

Dimensions148mm x 78 mm x 26 mm (5.83 in. x 3.07 in. x 1.02 in.)

Weight0.31 kg (0.68 lbs) (without packaging materials) 1.07 kg (2.36 lbs) (with packaging materials)

Port Specifications

Total number of RJ45 ports6

Total number of optical ports1

Number of 1GE combo ports1

Number of 1GE SFP ports1

Number of 10GE SFP+ ports-

Number of 10/100BASE-T ports-

Number of 10/100/1000BASE-T ports6

Number of 10/100/1000/2500BASE-T ports-

Number of 100/1000/2.5G/5G/10GBASE-T ports-

PoE Specifications

Number of PoE/PoE+ Out ports4

Number of PoE/PoE+/PoE++ Out ports-

PoE budget54 W

PoE power pins1–2 (+), 3–6 (-)

CasingMetal

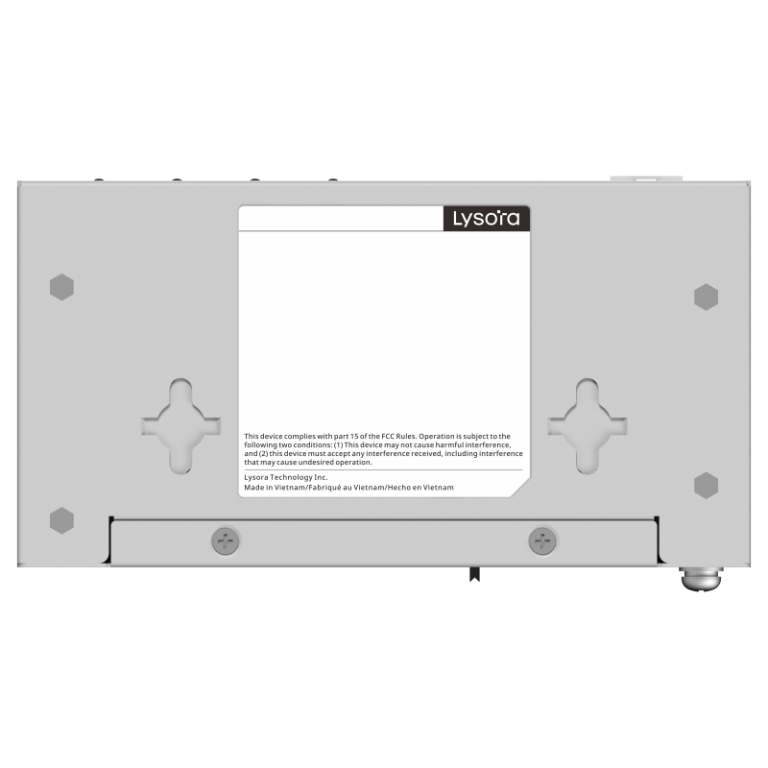

MountingWall/Desk

Warranty3 years

System Specifications

Switching capacity12 Gbps(bit/s)

Forwarding rate8.9 Mpps

Buffer size1.5 Mbit

CPUMAC chip, single-core processor, 62.5 MHz clock frequency

Flash memory4 MB

System Performance Capacity

Recommended camera limit200W H265: 40 400W H265: 20

Power supply and Consumption

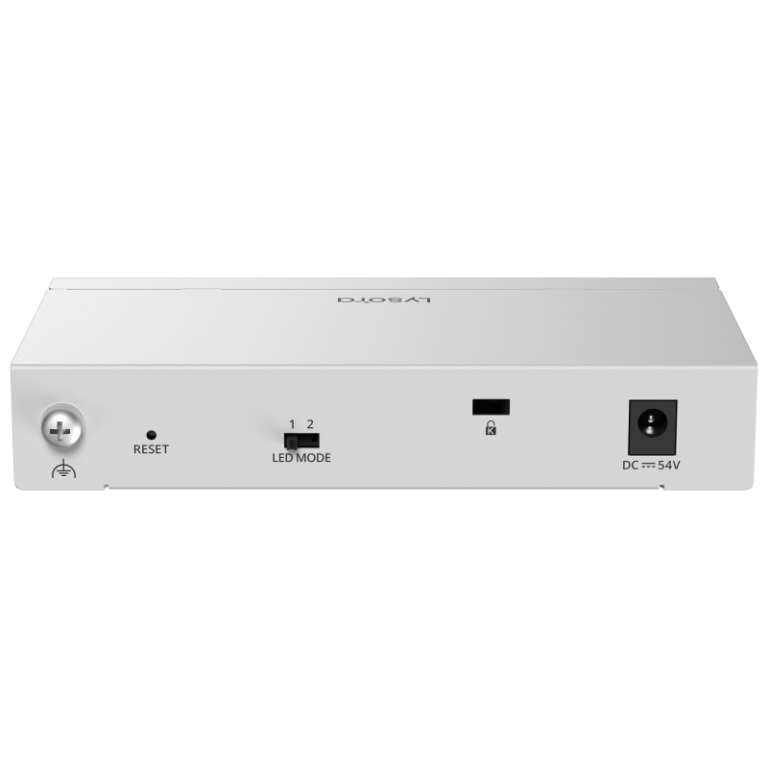

Power MethodDC adapter: ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 1.5 A Output： ● Rated output voltage: 54 V DC ● Maximum output current: 1.11 A

Max. Power Consumption6 W (with no PoE load) 60 W (with PoE full load)

Heat Dissipation20.52 BTU/hr (220 V/50 Hz), with no PoE load 205.2 BTU/hr (220 V/50 Hz), with PoE full load

Environment and Reliability

Surge protectionService port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode

Operating temperature0°C to 40°C (32°F to 104°F)

Storage temperature–40°C to +70°C (–40°F to +158°F)

Operating humidity10% RH to 90% RH (non-condensing)

Storage humidity5% RH to 95% RH (non-condensing)

FanFanless design

CoolingNatural cooling

Altitude–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

MTBF200,000 hours

ESD protectionAir discharge: 8 kV Contact discharge: 6 kV

Basic Configurations

PoE watchdogYES

Online upgradeYES

Interface

Jumbo frame length (MTU)9216 bytes

EEEYES

Cable testYES

Ethernet Switching

Maximum number of VLANs16

Maximum number of MAC address entries2000

VLAN configuration supported on LAN portsYES

IEEE 802.1Q VLANYES

Static MAC addressYES

Interface flow controlYES

Inbound or outbound rate limiting based on interface trafficYES

IP Service

DNS clientYES

DHCP clientYES

Security

Port isolationYES

Broadcast storm controlYES

Multicast storm controlYES

Unknown unicast storm controlYES

CPU Protection PolicyYES

DHCP snoopingYES

Network Management and Monitoring

Web managementYES

Cloud managementYES

App managementYES

MirroringYES

Self-Organizing NetworkYES

Camera detectionYES

Certification and Regulatory Compliance

NDAA ComplainYES

EMCEN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386

Safety complianceEN 62638-1

CertificationCE, FCC

Device

Device1

Manual

User Manual1

Warranty Card1

Accessories

Rubber pad-

Power cord retention clip-

Screw-

Grounding cable-

Power cord1 x 1 m (3.28 ft.)

Rack-mount bracket-
