Product dimensions206.5 mm x 108.5 mm x 28 mm (8.13 in. x 4.27 in. x 1.1 in.)

Weight0.85 kg (1.88 lbs)(with packaging materials) 0.41 kg (0.9 lbs)(without packaging materials)

Port Specifications

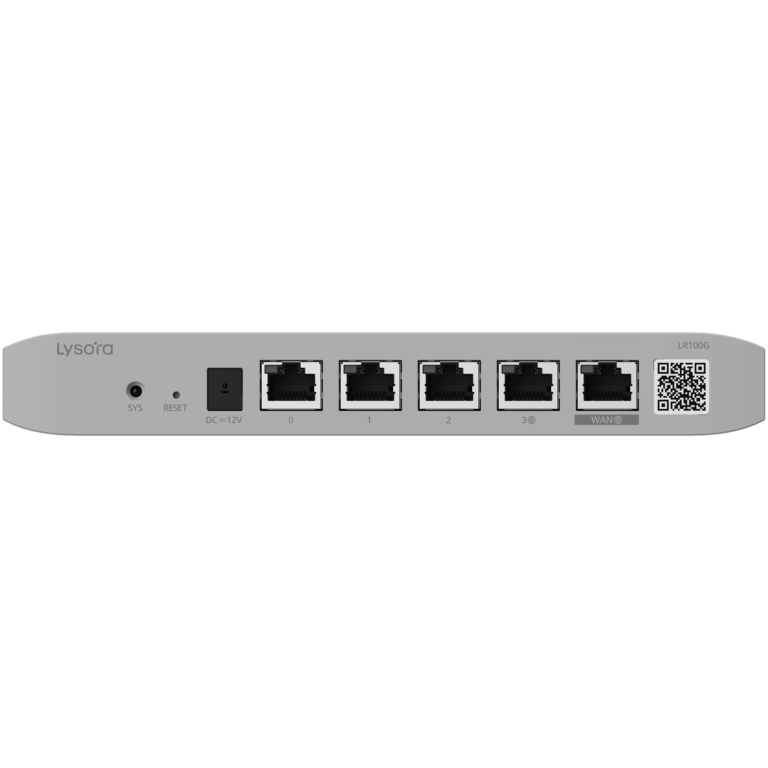

Total number of RJ45 ports5

Total number of optical ports-

Number of 1GE SFP ports-

Number of 10GE SFP+ ports-

Number of 10/100/1000BASE-T ports5

Number of 10/100/1000/2500BASE-T ports-

Number of 100/1000/2.5G/5G/10GBASE-T ports-

Maximum number of LAN port4

Maximum number of WAN ports2

Number of fixed LAN ports3

Number of fixed WAN ports1

Number of LAN/WAN ports1

PoE Specifications

Number of PoE/PoE+ Out ports-

Number of PoE/PoE+/PoE++ Out ports-

PoE budget-

PoE power pins-

Enclosure MaterialPlastic

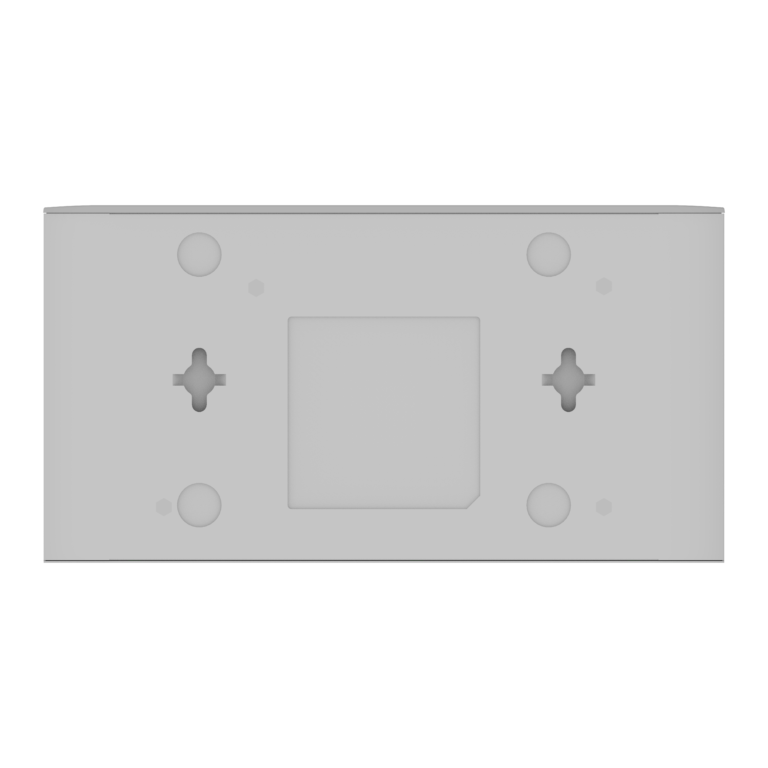

Mounting TypeDesktop Mounting, Wall-mounted

Warranty3 years

System Specifications

CPUDual-core processor, 880 MHz clock frequency per core

Flash memory32 MB

RAM128 MB

eMMC-

USB port-

Hard disk-

LEDs1 x system status LED 5 x Ethernet port LEDs

Buttons1 x reset button

System Performance Capacity

Maximum number of concurrent sessions12000

Recommended number of concurrent clients100

Throughput1000 Mbps (Turbo Mode) 600 Mbps (Normal Mode)

Power supply and Consumption

Power MethodDC adapter: Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz (optional) Rated input current: 1 A Output: Rated output voltage: 12 V DC Maximum output current: 1 A

Dimensions of the DC connectorOuter Diameter: 5.5 mm Inner Diameter: 2.1mm Depth: 10 mm

Max. Power Consumption5W

Environment and Reliability

Surge protectionService port: ±4 kV for common mode Power connector: ±2 kV for common mode and ±1 kV for differential mode

Operating temperature0°C to 40°C (32°F to 104°F)

Storage temperature-40°C to +70°C (-40°F to +158°F)

Operating humidity10% RH to 90% RH (non-condensing)

Storage humidity5% RH to 95% RH (non-condensing)

FanFanless

CoolingNatural cooling

ESD protectionContact discharge: 4 kV Air discharge: 6 kV

Basic Configurations

Working modeAC mode Routing mode

Internet access modePPPoE DHCP Static IP

Self Organizing NetowkYes

Maximum number of devices that can be managed128

Maximum number of APs (routing mode)32

Maximum number of APs (AC mode)300

Ethernet Switching

VLANYes

Maximum number of VLANs supported by all LAN interfaces16

LLDPNo

RLDPNo

STPNo

IP Routing

Load balancingYes

Static routingIPv4 and IPv6 Static route

Maximum number of IPv4 static routes100

Maximum number of IPv6 static routes100

PBRIPv4 and IPv6 PBR

Number of IPv4 PBR entries30

Number of IPv6 PBR entries30

URL-based routingYes

RIPYes

Number of RIP routes100

BGPNo

Number of BGP routes-

OSPFYes

Number of OSPFv2 instances2

Number of OSPF neighbors on a point-to-point interface64

Number of OSPFv3 routes1000

Number of dynamic IPv4 routes1000

Number of dynamic IPv6 routes1000

IS-ISNo

Security

ACLYes

DHCP snoopingNo

IP-MAC bindingYes

MAC address filteringYes

Security zoneYes

Local attack defenseYes

Limiting the number of connectionsYes

Multicast rate limitNo

Network sharing preventionYes

Authentication

Local portal authenticationSMS-based authentication One-click authentication Authorization-based authentication QR code authentication Authentication (IP address-based) across Layer 3 switches Self-service logout

Cloud portal authenticationCustom portal page Delivery through cloud portal page One-click login to cloud portal page Account-based authentication Voucher authentication SMS-based authentication supported by cloud portal page

Third-party authenticationWISPr for third-party portal authentication Wi-FiDog for third-party portal authentication

MAB on CloudYes

MAB for local authenticationYes

MAB for RADIUS-based authenticationYes

802.1X authenticationYes

PPPoE authenticationYes

VPN & VPN Performance

Site-to-Site VPNIPsec VPN WireGuard

Client-to-Site VPNL2TP VPN L2TP over IPSec VPN OpenVPN PPTP VPN WireGuard

L2TP VPN bandwidth130 Mbps

PPTP VPN bandwidth190 Mbps

OpenVPN bandwidth20 Mbps

IPsec VPN bandwidth28 Mbps

IPv6 IPsec VPN bandwidth28 Mbps

WireGuard performance80 Mbps

L2TP over IPsec bandwidth28 Mbps

SD-WANYes

SD-WAN performance80 Mbps

Gateway Features

User Behavior Management (UBM)Yes

Application controlYes

Flow controlYes

Traffic auditYes

Audit logYes

Local storage of traffic audit logsNo

IP Service

ARPYes

Proxy ARPNo

Maximum number of ARP entries1024

DDNSYes

DHCPYes

DNSYes

IPTVYes

IPv4/IPv6Yes

NATYes

Number of port mapping entries256

UPnPYes

MulticastNo

WLAN

AP managementWi-Fi RF parameters Managing clients Configuring an allowlist and a blocklist 802.1X authentication AP Mesh WQoS 802.11k/v roaming AP portal authentication AP load balancing AP LEDs Layer 2 isolation Configuring the power supply mode of the AP on Cloud

Maximum number of SSIDs8

Client associationYes

Network Management and Monitoring

Web managementYes

Cloud managementUpgrading device software version through App Restarting devices through App Remotely monitoring devices through App Self organizing network through code scanning Cloud-based O&M Cloud-based upgrade

Management on AppYes

Web login informationYes

HTTP loginYes

HTTPS loginYes

NTPNTP client

Fault diagnosisYes

TelnetNo

SSHNo

File transferNo

SyslogYes

SNMPYes

RLOGYes

Fan speed adjustmentNo

Fault self-diagnosisYes

StackingNo

VRRPNo

Certification and Regulatory Compliance

NDAA ComplainYes

EMC-

Safety compliance-

CertificationFCC, IC, cTUVus

Device

Device1

Manual

User Manual1

Warranty Card1

Accessories

Rubber pad4

Power cord retention clip-

Screw-

Grounding cable-

Power cord1 x 1.5 m (4.92 ft.)

Rack-mount bracket-
