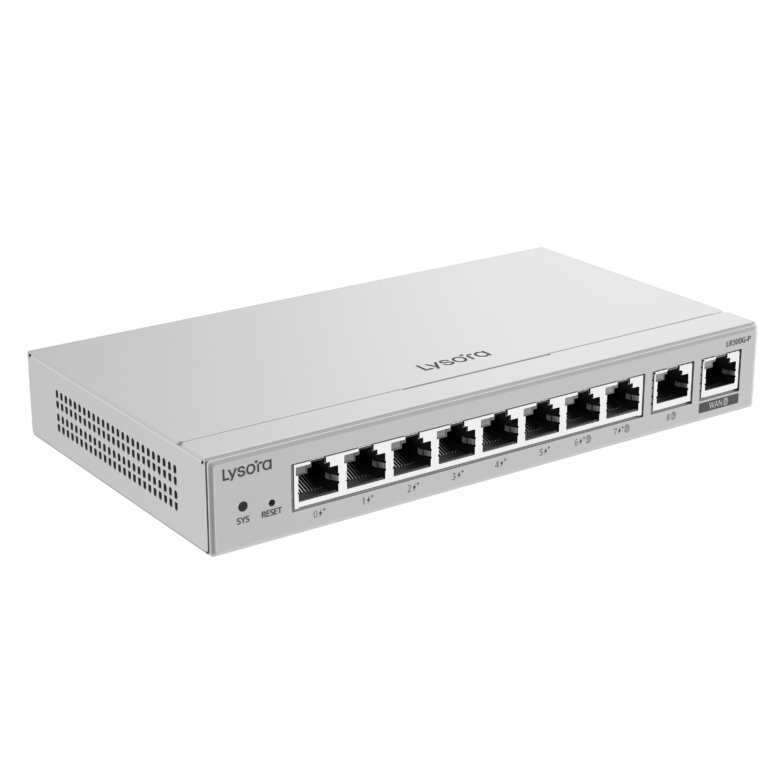

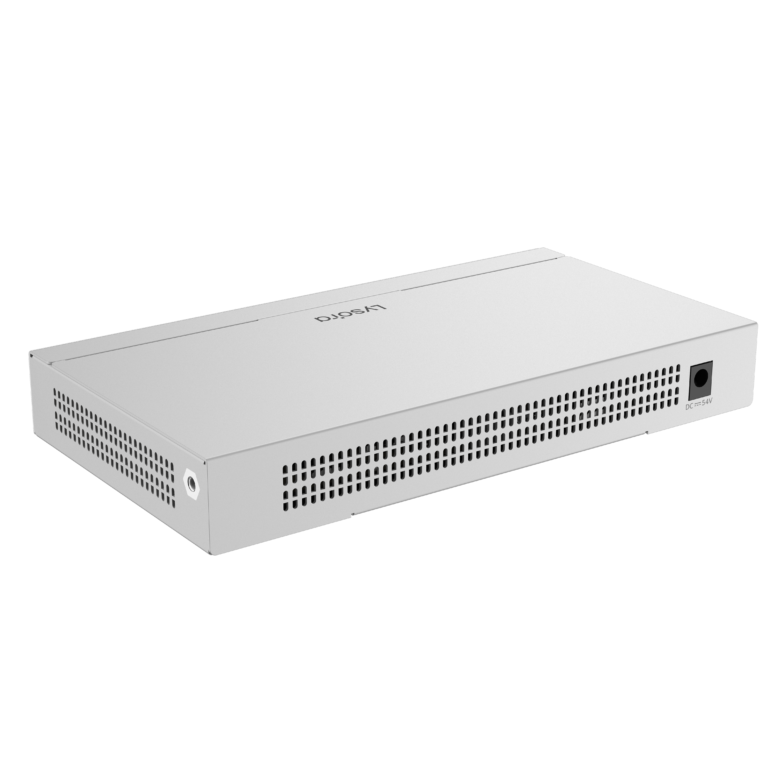

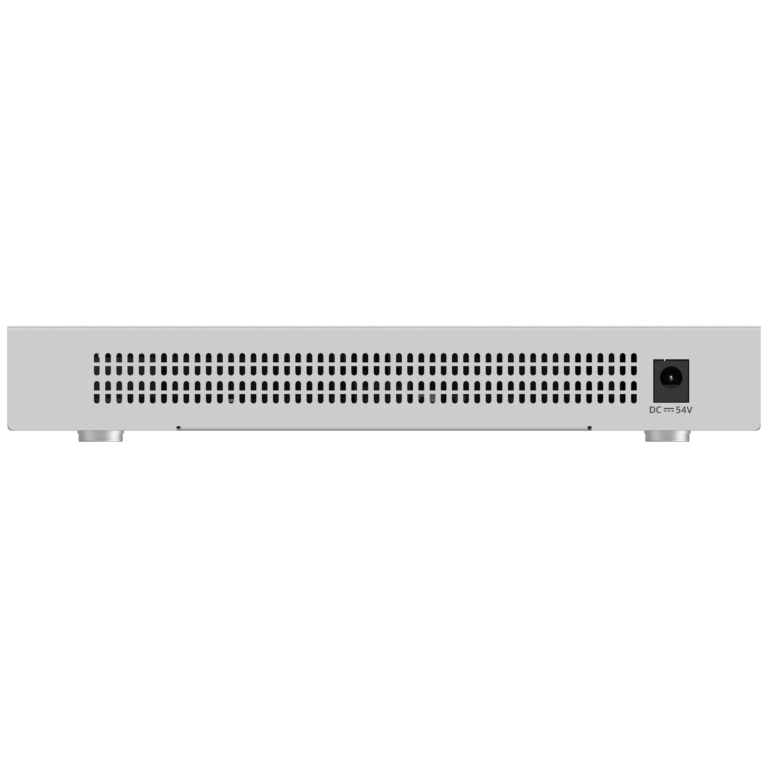

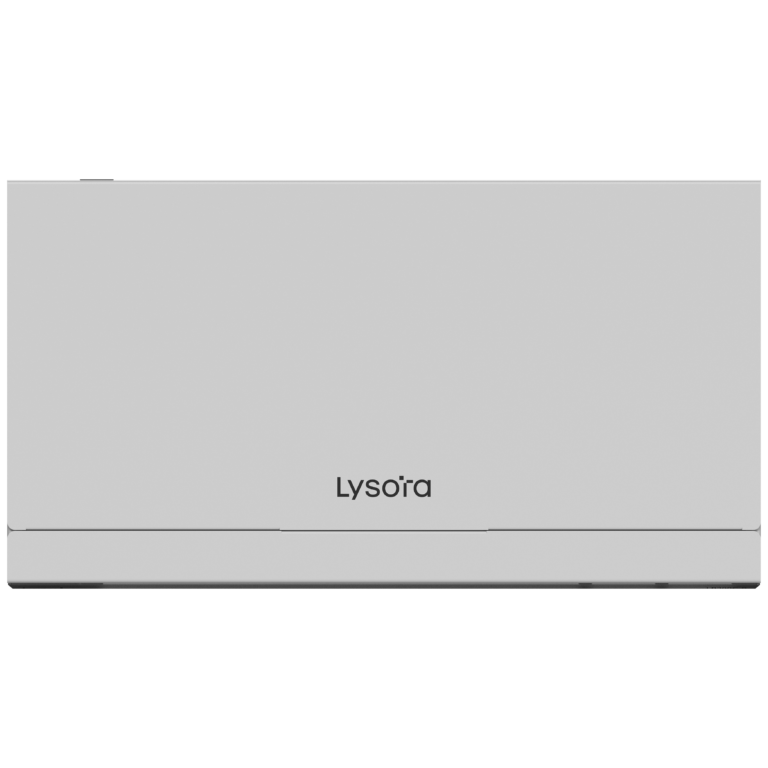

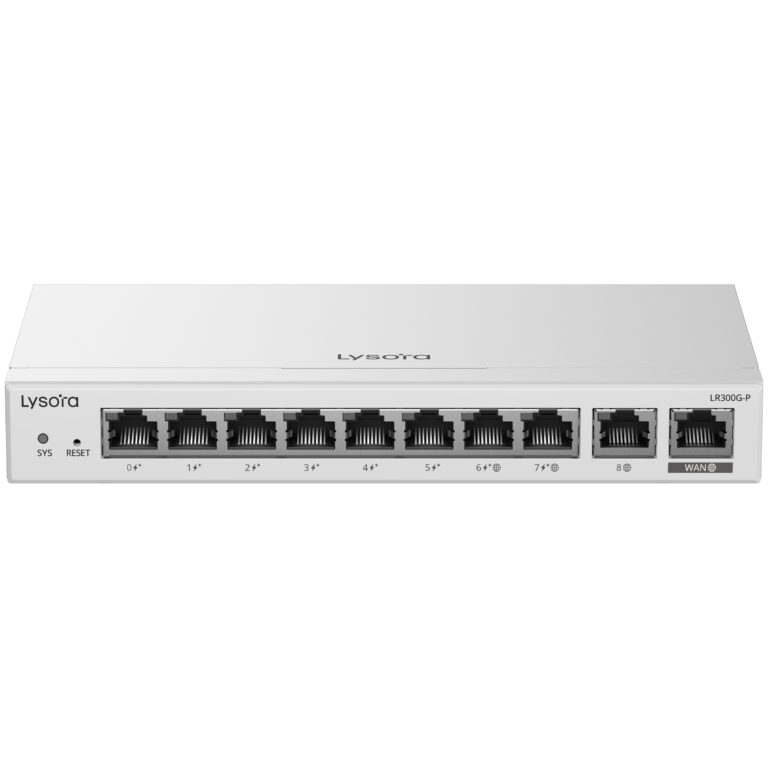

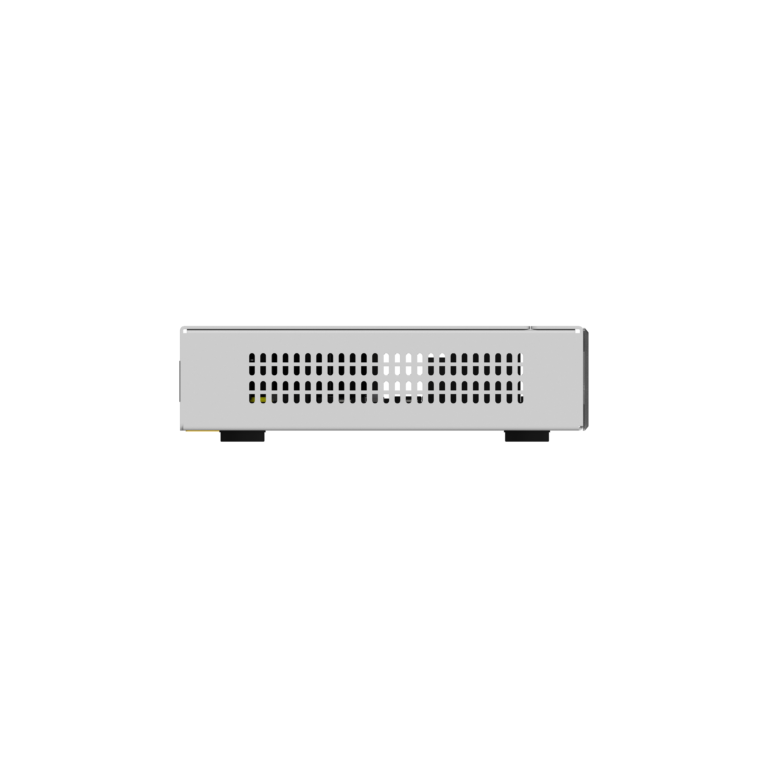

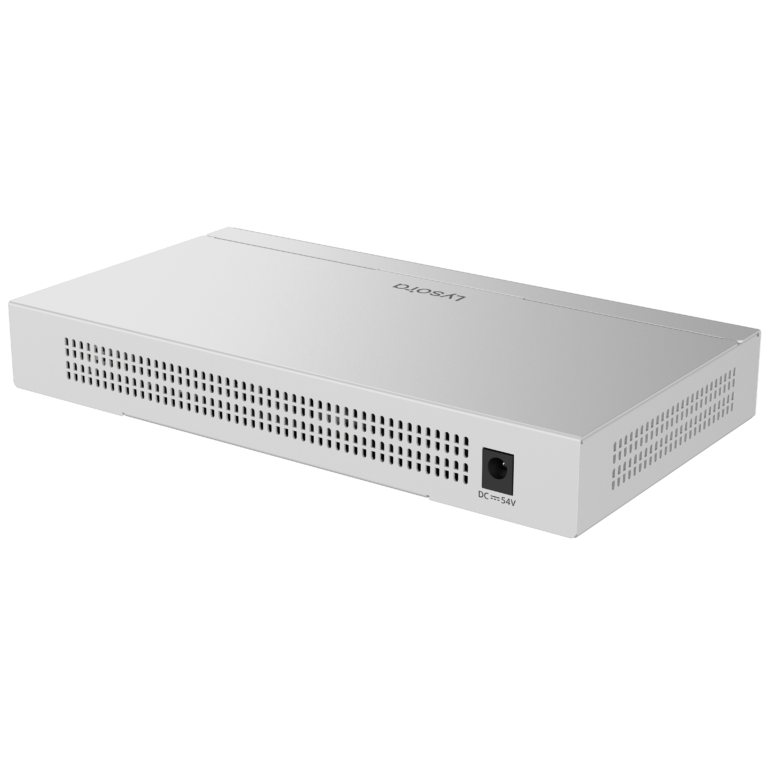

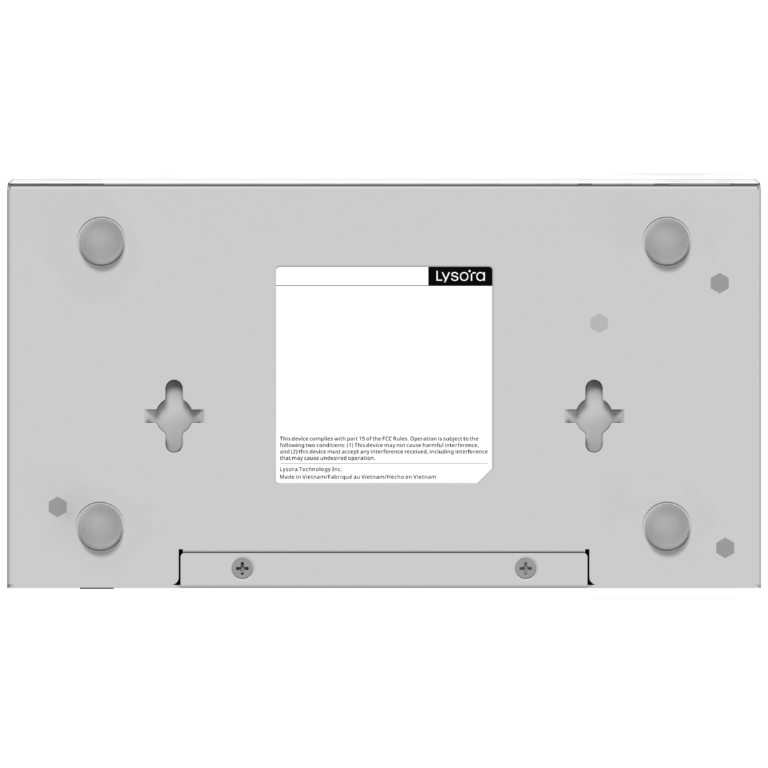

LR300G-P

10-Port Cloud Managed Router with 110 W PoE Budget

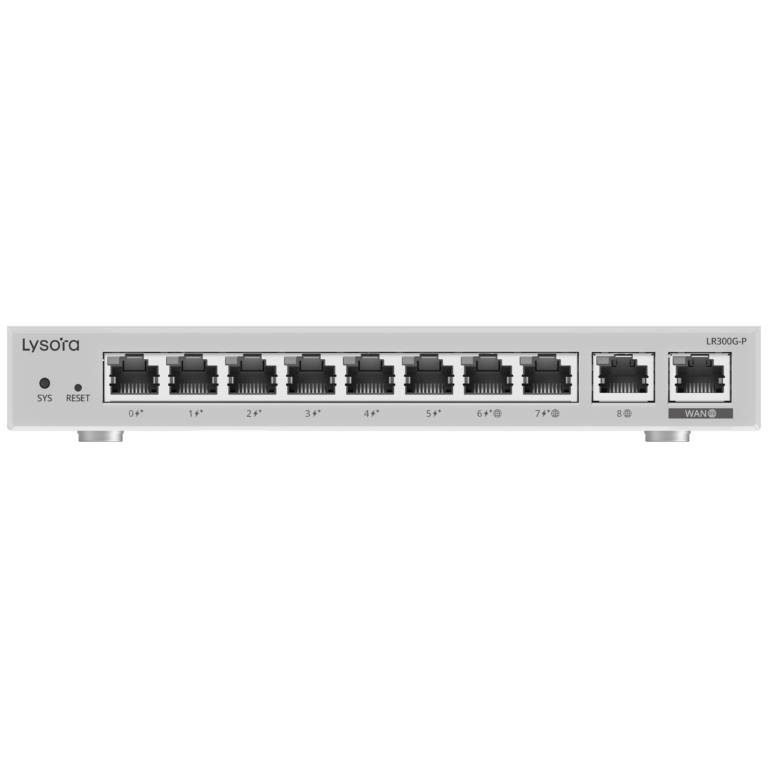

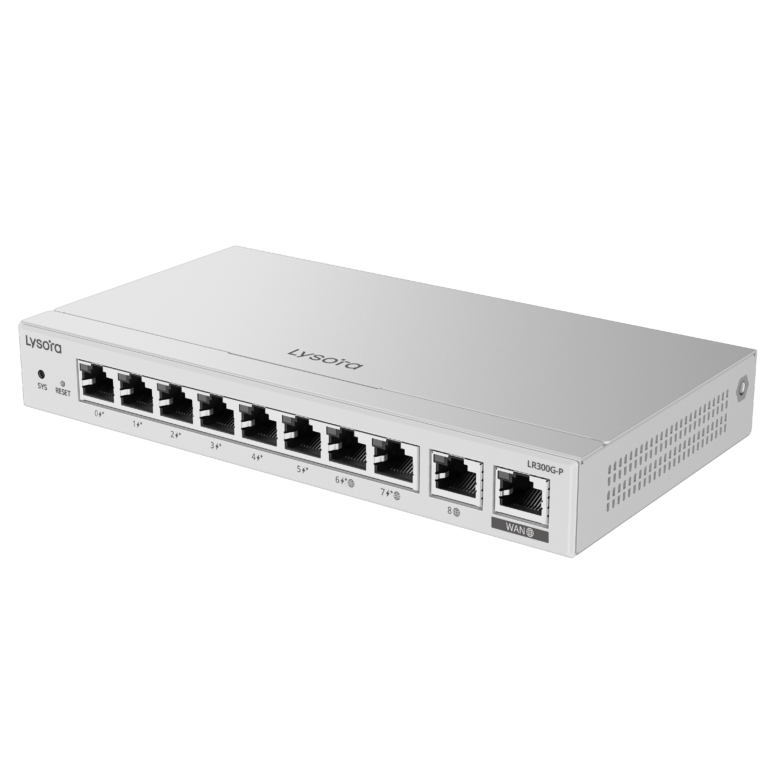

  • Desktop 10-port full gigabit router, providing one WAN port, six LAN ports, and three LAN/WAN ports
  • supporting eight PoE/PoE+ interfaces and maximum 110 W PoE power
  • recommended concurrency of 300, maximum 1.5 Gbps throughput
  • cloud remote management supported
DatasheetSaved products

Technical details

Specifications

153 specification rows
Product dimensions202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.)
Weight1.62 kg (3.57 lbs)(with packaging materials) 0.55 kg (1.212 lbs)(without packaging materials)

Port Specifications

Total number of RJ45 ports10
Total number of optical ports-
Number of 1GE SFP ports-
Number of 10GE SFP+ ports-
Number of 10/100/1000BASE-T ports10
Number of 10/100/1000/2500BASE-T ports-
Number of 100/1000/2.5G/5G/10GBASE-T portsN/A
Maximum number of LAN port9
Maximum number of WAN ports4
Number of fixed LAN ports6
Number of fixed WAN ports1
Number of LAN/WAN ports3

PoE Specifications

Number of PoE/PoE+ Out ports8
Number of PoE/PoE+/PoE++ Out ports-
PoE budget110 w
PoE power pins1–2 (+), 3–6 (-)
Enclosure MaterialMetal
Mounting TypeDesktop Mounting
Warranty3 years

System Specifications

CPUDual-core processor, 1.35 GHz clock frequency per core
Flash memory256 MB
RAM512 MB
eMMC-
USB port-
Hard disk-
LEDs1 x system status LED 10 x Ethernet port LEDs
Buttons1 x reset button

System Performance Capacity

Maximum number of concurrent sessions100000
Recommended number of concurrent clients350
Throughput1.5 Gbps

Power supply and Consumption

Power MethodDC adapter: Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz (optional) Rated input current: 2.5 A Output: Rated output voltage: 54 V DC Maximum output current: 2.4 A

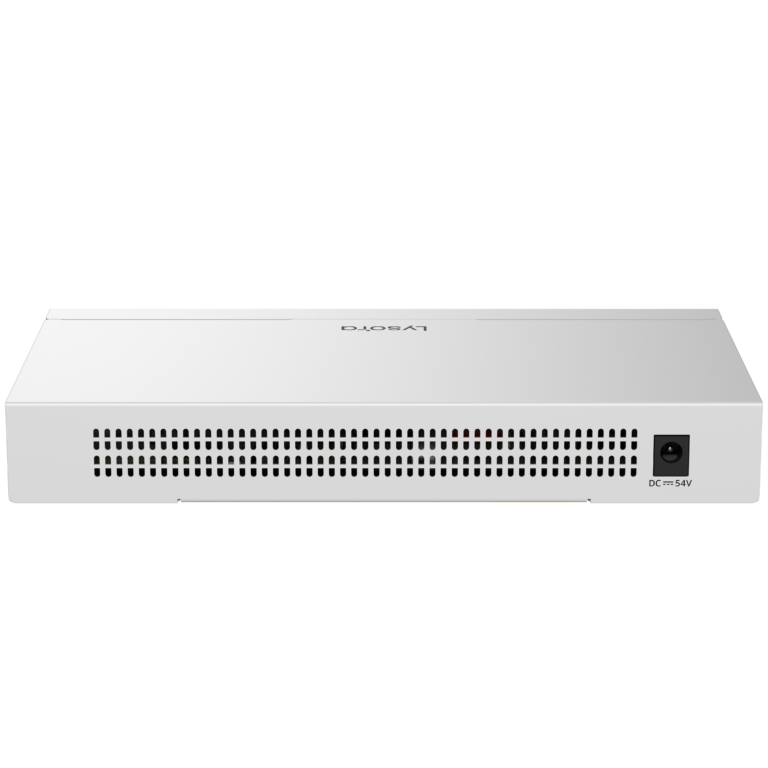

Dimensions of the DC connectorOuter Diameter: 5.5 mm Inner Diameter: 2.1mm Depth: 10 mm
Max. Power Consumption9 W (with no PoE load) 119W (with full PoE load)

Environment and Reliability

Surge protectionService port: ±4 kV for common mode Power connector: ±4 kV for common mode and ±4 kV for differential mode
Operating temperature–10°C to +50°C (14°F to 122°F)
Storage temperature–40°C to +70°C (–40°F to +158°F)
Operating humidity0% RH to 100% RH (non-condensing)
Storage humidity0% RH to 100% RH (non-condensing)
FanFanless
CoolingNatural cooling
ESD protectionContact discharge: 4 kV Air discharge: 6 kV

Basic Configurations

Working modeAC mode Routing mode
Internet access modePPPoE DHCP Static IP
Self Organizing NetowkYes
Maximum number of devices that can be managed128
Maximum number of APs (routing mode)150
Maximum number of APs (AC mode)500

Ethernet Switching

VLANIEEE 802.1Q VLAN
Maximum number of VLANs supported by all LAN interfaces64
LLDPNo
RLDPNo
STPNo

IP Routing

Load balancingYes
Static routingIPv4 and IPv6 Static route
Maximum number of IPv4 static routes100
Maximum number of IPv6 static routes100
PBRIPv4 and IPv6 PBR
Number of IPv4 PBR entries30
Number of IPv6 PBR entries30
URL-based routingYes
RIPYes
Number of RIP routes500
BGPYes
Number of BGP routes5000
OSPFYes
Number of OSPFv2 instances16
Number of OSPF neighbors on a point-to-point interface64
Number of OSPFv3 routes5000
Number of dynamic IPv4 routes1000
Number of dynamic IPv6 routes1000
IS-ISNo

Security

ACLYes
DHCP snoopingNo
IP-MAC bindingYes
MAC address filteringYes
Security zoneYes
Local attack defenseYes
Limiting the number of connectionsYes
Multicast rate limitNo
Network sharing preventionYes

Authentication

Local portal authenticationSMS-based authentication One-click authentication Authorization-based authentication QR code authentication Authentication (IP address-based) across Layer 3 switches Self-service logout
Cloud portal authenticationCustom portal page Delivery through cloud portal page One-click login to cloud portal page Account-based authentication Voucher authentication SMS-based authentication supported by cloud portal page
Third-party authenticationWISPr for third-party portal authentication Wi-FiDog for third-party portal authentication
MAB on CloudYes
MAB for local authenticationYes
MAB for RADIUS-based authenticationYes
802.1X authenticationYes
PPPoE authenticationYes

VPN & VPN Performance

Site-to-Site VPNIPsec VPN WireGuard
Client-to-Site VPNL2TP VPN L2TP over IPSec VPN OpenVPN PPTP VPN WireGuard
L2TP VPN bandwidth540 Mbps
PPTP VPN bandwidth640 Mbps
OpenVPN bandwidth100 Mbps
IPsec VPN bandwidth170 Mbps
IPv6 IPsec VPN bandwidth170 Mbps
WireGuard performance300 Mbps
L2TP over IPsec bandwidth160 Mbps
SD-WANYes
SD-WAN performance300 Mbps

Gateway Features

User Behavior Management (UBM)Yes
Application controlYes
Flow controlYes
Traffic auditYes
Audit logYes
Local storage of traffic audit logsNo

IP Service

ARPYes
Proxy ARPNo
Maximum number of ARP entries1024
DDNSYes
DHCPYes
DNSYes
IPTVYes
IPv4/IPv6Yes
NATYes
Number of port mapping entries512
UPnPYes
MulticastNo

WLAN

AP managementWi-Fi RF parameters Managing clients Configuring an allowlist and a blocklist 802.1X authentication AP Mesh WQoS 802.11k/v roaming AP portal authentication AP load balancing AP LEDs Layer 2 isolation Configuring the power supply mode of the AP on Cloud
Maximum number of SSIDs8
Client associationYes

Network Management and Monitoring

Web managementYes
Cloud managementUpgrading device software version through App Restarting devices through App Remotely monitoring devices through App Self organizing network through code scanning Cloud-based O&M Cloud-based upgrade
Management on AppYes
Web login informationYes
HTTP loginYes
HTTPS loginYes
NTPNTP client
Fault diagnosisYes
TelnetNo
SSHNo
File transferNo
SyslogYes
SNMPYes
RLOGYes
Fan speed adjustmentNo
Fault self-diagnosisYes
StackingNo
VRRPNo

Certification and Regulatory Compliance

NDAA CompliantYes
EMC-
Safety compliance-
CertificationFCC, IC, cTUVus

Device

Device1

Manual

User Manual1
Warranty Card1

Accessories

Rubber pad4
Power cord retention clip-
Screw-
Grounding cable-
Power cord31.49 in. x 1 pieces
Rack-mount bracket-
