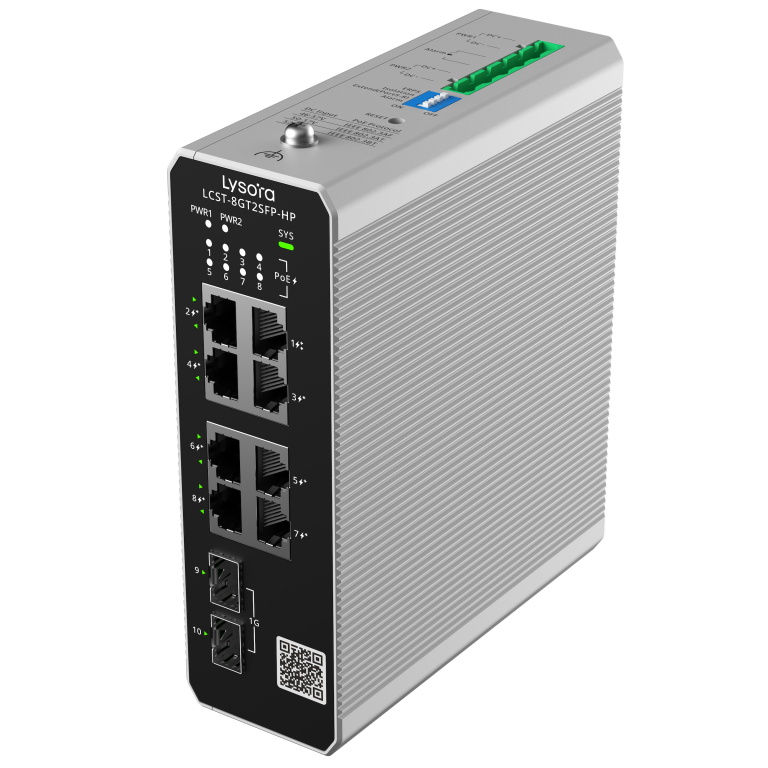

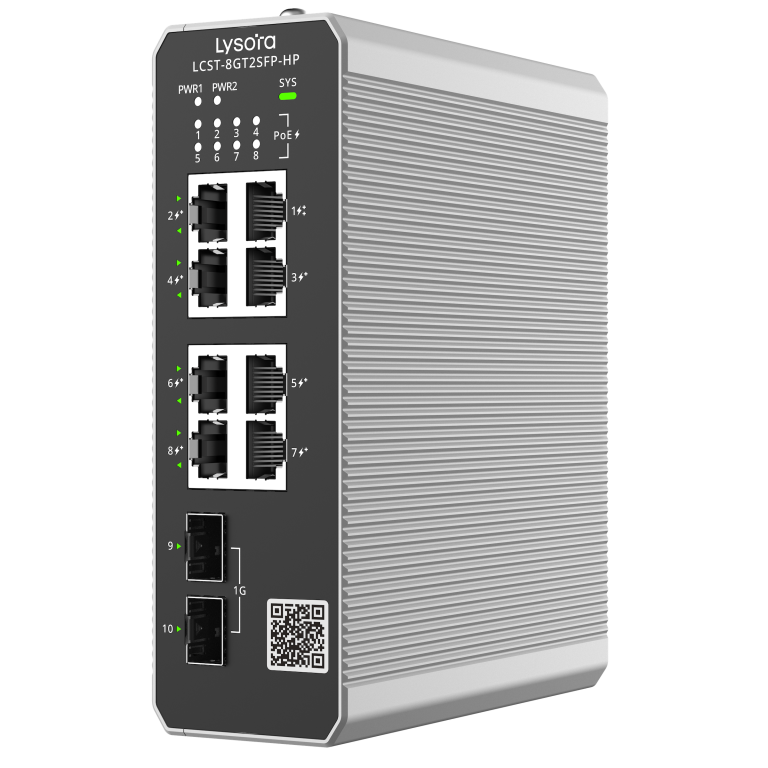

LCST-8GT2SFP-HP primary image

Switches

LCST-8GT2SFP-HP

8-Port Industrial Cloud Managed PoE Switch with 2 x SFP Ports

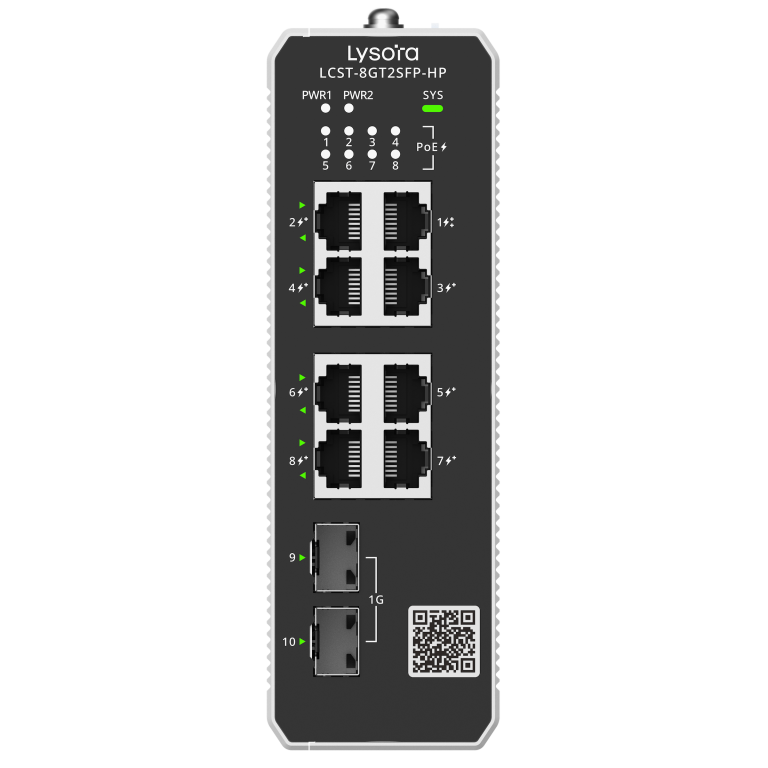

8 Gigabit RJ45 Ports with 7 PoE+ and 1 PoE++
2 SFP Uplink Ports
Industrial Rugged Design for Harsh Environments
Cloud-Based Management via Lysora Cloud

Technical details

Specifications

Dimensions50 mm x 155 mm x 130 mm (1.97 in. x 6.10 in. x 5.12 in.)

Weight0.79 kg (1.74 lbs) (without packaging materials) 1.10 kg (2.43 lbs) (with packaging materials)

Port Specifications

Total number of RJ45 ports8

Total number of optical ports2

Number of 1GE combo ports-

Number of 1GE SFP ports2

Number of 10GE SFP+ ports-

Number of 10/100BASE-T ports-

Number of 10/100/1000BASE-T ports8

Number of 10/100/1000/2500BASE-T ports-

Number of 100/1000/2.5G/5G/10GBASE-T ports-

PoE Specifications

Number of PoE/PoE+ Out ports8

Number of PoE/PoE+/PoE++ Out ports1

PoE budgetDefault: 228 W Max: 300 W (web reserved adjustable interface)

PoE power pinsPort 1: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-) Ports 2–8: 1–2 (+), 3–6 (-)

CasingMetal

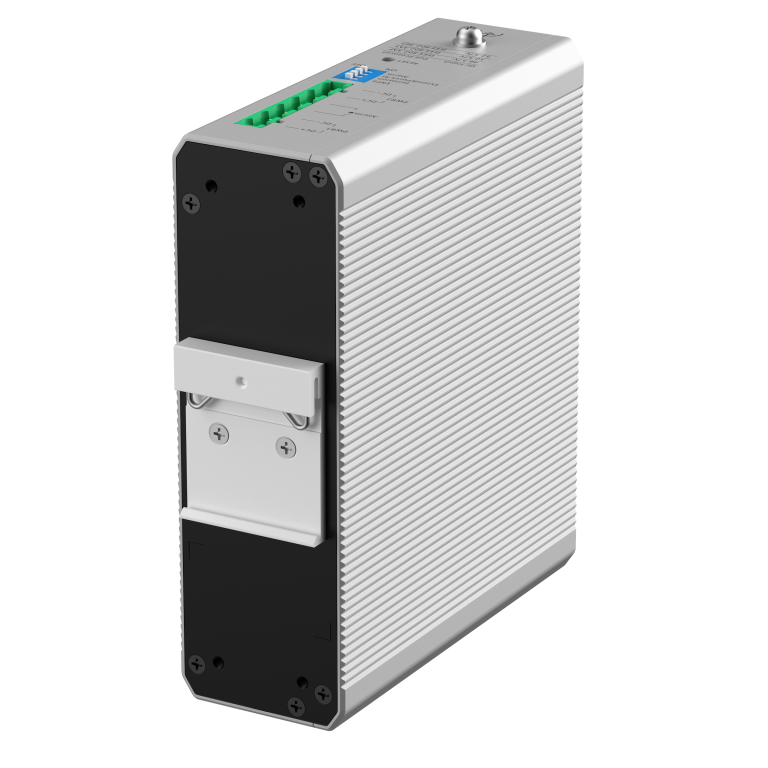

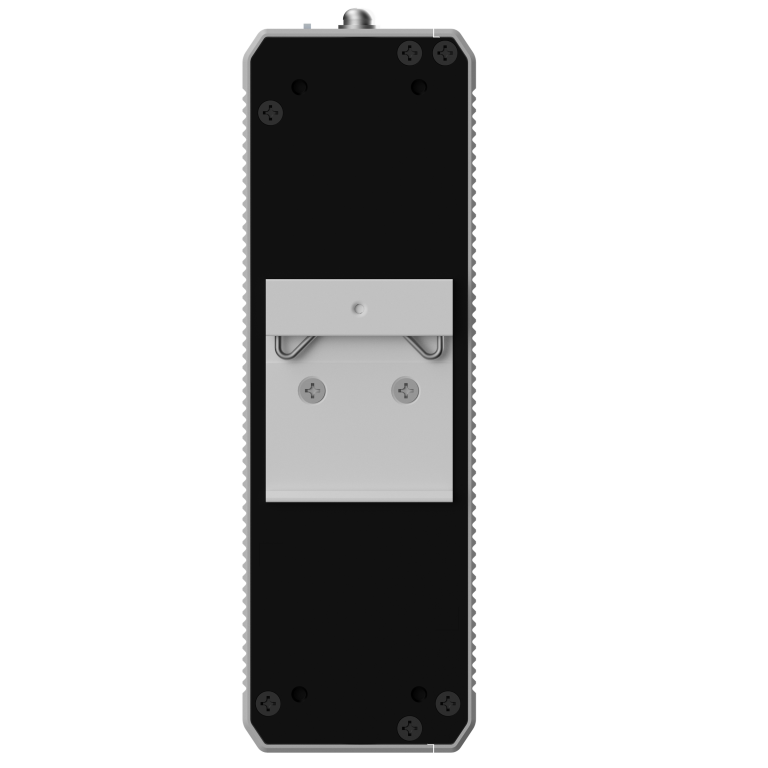

MountingDIN rail mount/Wall

Warranty3 years

System Specifications

Switching capacity20 Gbps(bit/s)

Forwarding rate14.8 Mpps

Buffer size4.1 Mbit

CPUsingle-core processor, 500 MHz clock frequency

Flash memory8 MB

System Performance Capacity

Recommended camera limit200W H265: 90 400W H265: 45

Power supply and Consumption

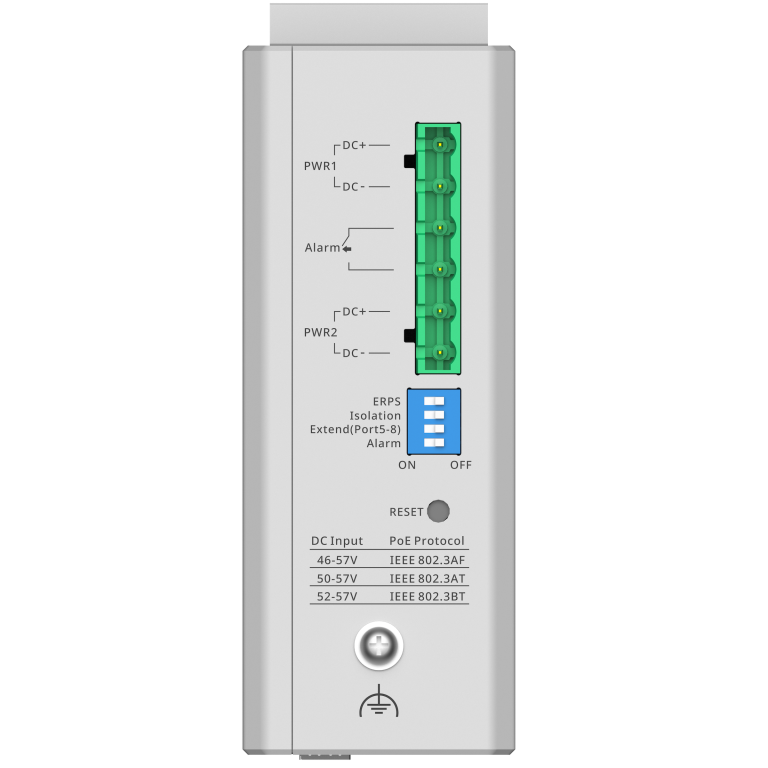

Power MethodDC input: ● Rated voltage range: 46 V DC to 57 V DC ● Rated current range: 7 A

Power Supply● DC power adapter ● Power module (Not included / Sold separately)

Max. Power Consumption12 W (with no PoE load) 312 W (with PoE full load)"

Heat Dissipation41.04 BTU/hr (220 V/50 Hz), with no PoE load 1067.04 BTU/hr (220 V/50 Hz), with PoE full load

Environment and Reliability

Surge protectionService port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode

IP ratingIP40

Operating temperature-40℃ to +75℃ (–40°F to +167°F)

Storage temperature–40°C to +85°C (–40°F to +185°F)

Operating humidity10% RH to 90% RH (non-condensing)

Storage humidity5% RH to 95% RH (non-condensing)

FanFanless design

CoolingNatural cooling

Altitude–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

MTBF200,000 hours

ESD protectionAir discharge: 15 kV Contact discharge: 8 kV

Basic Configurations

PoE watchdogYes

Online upgradeYes

Interface

Jumbo frame length (MTU)Yes

EEEYes

Cable testYes

Ethernet Switching

Maximum number of VLANs-

Maximum number of MAC address entries-

VLAN configuration supported on LAN portsYes

IEEE 802.1Q VLANYes

Static MAC addressYes

Interface flow controlYes

Inbound or outbound rate limiting based on interface trafficYes

ERPSYes

Maximum number of devices supported by a single ring50

Layer 2 traffic convergence time50 ms

IP Service

DNS clientYes

DHCP clientYes

Security

Port isolationYes

Broadcast storm controlYes

Multicast storm controlYes

Unknown unicast storm controlYes

CPU Protection PolicyYes

DHCP snoopingYes

Network Management and Monitoring

Web managementYes

Cloud managementYes

App managementYes

MirroringYes

Self-Organizing NetworkYes

Camera detectionYes

Certification and Regulatory Compliance

NDAA ComplaintYes

EMCEN 55032 EN 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386

Safety complianceEN 62638-1

CertificationFCC, IC

Device

Device1

Manual

User Manual1

Warranty Card1

Accessories

Rubber pad-

Power cord retention clip-

Screw4 x M3 x 5 mm cross recessed countersunk head screws

Grounding cable-

Power cord-

Rack-mount bracket2
