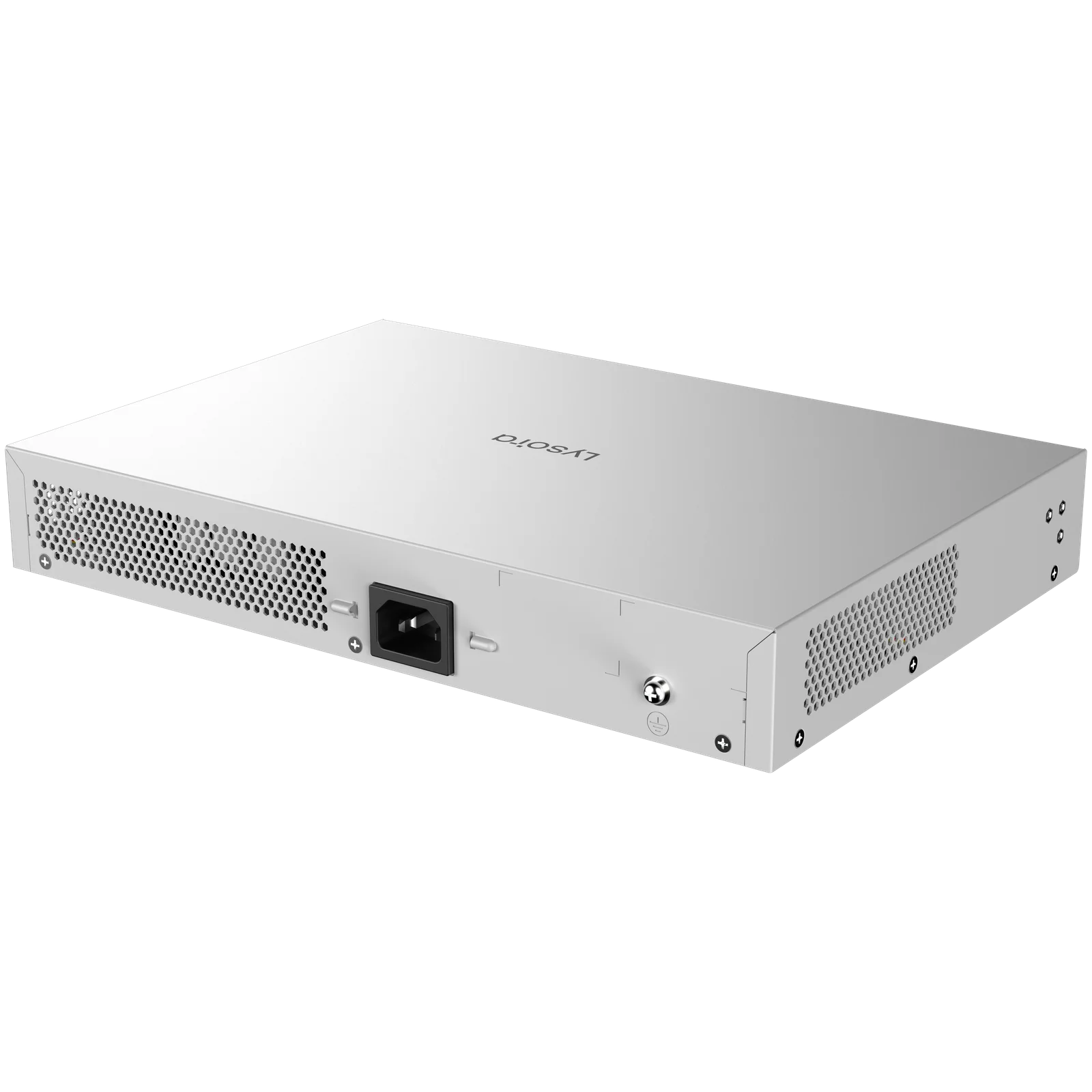

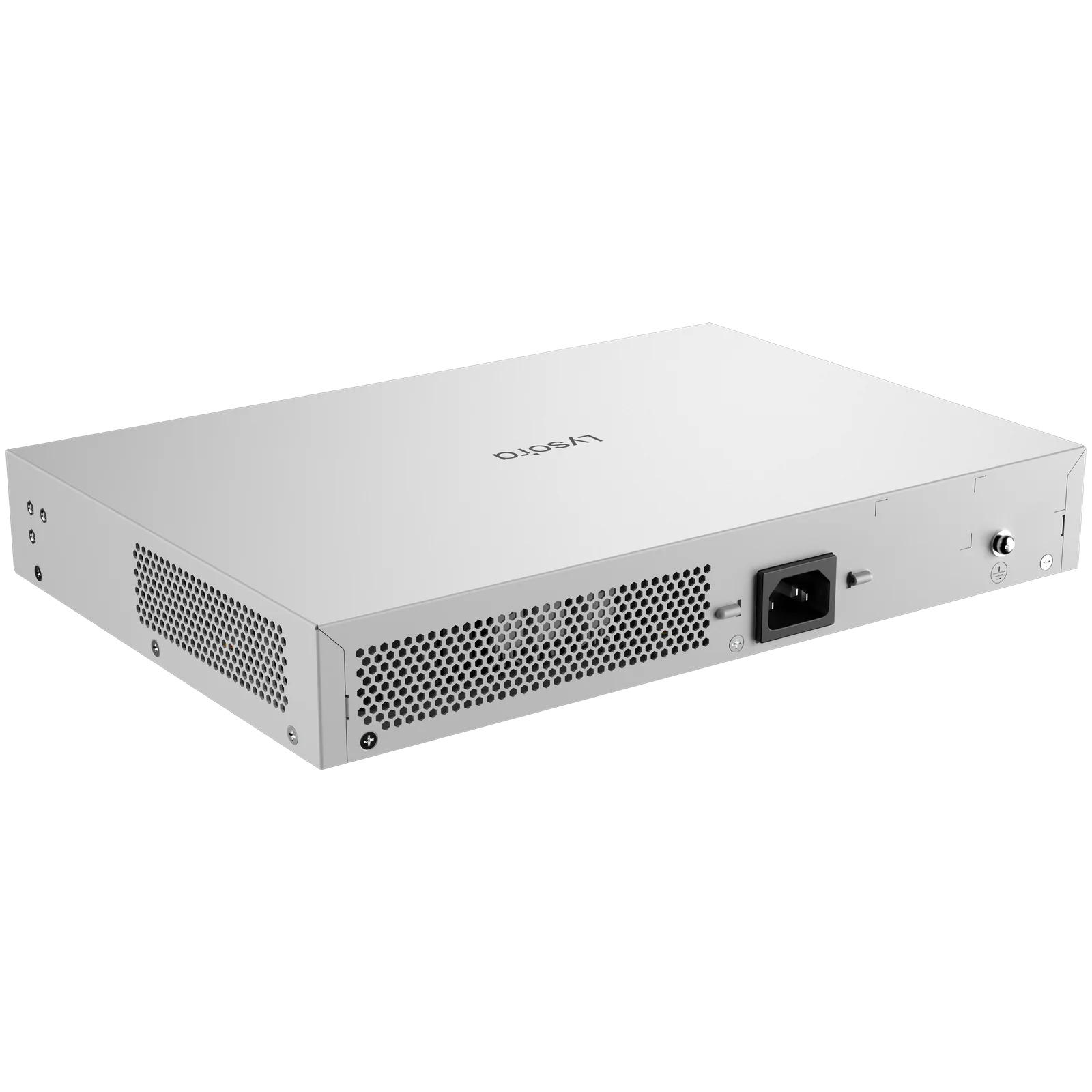

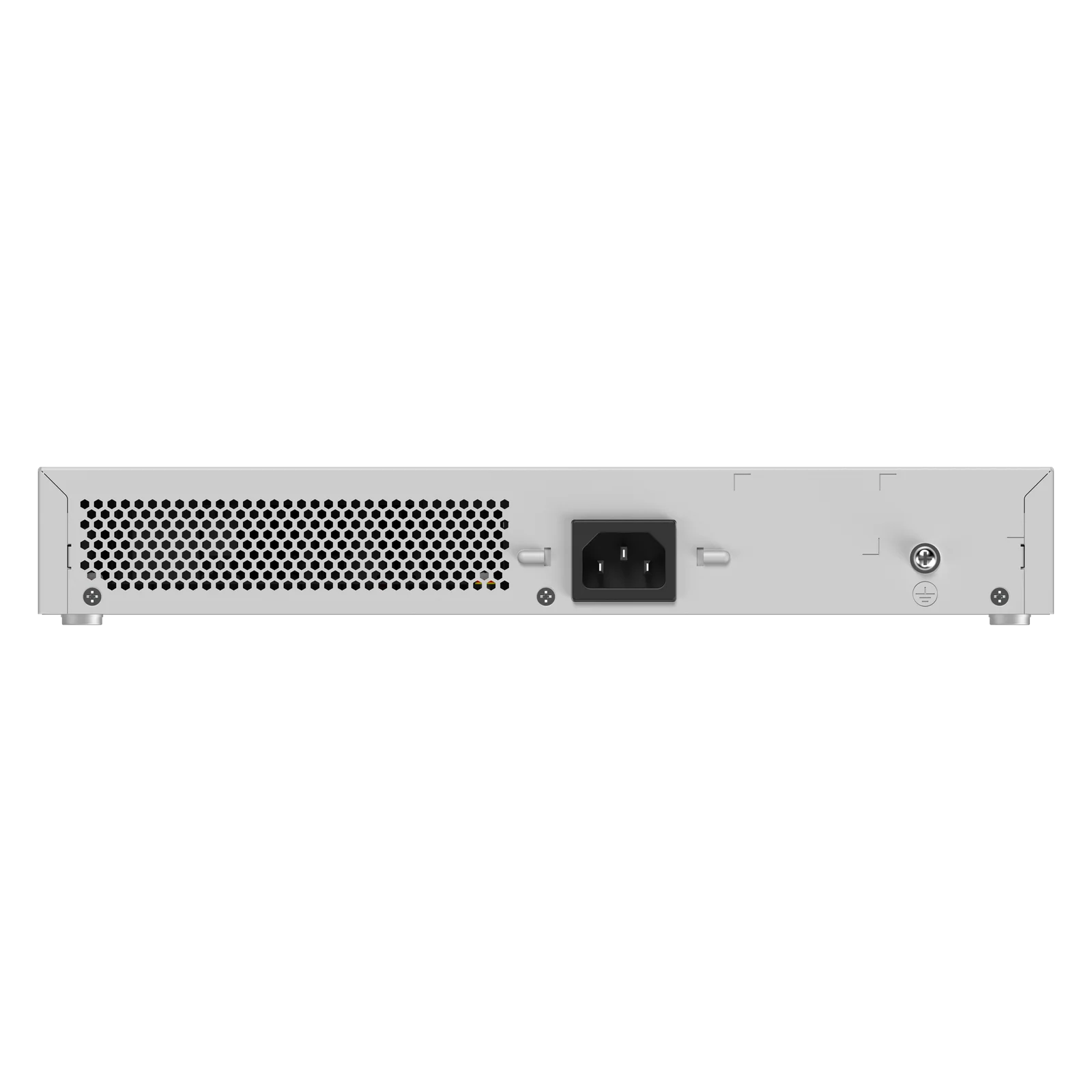

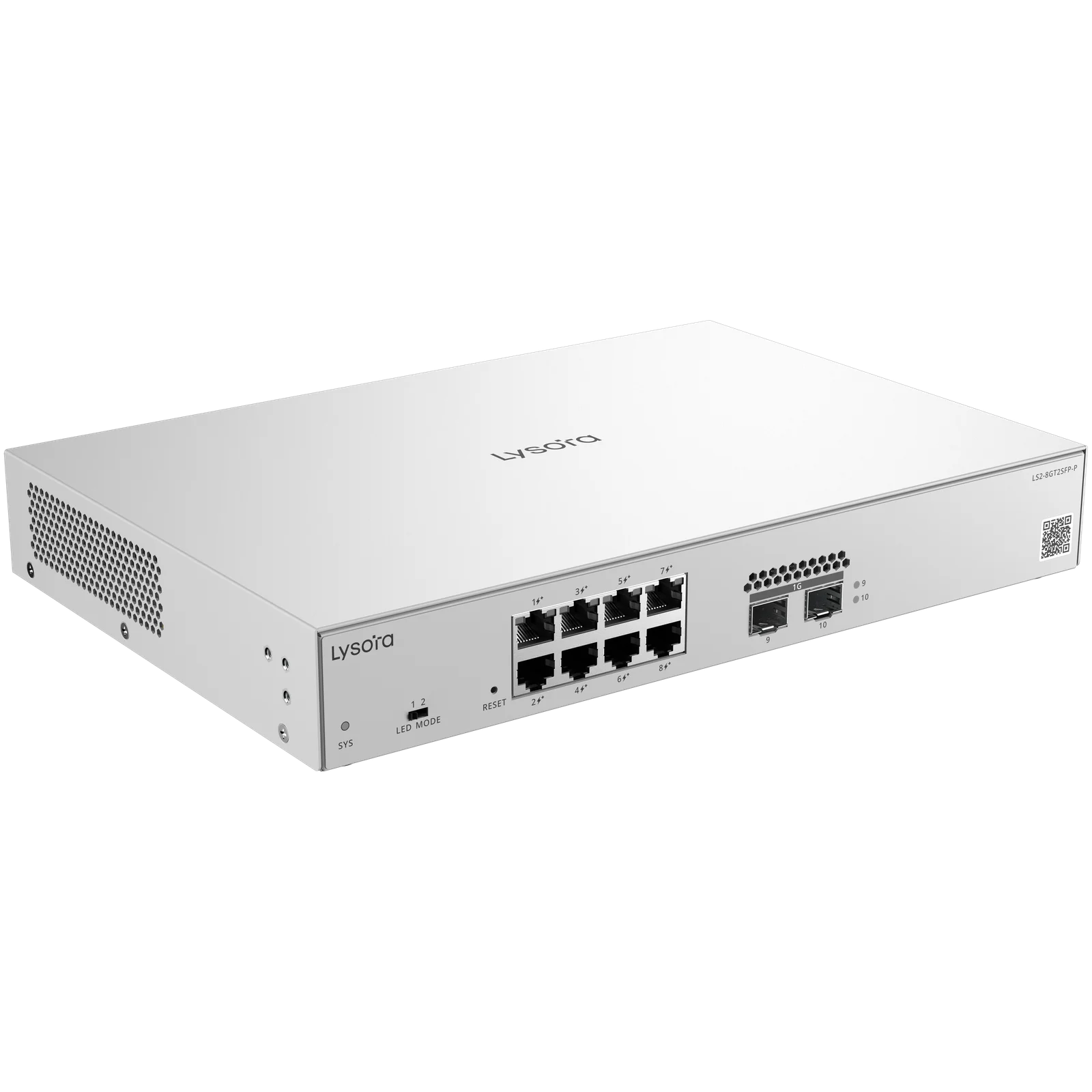

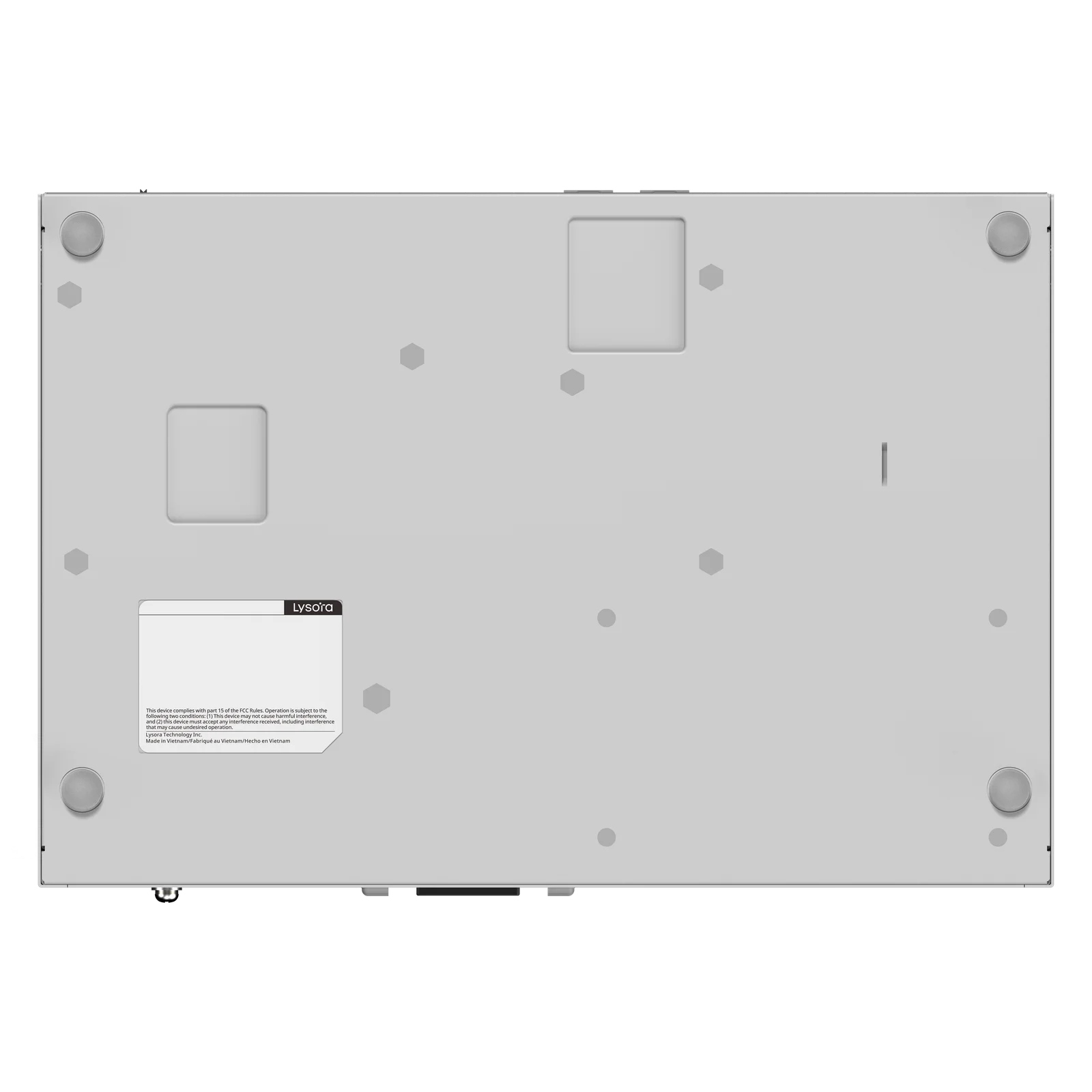

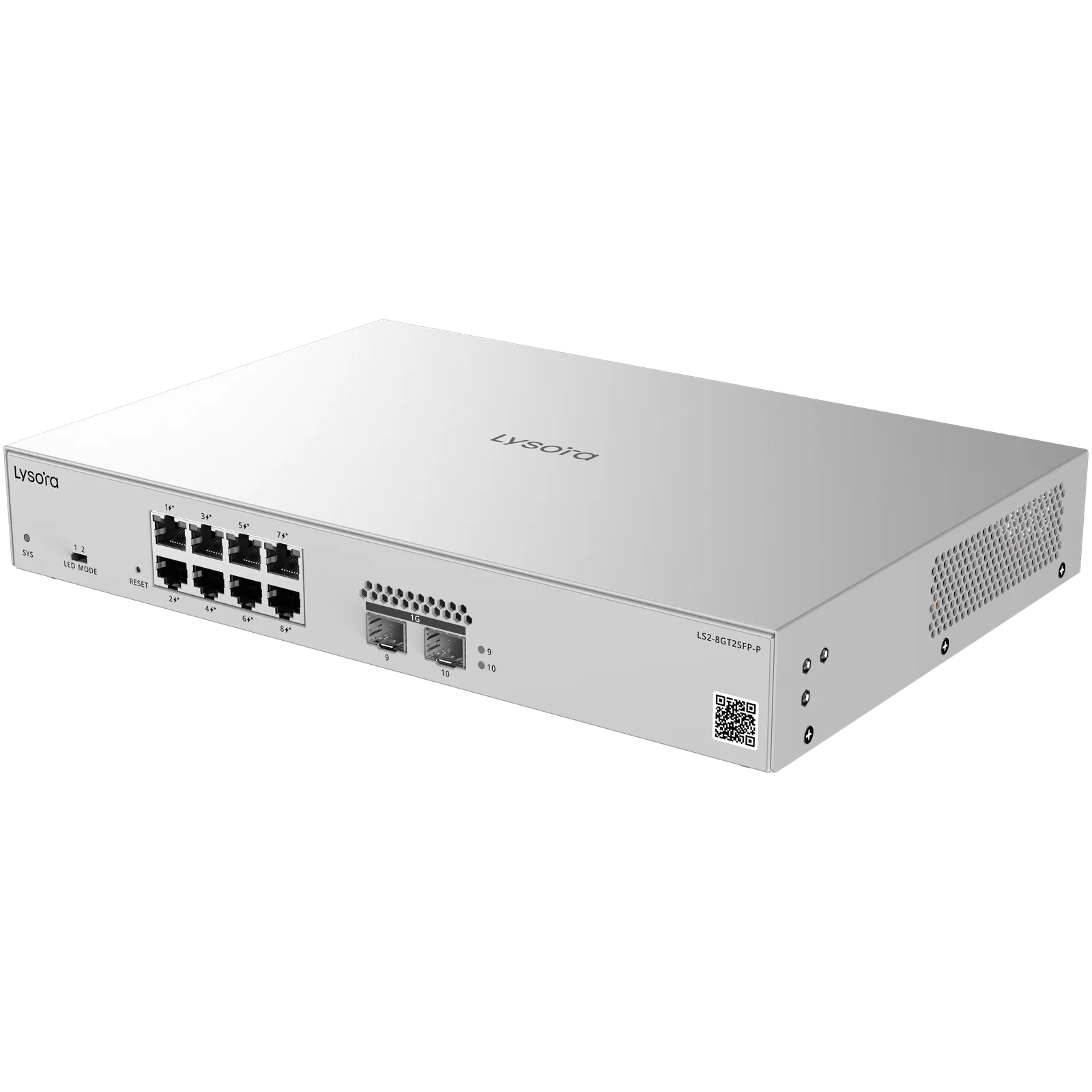

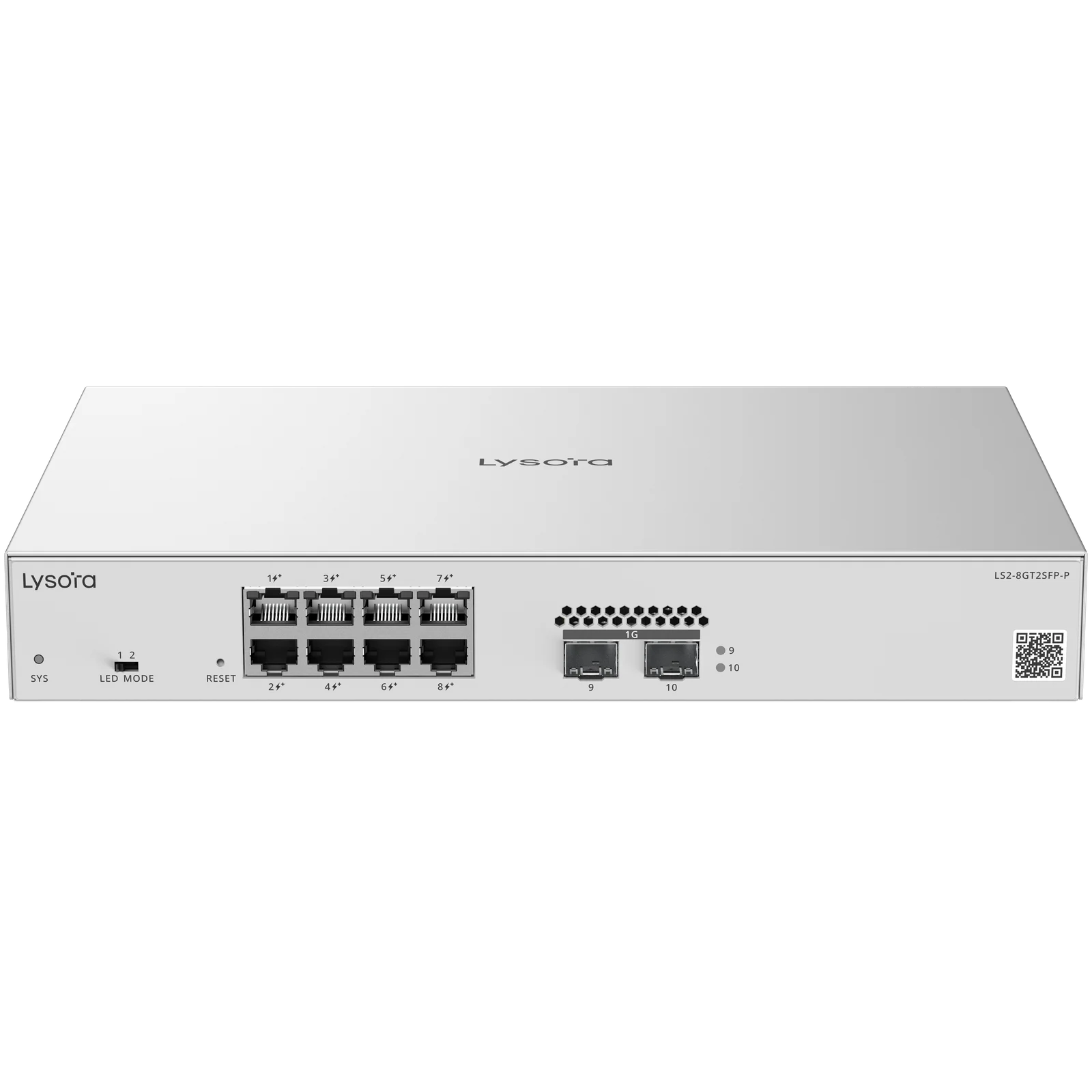

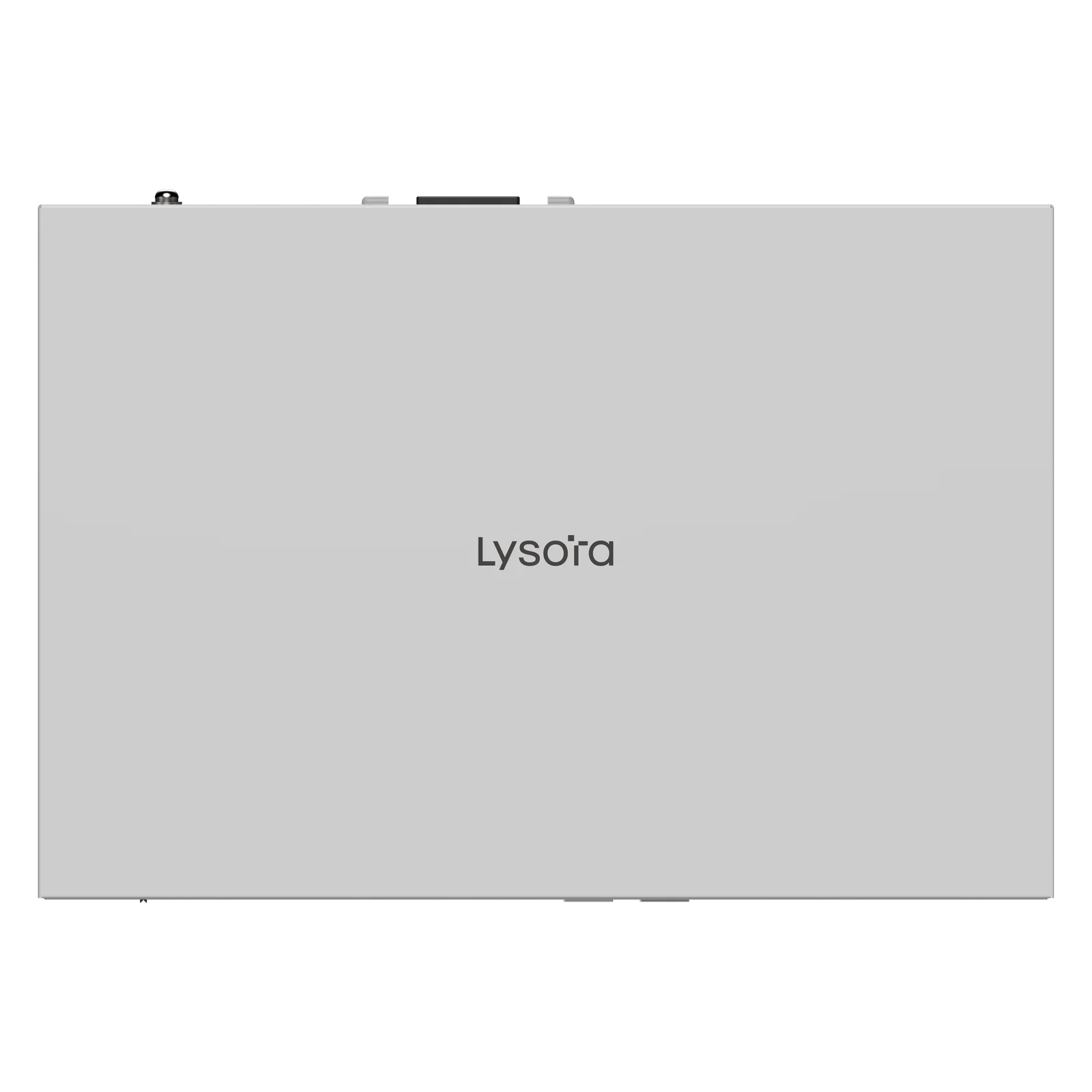

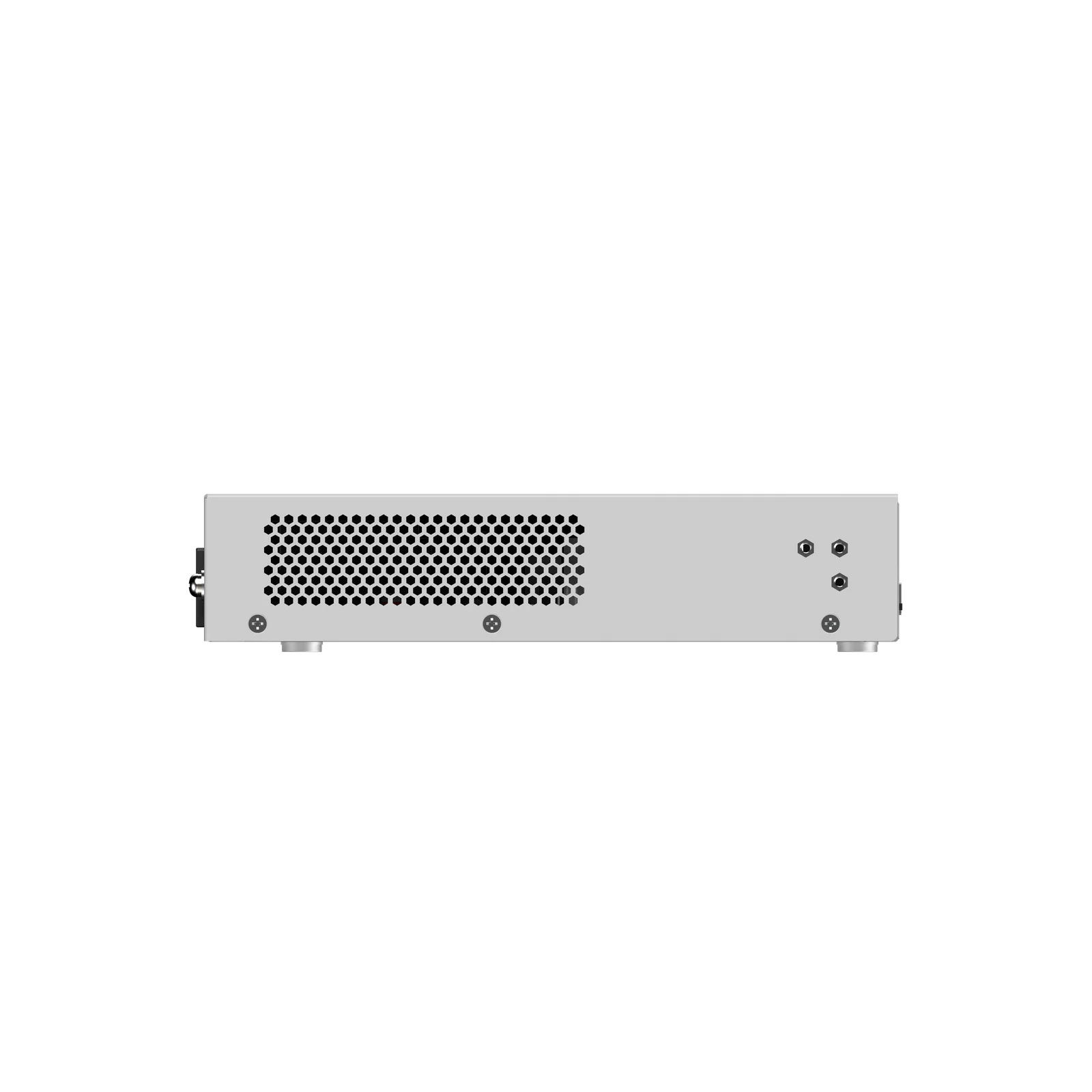

LS2-8GT2SFP-P primary image

Switches

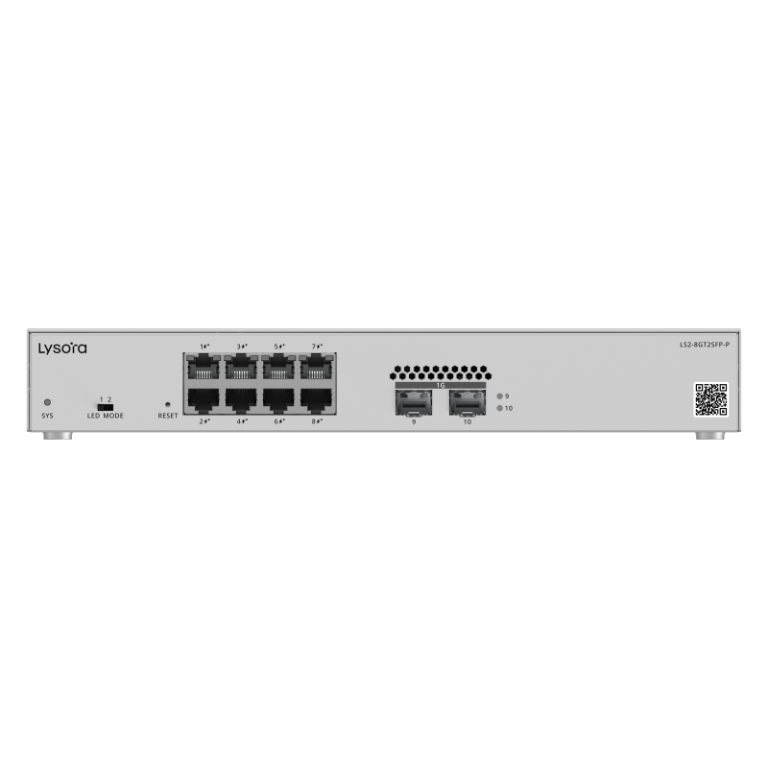

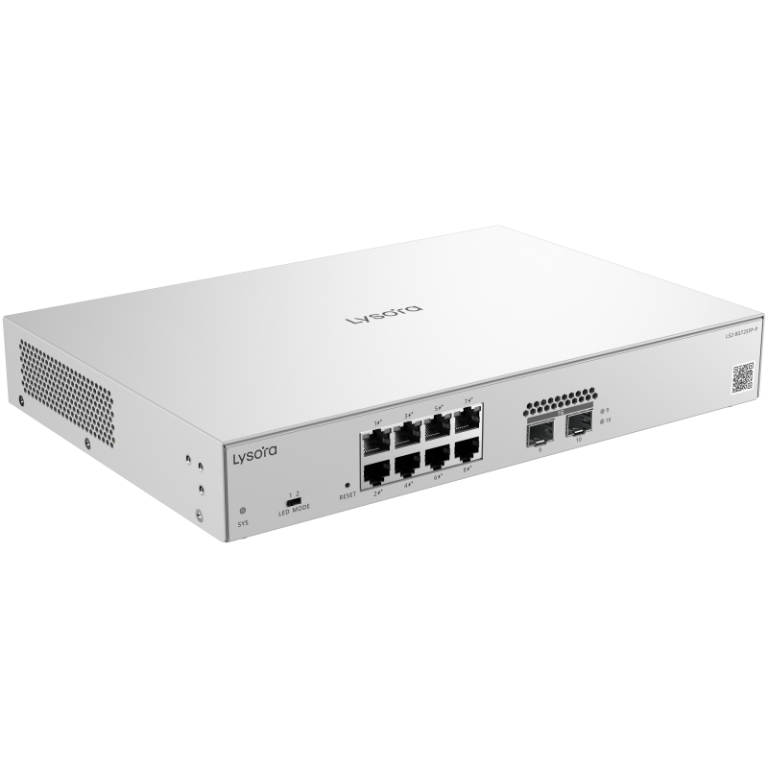

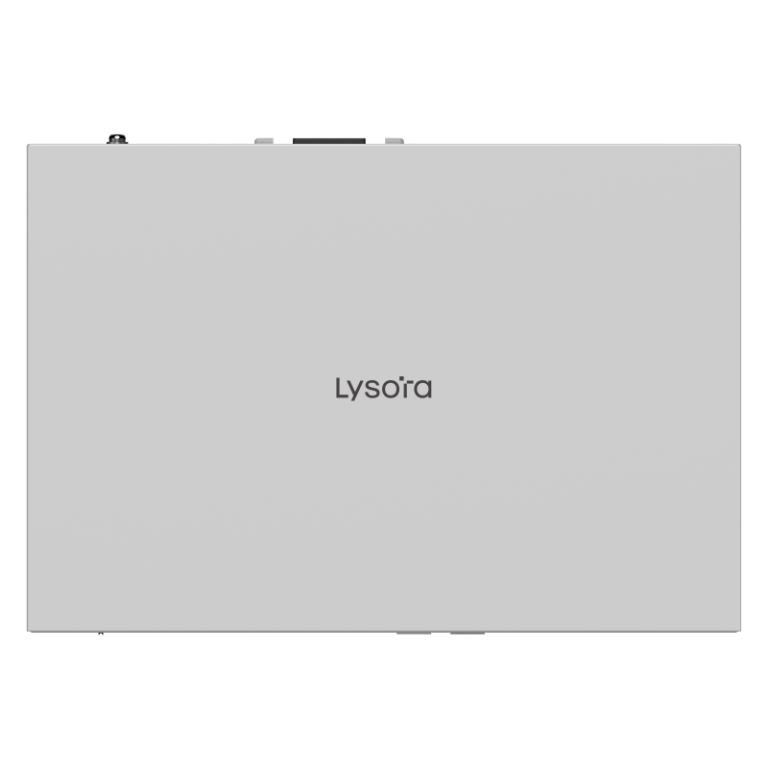

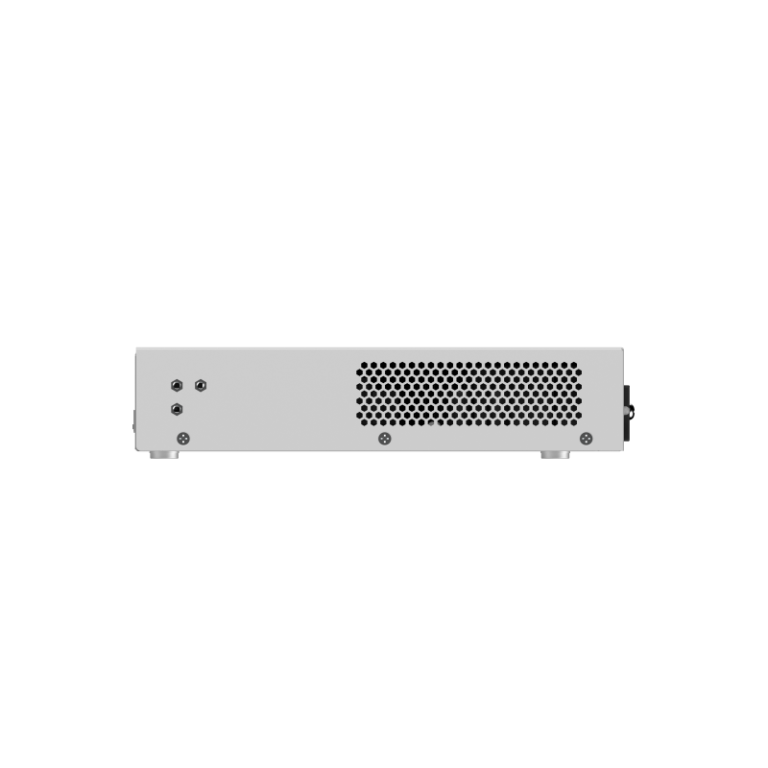

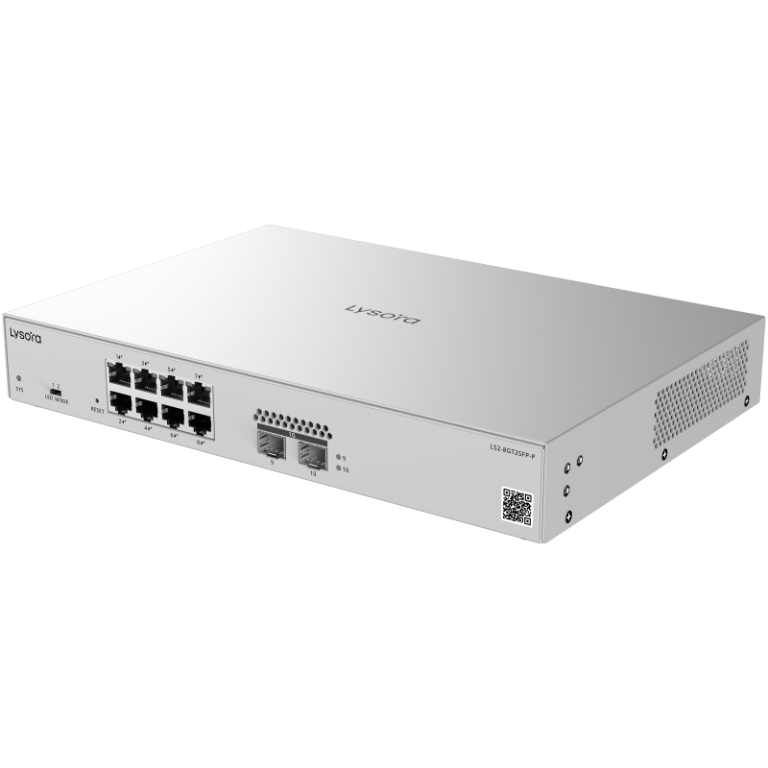

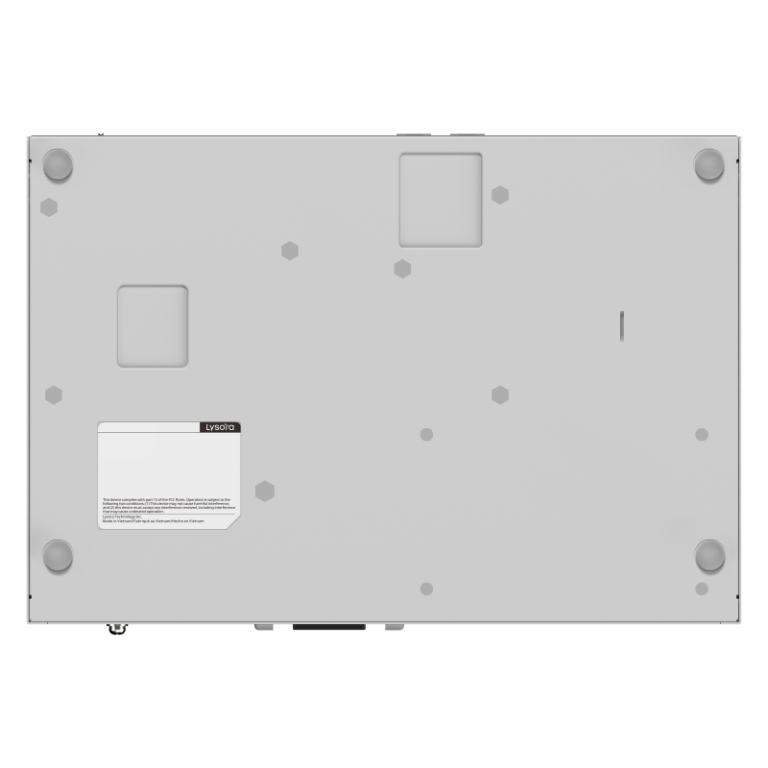

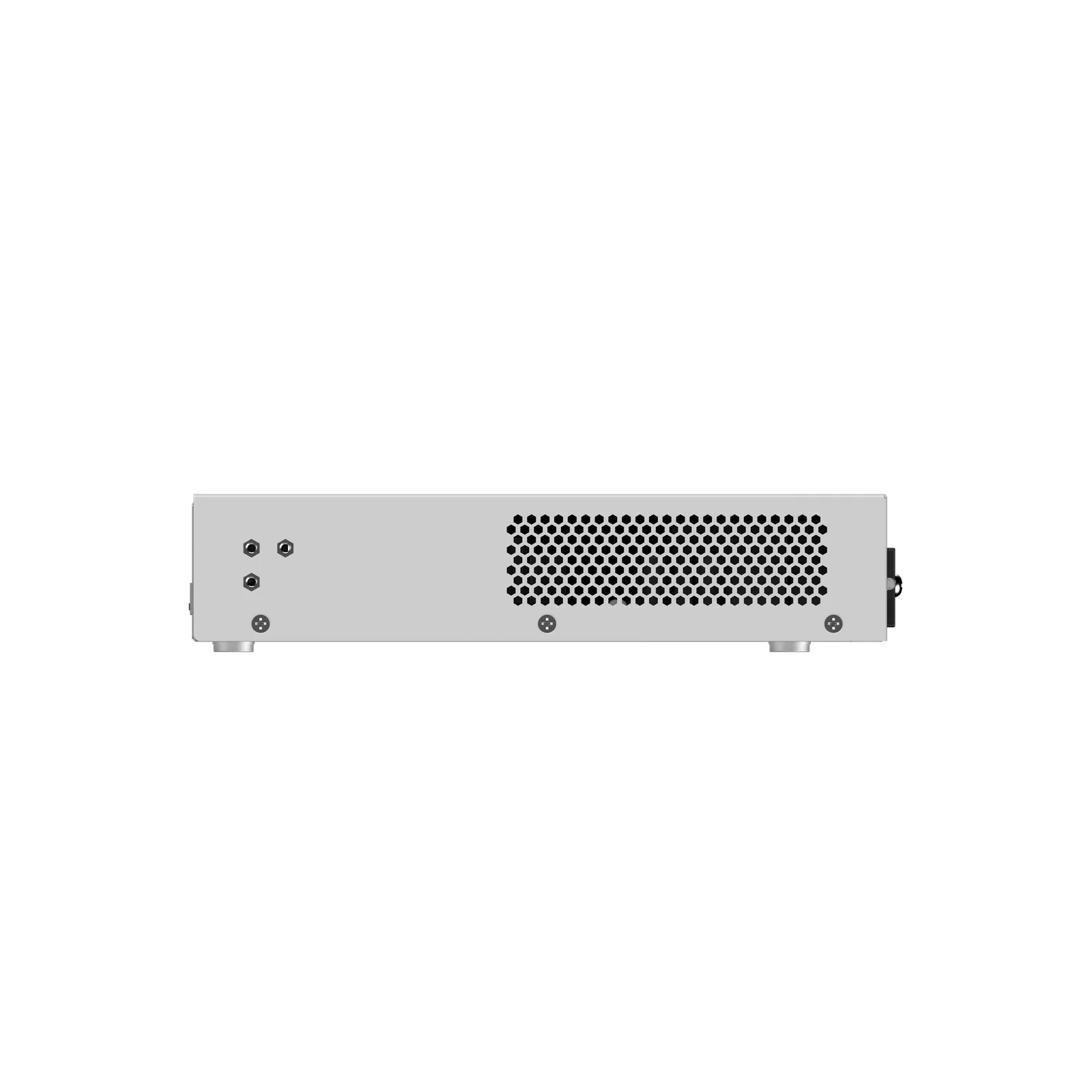

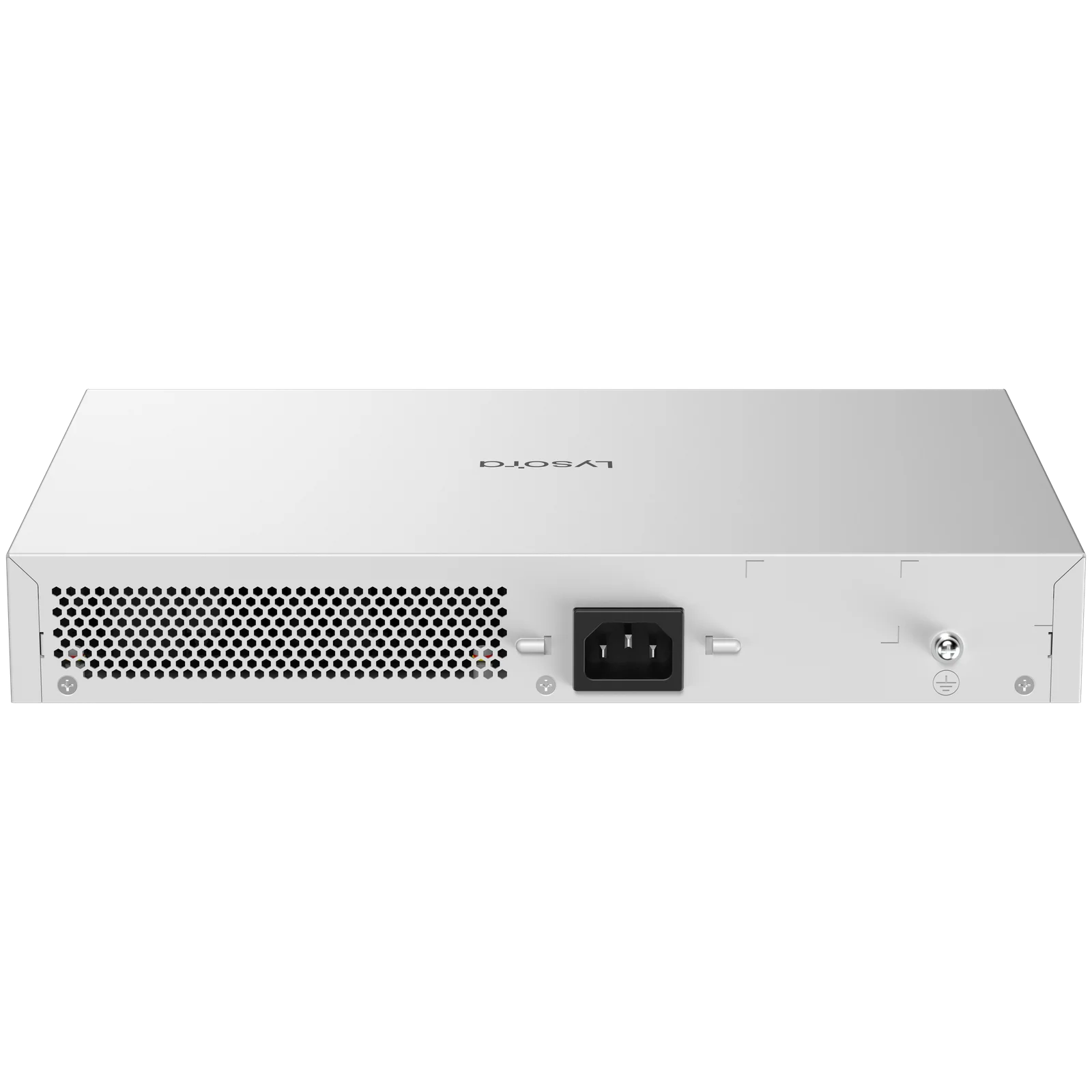

LS2-8GT2SFP-P

8-Port Layer 2 Managed PoE Switch with 125 W PoE Budget

  • 8-Port Gigabit L2 Managed POE Switch
  • 8 Gigabit RJ45 POE/POE+ Ports
  • 2 SFP Slots
  • 125W PoE Power budget
  • Desktop Steel Case
Saved products

Technical details

Specifications

151 specification rows
Dimensions300 mm x 205 mm x 44 mm (11.81 in. x 8.07 in. x 1.73 in.)
Weight2.50 kg (5.51 lbs)(with packaging materials) 1.80 kg (3.97 lbs) (without packaging materials)

Port Specifications

Total number of RJ45 ports8
Total number of optical ports2
Number of 1GE combo ports-
Number of 1GE SFP ports2
Number of 10GE SFP+ ports-
Number of 10/100BASE-T ports-
Number of 10/100/1000BASE-T ports8
Number of 10/100/1000/2500BASE-T ports-
Number of 100/1000/2.5G/5G/10GBASE-T ports-

PoE Specifications

Number of PoE/PoE+ Out ports8
Number of PoE/PoE+/PoE++ Out ports-
PoE budget125 W
PoE power pins1–2 (+), 3–6 (-)
CasingMetal
MountingRack/Desk
Warranty3 years

System Specifications

Switching capacity20 Gbps(bit/s)
Forwarding rate14.88 Mpps
Buffer size4.1 Mbit
CPUMAC chip, single-core processor, 500 MHz clock frequency
RAM512 MB
Flash memory16 MB

System Performance Capacity

Recommended camera limit200 W H265: 80 400 W H265: 40

Power supply and Consumption

Power Method220 V AC power supply: ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Maximum input current: 2.5 A
Max. Power Consumption11 W (with no PoE load) 145 W (with full PoE load)
Heat DissipationNo PoE load: 37.62 BTU/hr (220V/50Hz) Full PoE load: 495.9 BTU/hr (220V/50Hz)

Environment and Reliability

Surge protectionService port: ±6 kV for common mode Power connector: ±6 kV for both common mode and differential mode
Operating temperature0°C to +50°C (32°F to 122°F)
Storage temperature–40°C to +70°C (–40°F to +158°F)
Operating humidity10% RH to 90% RH (non-condensing)
Storage humidity5% RH to 95% RH (non-condensing)
FanFanless design
CoolingNatural cooling
AltitudeOperating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF400,000 hours
ESD protectionContact discharge: 6 kV Air discharge: 8 kV

Ethernet Switching

Maximum number of VLANs4094
Maximum number of MAC address entries8000
Interface flow controlYes
MAC address-based VLANNo
IP subnet–based VLAN assignmentNo
Port-based VLANYes
IEEE 802.1Q VLANYes
Basic QinQNo
Voice VLANYes
STP,RSTP,MSTPYes
LLDP/LLDP-MEDYes
Static MAC addressYes
MAC address filteringYes
Static aggregationYes
LACPYes
Inbound or outbound rate limiting based on interface trafficYes

IP Service

Maximum number of ARP entries1000
IPv4 routing table size (host route)-
ARPYes
IPv4 pingYes
IPv4 tracerouteYes
ICMPv6Yes
IPv6 pingYes
IPv6 tracerouteYes
DNS clientYes
DNSv6 clientYes
DHCP relayYes
DHCP serverYes
DHCP clientYes

IP Routing

IPv4 static routeNo
Maximum number of IPv4 static routes-
IPv6 static routeNo
Maximum number of IPv6 static routes-
IPv4 routing table size (network route)-
IPv6 routing table size (network route)-
OSPFv2No
OSPFv3No

Multicast

IGMPv1 snoopingYes
IGMPv2 snoopingYes
Basic IGMPv3 snoopingYes
Full IGMPv3 snoopingNo
IGMP filteringYes
IGMPv1, v2, and v3No

ACL and QoS

Standard ACLYes
Extended ACLYes
802.1p priority-based traffic classificationYes
DSCP priority-based traffic classificationYes
Egress queues based on 802.1p and DSCP prioritiesYes
Egress queues based on IP precedencesNo
Ingress flow-based rate limitingNo
Queue schedulingYes
DRRNo
SPYes
SP+DRRNo
SP+WFQNo
SP+WRRYes
WFQNo
WRRYes
Congestion avoidance: tail dropYes

Security

802.1X authenticationYes
Inaccessible Authentication Bypass (IAB)Yes
MAC address-based 802.1X authenticationYes
Port-based 802.1X authenticationYes
Authentication, Authorization, and Accounting (AAA)No
RadiusNo
Port isolationYes
Broadcast storm controlYes
Multicast storm controlYes
Unknown unicast storm controlYes
DHCP snoopingYes
IP-MAC-port bindingYes
ARP anti-spoofingYes
IP source guardYes
CPU Protection PolicyYes

Reliability

VCSNo
Number of VCS members-
DHCP server hot standby-
System dual backupNo
Cloud-based auto-recoveryYes
Loop PrevetionYes

Network Management and Monitoring

Web managementYes
Cloud managementYes
App managementYes
MirroringYes
Self-Organizing NetworkYes
Fan speed adjustment-
HTTPS loginYes
RLOGYes
SyslogYes
PoE service failureYes
PoE power overloadYes
SNMPv1, v2c, and v3Yes
NTP clientYes
Camera detectionYes

Basic Configurations

PoE watchdogYes
Local upgradeYes
Online upgradeYes

Interface

Jumbo frame length (MTU)9216 bytes (global configuration mode)
EEEYes
Cable testYes

Certification and Regulatory Compliance

NDAA ComplainYes
EMCFCC 47 CFR Part 15 Subpart B ICES-003 Issue 7
Safety complianceUL 62368-1:2019
CertificationFCC, IC, cTUVus

Device

Device1

Manual

User Manual1
Warranty Card1

Accessories

Rubber pad4
Power cord retention clip1
Screw6 M3 x 6 mm cross recessed countersunk head screws
Grounding cable1 x 1 m (3.28 ft.)
Power cord1 x 1.5 m (4.92 ft.)
Rack-mount bracket2
