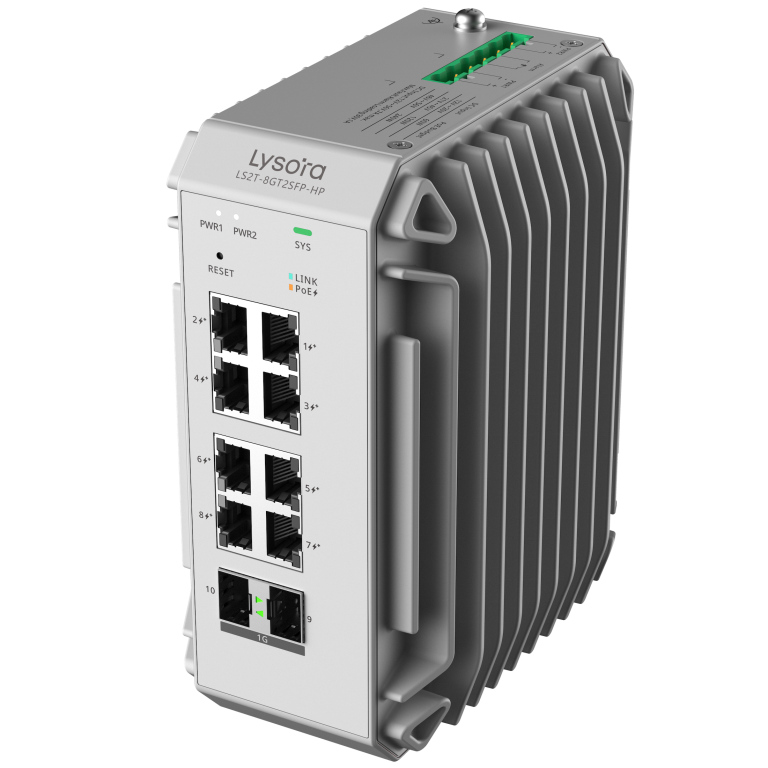

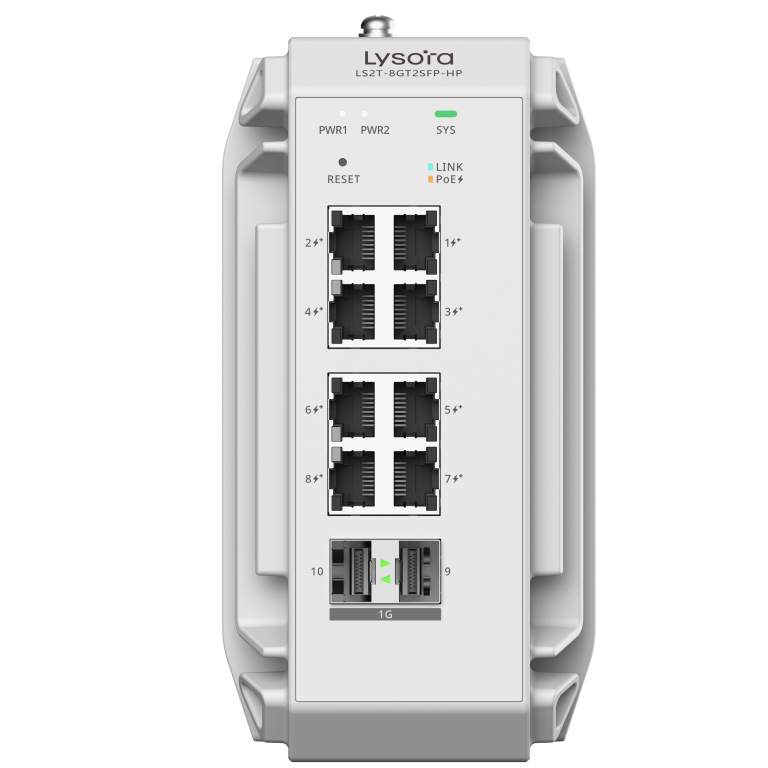

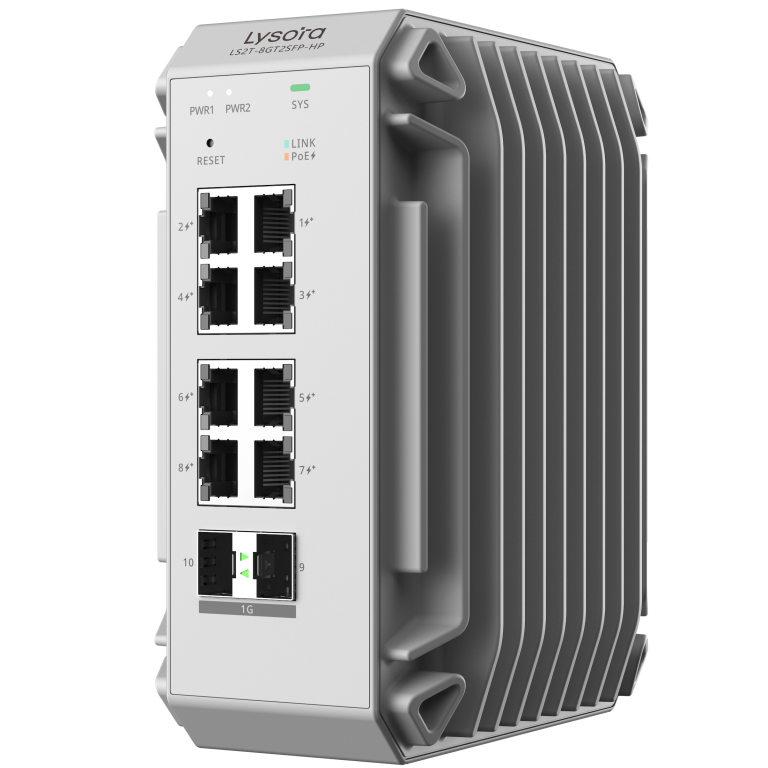

LS2T-8GT2SFP-HP primary image

Switches

LS2T-8GT2SFP-HP

8-Port Industrial Layer 2 Managed PoE Switch with 2 x SFP Ports

  • L2 Industrial Managed Switch
  • 8-Port RJ45 Gigabit PoE/PoE+
  • 2-Port SFP
  • 240W PoE Power budget
Saved products

Technical details

Specifications

153 specification rows
Dimensions85 mm x 132 mm x 165 mm (3.35 in. x 5.2 in. x 6.5 in.)
Weight1.91 kg (4.21 lbs) (with packaging materials) 1.42 kg (3.13 lbs) (without packaging materials)

Port Specifications

Total number of RJ45 ports8
Total number of optical ports2
Number of 1GE combo ports-
Number of 1GE SFP ports2
Number of 10GE SFP+ ports-
Number of 10/100BASE-T ports-
Number of 10/100/1000BASE-T ports8
Number of 10/100/1000/2500BASE-T ports-
Number of 100/1000/2.5G/5G/10GBASE-T ports-

PoE Specifications

Number of PoE/PoE+ Out ports8
Number of PoE/PoE+/PoE++ Out ports-
PoE budget240 W
PoE power pins1–2 (+), 3–6 (-)
Enclosure MaterialMetal

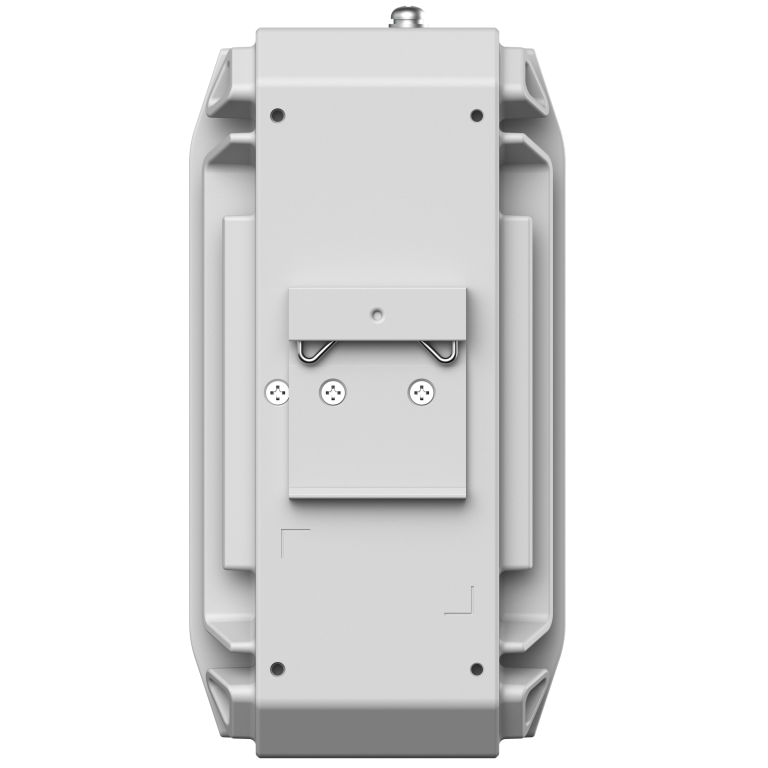

MountingDIN rail/Wall
Warranty3 years

System Specifications

Switching capacity20 Gbps(bit/s)
Forwarding rate14.88 Mpps
Buffer size4.1 Mbit
CPUSingle-core processor, 500 MHz clock frequency
RAM256 MB
Flash memory16 MB

System Performance Capacity

Recommended camera limit200 W H265: 80 400 W H265: 40

Power supply and Consumption

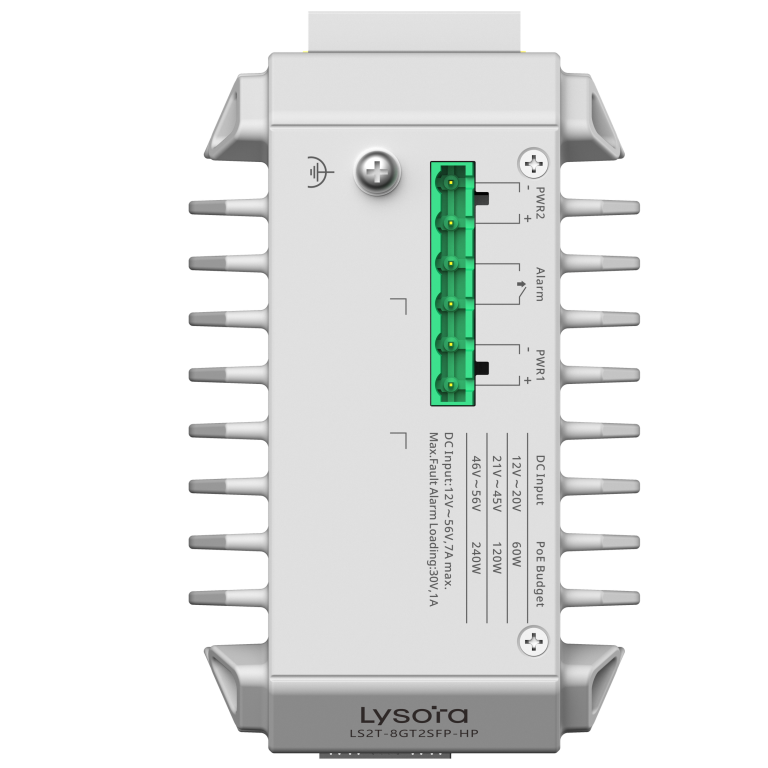

Power MethodDC power input: Rated input voltage: 12 V DC to 56 V DC Maximum input current: 7 A
Power Supply● DC power adapter ● Power module (Not included / Sold separately)
Max. Power Consumption20 W (with no PoE load) 80 W (full-load power when the input power is 12 V to 20 V) 140 W (full-load power when the input power is 21 V to 45 V) 260 W (full-load power when the input power is 46 V to 56 V)
Heat DissipationNo PoE load: 68.4 BTU/hr (12 V DC to 56 V DC) Full PoE load: 273.6 BTU/hr (input: 12 V to 20 V) 478.8 BTU/hr (input: 21 V to 45 V) 889.2 BTU/hr (input: 46 V to 56 V)

Environment and Reliability

Surge protectionService port: ±6 kV for common mode Power connector: ±4 kV for common mode and ±2 kV for differential mode
IP ratingIP40
Operating temperature-40ºC to +65ºC (-40°F to 149°F) (installed in a sealed cabinet) -40ºC to +70ºC (-40°F to 158°F) (installed in a fume hood with a ventilation speed of at least 80LFM (Line Feet Minute)) -40ºC to +75ºC (-40°F to 167°F) (installed in a fume hood with a ventilation speed of at least 200LFM (Line Feet Minute)) -40ºC to +80ºC (-40°F to 176°F) (installed in a fume hood with a ventilation speed of at least 400LFM (Line Feet Minute))
Storage temperature–40°C to +75°C (–40°F to +167°F)
Operating humidity5% RH to 95% RH (non-condensing)
Storage humidity5% RH to 95% RH (non-condensing)
FanFanless design
CoolingNatural cooling
AltitudeOperating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF400,000 hours
ESD protectionContact discharge: 6 kV Air discharge: 8 kV

Ethernet Switching

Maximum number of VLANs4094
Maximum number of MAC address entries8000
Interface flow controlYes
MAC address-based VLANNo
IP subnet–based VLAN assignmentNo
Port-based VLANYes
IEEE 802.1Q VLANYes
Basic QinQNo
Voice VLANYes
STP,RSTP,MSTPYes
LLDP/LLDP-MEDYes
Static MAC addressYes
MAC address filteringYes
Static aggregationYes
LACPYes
Inbound or outbound rate limiting based on interface trafficYes

IP Service

Maximum number of ARP entries1000
IPv4 routing table size (host route)-
ARPYes
IPv4 pingYes
IPv4 tracerouteYes
ICMPv6Yes
IPv6 pingYes
IPv6 tracerouteYes
DNS clientYes
DNSv6 clientYes
DHCP relayNo
DHCP serverNo
DHCP clientYes

IP Routing

IPv4 static routeNo
Maximum number of IPv4 static routes-
IPv6 static routeNo
Maximum number of IPv6 static routes-
IPv4 routing table size (network route)-
IPv6 routing table size (network route)-
OSPFv2No
OSPFv3No

Multicast

IGMPv1 snoopingYes
IGMPv2 snoopingYes
Basic IGMPv3 snoopingYes
Full IGMPv3 snoopingNo
IGMP filteringYes
IGMPv1, v2, and v3No

ACL and QoS

Standard ACLYes
Extended ACLYes
802.1p priority-based traffic classificationYes
DSCP priority-based traffic classificationYes
Egress queues based on 802.1p and DSCP prioritiesYes
Egress queues based on IP precedencesNo
Ingress flow-based rate limitingNo
Queue schedulingYes
DRRNo
SPYes
SP+DRRNo
SP+WFQNo
SP+WRRYes
WFQNo
WRRYes
Congestion avoidance: tail dropYes

Security

802.1X authenticationYes
Inaccessible Authentication Bypass (IAB)Yes
MAC address-based 802.1X authenticationYes
Port-based 802.1X authenticationYes
Authentication, Authorization, and Accounting (AAA)No
RadiusNo
Port isolationYes
Broadcast storm controlYes
Multicast storm controlYes
Unknown unicast storm controlYes
DHCP snoopingYes
IP-MAC-port bindingYes
ARP anti-spoofingYes
IP source guardYes
CPU Protection PolicyYes

Reliability

VCSNo
Number of VCS members-
DHCP server hot standby-
System dual backupNo
Cloud-based auto-recoveryYes
Loop PrevetionYes

Network Management and Monitoring

Web managementYes
Cloud managementYes
App managementYes
MirroringYes
Self-Organizing NetworkYes
Fan speed adjustment-
HTTPS loginYes
RLOGYes
SyslogYes
PoE service failureNo
PoE power overloadNo
SNMPv1, v2c, and v3Yes
NTP clientYes
Camera detectionYes

Basic Configurations

PoE watchdogNo
Local upgradeYes
Online upgradeYes

Interface

Jumbo frame length (MTU)9216 bytes (global configuration mode)
EEEYes
Cable testYes

Certification and Regulatory Compliance

NDAA ComplaintYes
EMCFCC 47 CFR Part 15 Subpart B ICES-003 Issue 7
Safety complianceUL 62368-1:2019
CertificationFCC, IC, cTUVus

Device

Device1

Manual

User Manual1
Warranty Card1

Accessories

Rubber pad-
Power cord retention clip-
Screw4 M3 x 6 mm cross recessed countersunk head screws
Grounding cable-
Power cord-
Rack-mount bracket2
